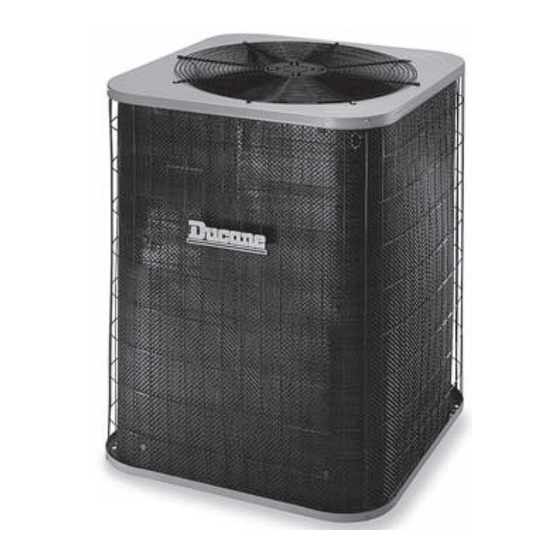

Split System Air Conditioner
L & LC Models
2A C14
Features and Benefits
• Durable compressors with
internal pressure relief
valves and inherent thermal
protection
• High-quality condenser coil
with copper tubing and
enhanced louvered fin for
maximum heat transfer
capacity
• Top discharge directs hot
air and sound away from
living area and shrubbery
• All units are factory run
tested
• Available with louvered
panel or wire guard coil
protection option
• Easy access to electrical
panels, pre-wired for easy
hook-up
B & BC Models
14
• Hinged control panel allows
simple access to internal
components
• 45-degree service valves for
easy hook-up and service
• Liquid line filter drier
installed in every unit
• All units ETL, ETLC approved
and ARI listed
• Charged for 15 feet of
interconnecting tubing
• Select models meet 76dBA
and include compressor
sound blanket
• Warranties:
10 year limited parts warranty
available (5 year compressor).
See limited warranty document
for details.
seer
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ducane 2AC14
Summary of Contents for Ducane 2AC14
- Page 1 Split System Air Conditioner 2A C14 • Durable compressors with internal pressure relief valves and inherent thermal protection • High-quality condenser coil with copper tubing and enhanced louvered fin for maximum heat transfer capacity • Top discharge directs hot air and sound away from living area and shrubbery • All units are factory run tested • Available with louvered panel or wire guard coil protection option • Easy access to electrical panels, pre-wired for easy hook-up L & LC Models B & BC Models Features and Benefits • Hinged control panel allows simple access to internal components • 45-degree service valves for easy hook-up and service • Liquid line filter drier installed in every unit • All units ETL, ETLC approved and ARI listed • Charged for 15 feet of interconnecting tubing • Select models meet 76dBA and include compressor sound blanket • Warranties:...
- Page 2 2AC14 Split System Air Conditioner Model Number Guide Refrigerant – 2 = R22 AC = Split Condensing Unit 14 - 14 SEER Nominal B = Wire Guard L = Louvered BC = Wire Guard + 76dBA LC = Louvered + 76dBA Electrical and Physical Data Voltage/ Hz/ Voltage Model...
- Page 3 E(C,H,U)1P62ND+TXV E(C,H,U)2T62ND ** = B, L, BC, LC Certified in accordance with Unitary Air Conditioner Certification Program, which is based on ARI Standard 210/240. Required to achieve ARI rating. * = B, L A blower time delay is required to achieve ARI rating.
- Page 4 E(C,M,U)1P36NA+TXV E(C,M,U)2T36NA ** = B, L, BC, LC Certified in accordance with Unitary Air Conditioner Certification Program, which is based on ARI Standard 210/240. * = B, L Required to achieve ARI rating. A blower time delay is required to achieve ARI rating. This feature is standard on all Allied Air Enterprises furnace and air handler products.
- Page 5 E(C,H,U)1P62NC+TXV E(C,H,U)2T62NC ** = B, L, BC, LC Certified in accordance with Unitary Air Conditioner Certification Program, which is based on ARI Standard 210/240. * = B, L Required to achieve ARI rating. A blower time delay is required to achieve ARI rating. This feature is standard on all Allied Air Enterprises furnace and air handler products.
- Page 6 E(C,H,U) 2AC14*60P 80/67 1P62NC+TXV 2T62NC 75/63 Accessories Description Used with Hard Start 2AC14**18, 24, 30, *42 Hard Start 2AC14**36, *48, *60 Low Pressure Switch All models High Pressure Switch All models Low Ambient All models Crankcase Heater 2AC14**18, 24, 30, *42...
