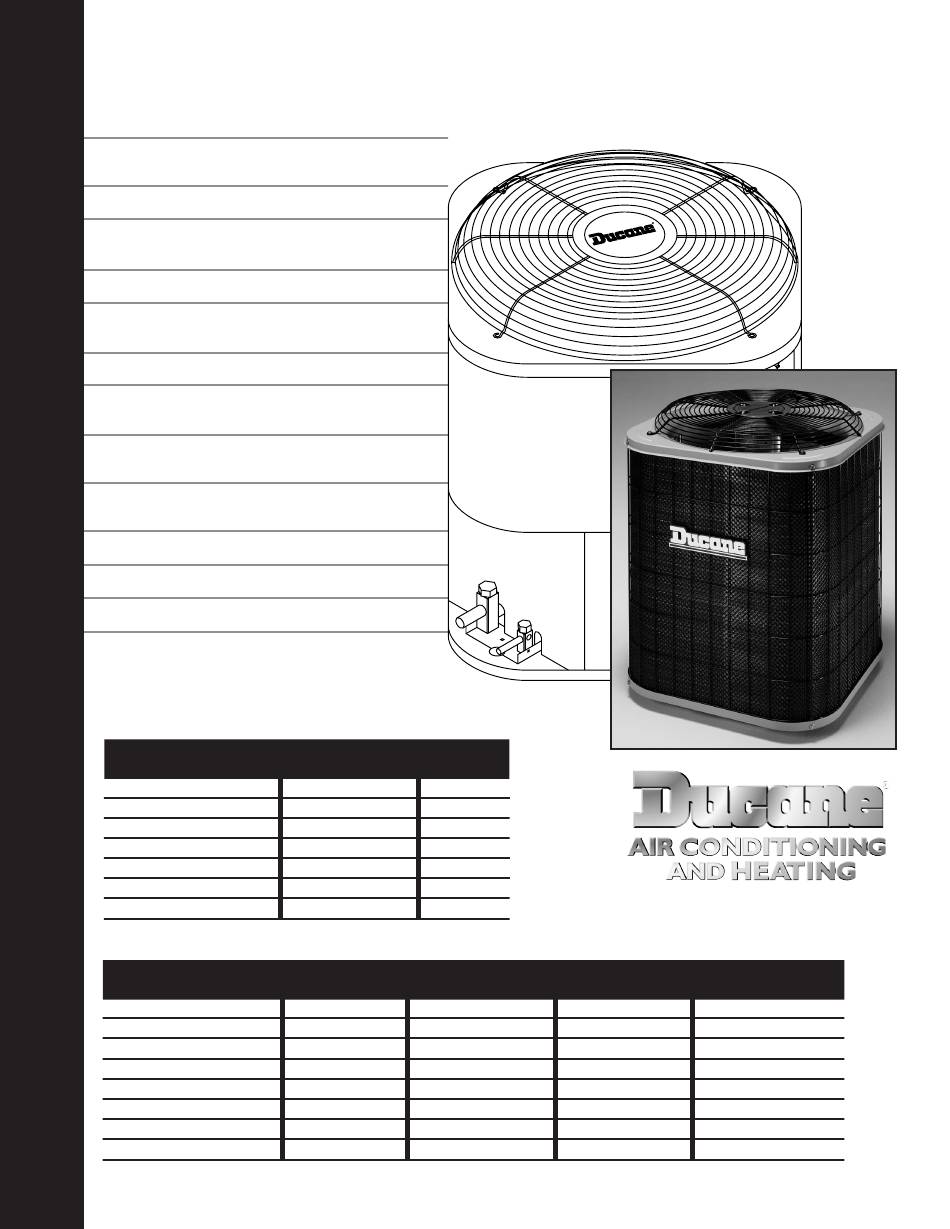

FEATURES
®
Durable Copeland
compressors, with internal pressure relief
valves and inherent thermal protection
High quality Ducane made condenser coil with copper tubing and
enhanced louvered fin for maximum heat transfer capability
Permanently lubricated condenser fan motor
Top discharge directs hot air and sound away from
living area and shrubbery
All units run tested
Heavy gauge, textured, pre-painted cabinet provides
corrosion and abrasion protection
Easy access to electrical panels, pre-wired for easy hook-up
Hinged control panel allows simple access to
internal components
Service valve gauge ports positioned to allow
plenty of access room
Warranties: 5 year parts; 5 year compressor
(see warranty certificate for details)
Liquid line filter drier installed in every unit
All units ETL, ETLC approved and ARI listed
Charged for 15 feet of interconnecting tubing
Crankcase heaters standard on all 3-phase models with
reciprocating compressors
UNIT DIMENSIONS
MODEL
NUMBER
AC10B18
AC10B24
AC10B30-A
AC10B36-B, 36TA, 36F
AC10B42-A
AC10B48-A, 48TA, 48FA
AC10B60-A, 60T, 60F
T = 208/230V 3 Phase; F = 460V 3 Phase.
OUTDOOR
UNIT
AC10B18
AC10B24
AC10B30-A
AC10B36-B, 36TA
AC10B42-A
AC10 B48-A, 48TA, 48FA
AC10B60-A
AC10B60T, 60F
Certified in accordance with the ARI Standard 210/240 certification program, which is based on ARI Standard 210/240.
SQUARE BASE
HEIGHT
(INCHES)
(INCHES)
22 1/2 x 22 1/2
23 1/2
22 1/2 x 22 1/2
23 1/2
22 1/2 x 22 1/2
23 1/2
22 1/2 x 22 1/2
27 1/2
22 1/2 x 22 1/2
31 1/2
22 1/2 x 22 1/2
31 1/2
30 x 30
27 1/2
INDOOR
AIRFLOW
SECTION
(SCFM)
ACC18AA
600
ACC24AA
800
ACC30AA
1000
ACC36BA
1200
ACC42BA
1400
ACC48CA
1500
ACC61CA
1800
ACC61CA + TDR
1800
D u c a n e A i r C o n d i t i o n e r
T H E D I F F E R E N C E I S Q U A L I T Y
www.ducanehvac.com
NET CAPACITY
(BTUH/HR)
(BTUH/WATT)
18,200
23,400
29,200
34,600
40,000
45,500
58,500
59,000
AC10B
®
SEER
10.20
10.00
10.20
10.00
10.00
10.00
10.00
10.00
Advertisement
Table of Contents
Related Manuals for Ducane AC10B24
Summary of Contents for Ducane AC10B24
-
Page 1: Unit Dimensions
AC10B valves and inherent thermal protection High quality Ducane made condenser coil with copper tubing and enhanced louvered fin for maximum heat transfer capability Permanently lubricated condenser fan motor Top discharge directs hot air and sound away from... -
Page 2: Unit Specifications
® T H E D I F F E R E N C E I S Q U A L I T Y For more information, contact your local Ducane distributor. DUE TO OUR POLICY OF CONTINOUS IMPROVEMENT, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. - Page 3 SPLIT SYSTEM AIR CONDITIONER AND HEAT PUMP INSTALLATION / START-UP INFORMATION These instructions must be read and understood completely before attempting installation. ISSUE 0144 These units are designed for use in residential and commercial type buildings with a wide variety of Furnace/Air Handlers and Evaporator Coil combinations. Air-conditioners can be used with conventional forced warm air heating systems and/or straight cooling systems independent of the heating.
- Page 4 Safety Precautions DO NOT LOCATE THE UNIT: 1. Always wear safety eye wear, work gloves and • on brick, concrete blocks or unstable surfaces. protective clothing when installing equipment. • near clothes dryer exhaust vents. 2. Never assume electrical power is disconnected. Use a •...
- Page 5 It is important that no tubing be cut or seals broken until Brazing Connections you are ready to actually make connections to the evaporator and to the condenser section. DO NOT WARNING remove rubber plugs or copper caps from the tube ends FIRE HAZARD! until ready to make connections at evaporator and Refrigerant and oil mixture under pressure...
- Page 6 Replace service valve cap and torque to 8-11 ft-lb on NOTE: DO NOT use any portion of the charge for 1/4" and 3/8" valves; 12-15 ft-lb on 5/8" and 3/4" valves; purging or leak testing. It is mandatory that 15-20 ft-lb on 7/8" valves. a thorough evacuation of the refrigeration NOTE: The cap is the primary seal and must be lines and indoor coil be performed.
- Page 7 lengths other than 15 feet. For line sets shorter than 15 Table 2 - Control Wiring Size feet in length, remove charge per Table 3 . For line sets For length of wire up to: Use minimum wire size of: longer than 15 feet, add charge per Table 3 .
- Page 8 6. If measured superheat is: outdoor unit when required. The defrost function is • more than required, slowly add refrigerant to obtain initiated and terminated based on time and temperature. required superheat. During frosting conditions, the compressor will operate for •...
- Page 9 Home Owner's Information — Air Conditioners and Heat Pumps Room Thermostat Important System Information wall-mounted thermostat controls your • Your system should never be operated without a clean conditioner. The thermostat is available in various air filter properly installed. configurations from different manufacturers.
- Page 10 Regular Maintenance Requirements Use a soft bristle brush with light pressure only. DO Your system should be regularly inspected by a qualified NOT damage or bend condenser coil fins. Damaged or service technician. These regular visits may include bent fins may affect unit operation. (among other things) checks for: •...
Need help?
Do you have a question about the AC10B24 and is the answer not in the manual?
Questions and answers

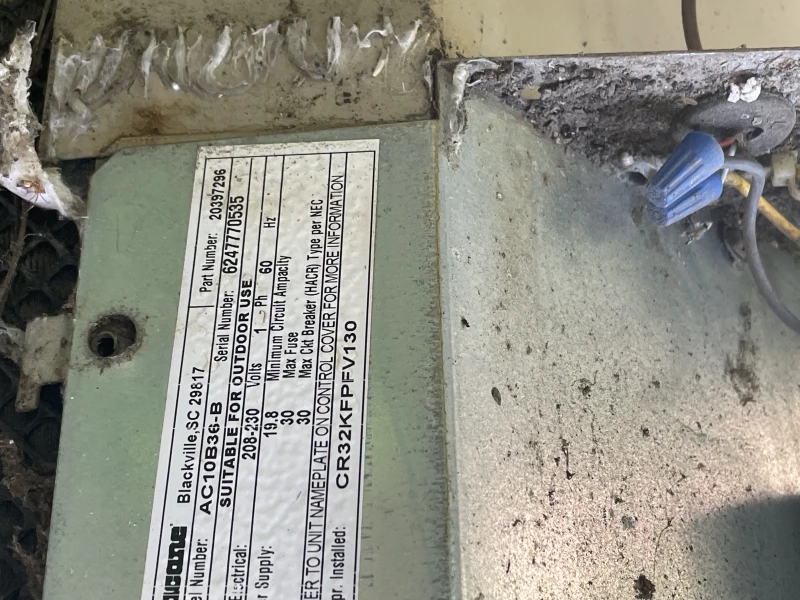

What Capacitor should i order for my Ducane central air unit? it was already installed when i purchased the home. It is totally rusted. The Unit Model Number is AC 10B36-B Serial# 1801740022 Thank You
