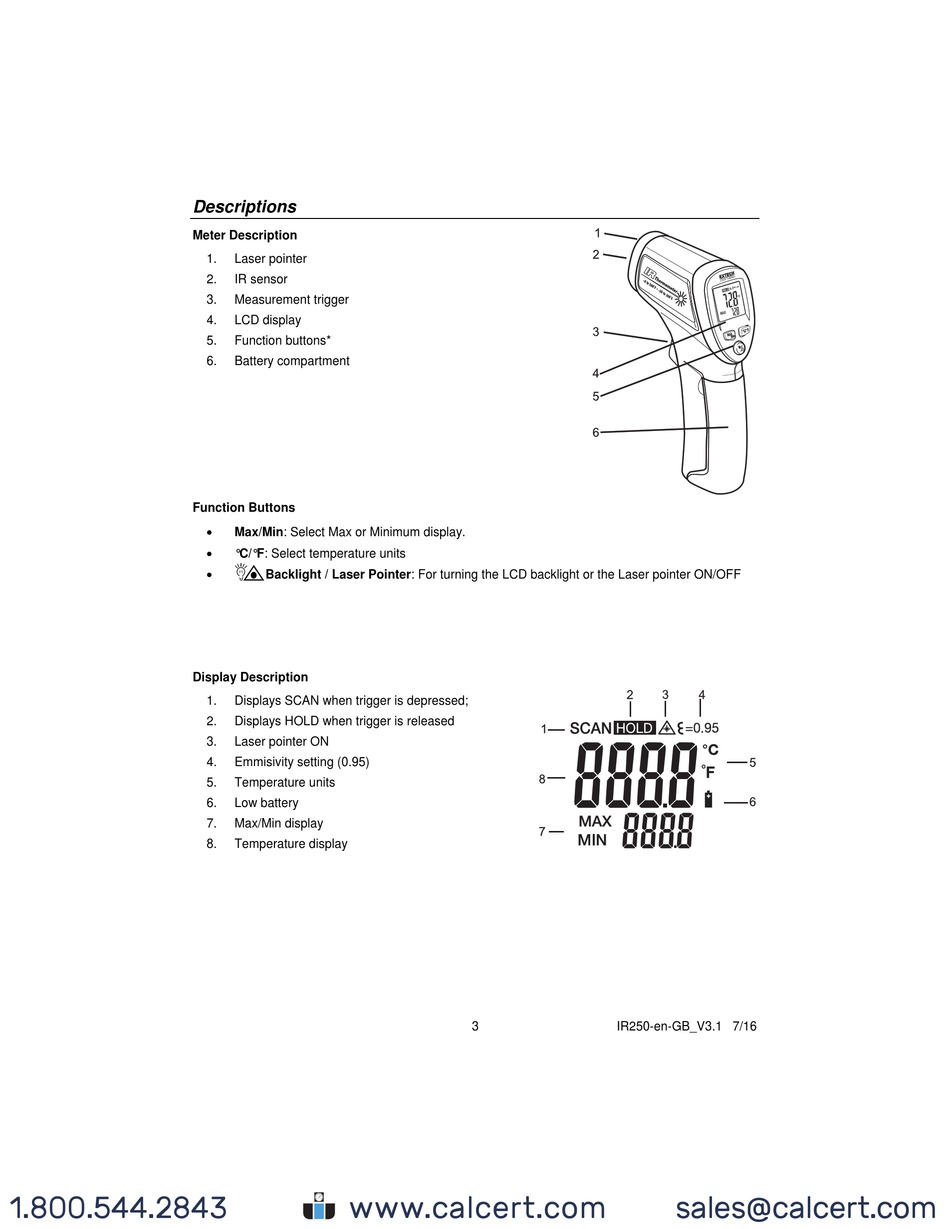

Descriptions
Meter Description
1.
Laser pointer
2.
IR sensor
3.
Measurement trigger
4.
LCD display
5.
Function buttons*
6.
Battery compartment
Function Buttons
Max/Min: Select Max or Minimum display.
°C/°F: Select temperature units
Backlight / Laser Pointer: For turning the LCD backlight or the Laser pointer ON/OFF
Display Description
1.
Displays SCAN when trigger is depressed;
2.
Displays HOLD when trigger is released
3.
Laser pointer ON
4.
Emmisivity setting (0.95)
5.
Temperature units
6.
Low battery
7.
Max/Min display
8.
Temperature display
www.calcert.com
15
10
20
5
25
0
30
3
IR250-en-GB_V3.1 7/16
