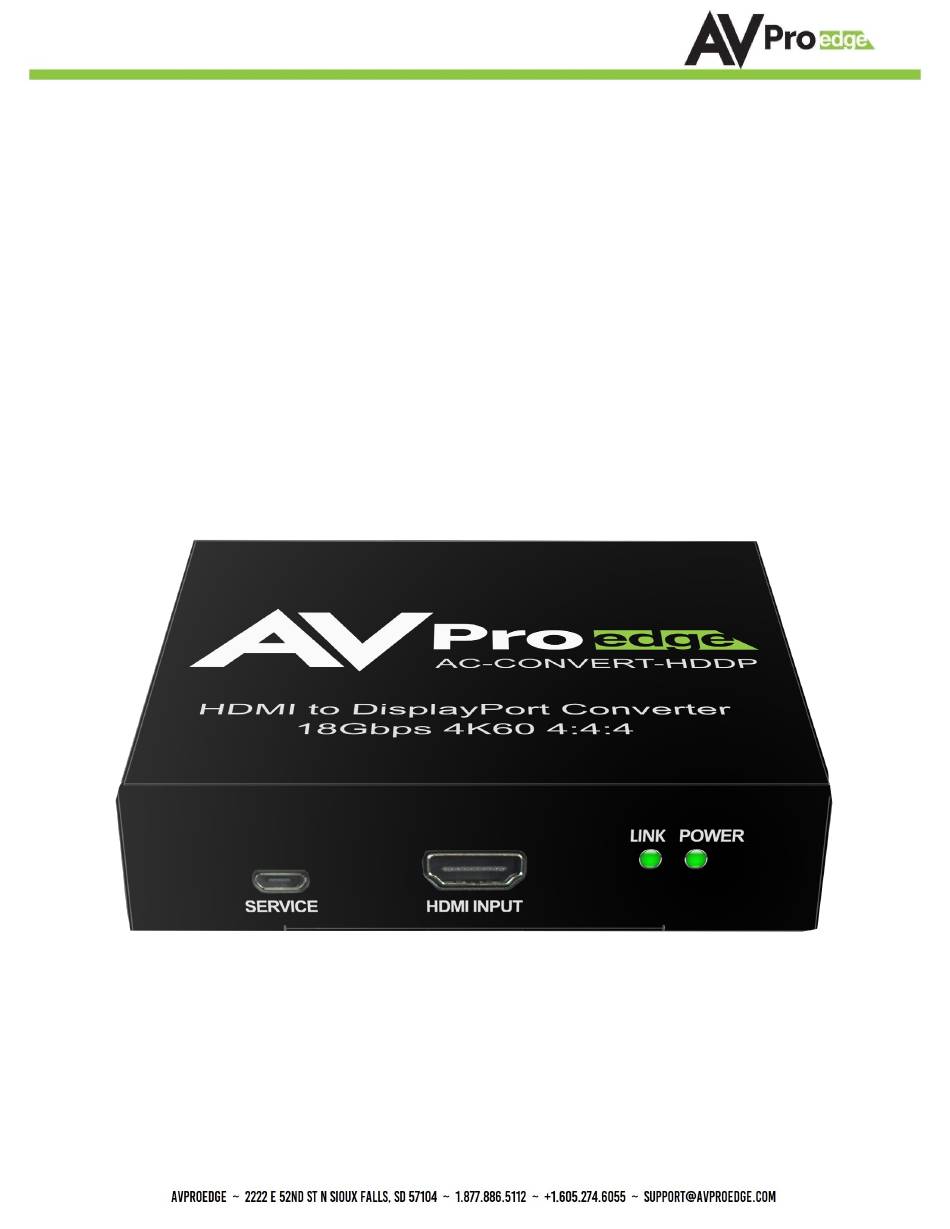

- Page 1 User Manual HDMI 2.0 To Displayport 1.2A Converter 1x2 AC-CONVERT-HDDP...
-
Page 2: Table Of Contents
I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 F E AT U R E S �... -
Page 3: Introduction
Introduction The AC-CONVERT-HDDP is a HDMI to DisplayPort Converter that can take an 18Gbps 4K60 (4:4:4) signal and con- vert it to DisplayPort 1.2 while retaining the 18Gbps bandwidth. Also a member of our 18Gbps Distribution Amplifier family, this product is ideal on all applications where stable distribution is key. It can also take in a 4K HDMI signal and distribute that signal through both of its DisplayPort outputs at the same time. -
Page 4: Specifications
Specifications... -
Page 5: Features
Features · DisplayPort 1.2a & HDMI 2.0 compliant · HDMI input supports video bandwidth up to 18Gbps · The EDID automatically sends the complete video feedback to media player and provides with high-resolution video quality · Supports HDCP 1.4 / 2.2 ·... -
Page 6: Device Overview
Device Overview Installation • Connect the HDMI cable to the HDMI Input port of P4K2-H1D2 converter and connect the Display- Port cables from your displays to DisplayPort output ports of P4K2-H1D2 • Connect the power adapter to DC jack; then the other end to an AC outlet •... -
Page 7: Troubleshooting
Troubleshooting Verify Power - Page 6 • Is the Red POWER LED light on. Verify Connections - Check that all cables are properly connected. Still having issues after troubleshooting, feel free to contact our Tech Support Department. • Email support@avproedge.com •... -
Page 8: Maintenance
Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. · Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 9: Support
Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provid- · Product name and model number · Product serial number ·... - Page 12 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com...
