Summary of Contents for AVPro Edge AC-SC2-AUHD-GEN2

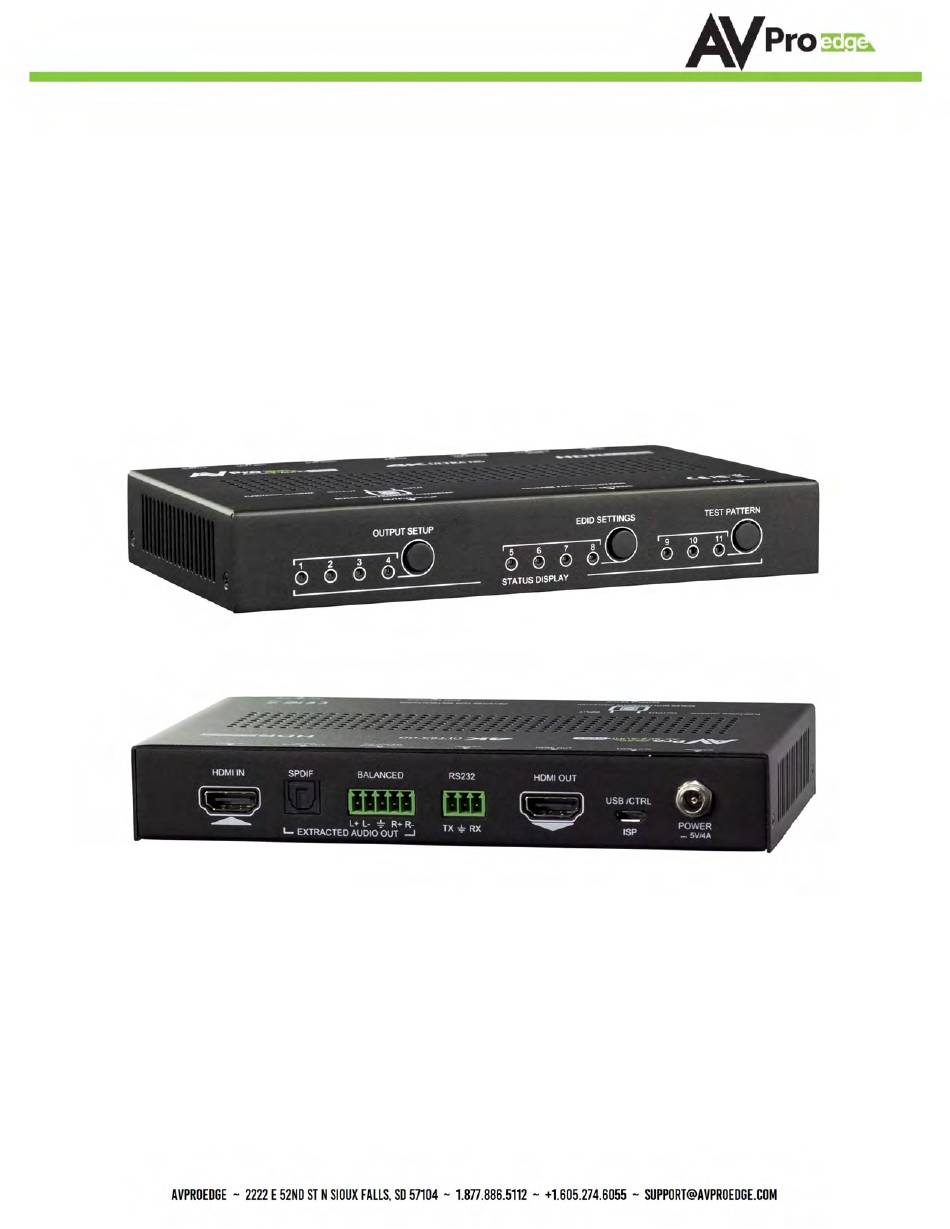

- Page 1 AC-SC2-AUHD-GEN2 USER MANUAL AC-SC2-AUHD -GEN2 The Ultimate Toolbox: 18Gbps Up/Down/Adaptive Scaler, EDID Manager, Audio De-Embedder Page 1...
-
Page 2: Typical Applications
AC-SC2-AUHD which does so much more, is a no brainer. • EDID causes about 80% of HDMI connectivity issues – The AC-SC2-AUHD-GEN2 can fix them all. • EDID capture and emulation – would you like to test end points prior to hanging that 600 pound projector 100 feet up on the ceiling? Use the AC-SC2-AUHD-GEN2 and your problem is solved ... - Page 3 AC-SC2-AUHD-GEN2 Page 3...
- Page 4 AC-SC2-AUHD-GEN2 Page 4...
-
Page 5: General Operation
General Operation Powering the device : Use the supplied 5V 4A power adapter. Setting the device : The AC-SC2-AUHD-GEN2 uses a simple on device control method, and all the available Bottom View settings are printed on the bottom as pictured:... -
Page 6: Output Timing
AC-SC2-AUHD-GEN2 OUTPUT TIMING The AVPro Edge's AC-SC2-AUHD-GEN2 is the ideal solution for integrators that are needing to distribute a signal to a variety of displays and keep an optimal picture. Integrators will enjoy its versatility of not only being able to control up/down scaling but handling EDID issues (including 4K HDR EDID's), image enhancement, and being able to access audio from the stream. -
Page 7: Edid Settings
AC-SC2-AUHD-GEN2 EDID Settings With EDID Settings you can manage the sources devices and force a certain output. This is especially important on newer sources that rely on EDID communications in implement high bandwidth and HDR signals. • 1080 EDIDs – Legacy EDIDs, these will ask the sources (especially high bandwidth ones) to output 1080 to function in 1080 Systems. -
Page 8: Test Patterns
AC-SC2-AUHD-GEN2 Test Patterns There are four built in Test patterns available To Enable and Disable press "TEST" button to cycle through the 3 resolutions. • 4k 30Hz / 4k 60Hz • 720P • 1080P You can also send the commands... - Page 9 AC-SC2-AUHD-GEN2 CTRL/ISP Micro USB Port for firmware and control. Command list below. For CTRL, use a Micro to USB cable and set the serial communications to: 57600,n,8,1 (baud: 57600, no parity, 8 data bits and 1 stop bit) with no handshaking.
- Page 10 AC-SC2-AUHD-GEN2 Page 10...
-
Page 11: Troubleshooting
• Verify Connections - Make sure all connected cables are properly connected. o You can use the built in Test Pattern Generator to verify signal path from AC-SC2-AUHD-GEN2 to the display • Source not syncing, default EDID is 0000 (all off) EDID BYPASS. If this is not working try one of the built in EDIDs Pg.7, or Copy from the Display using the USER EDID. -
Page 12: Maintenance
AC-SC2-AUHD-GEN2 Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 13: Warranty
AC-SC2-AUHD-GEN2 Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •... - Page 14 AC-SC2-AUHD-GEN2 Page 14...
- Page 15 AC-SC2-AUHD-GEN2 Page 15...
- Page 16 AC-SC2-AUHD-GEN2 Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 16...
