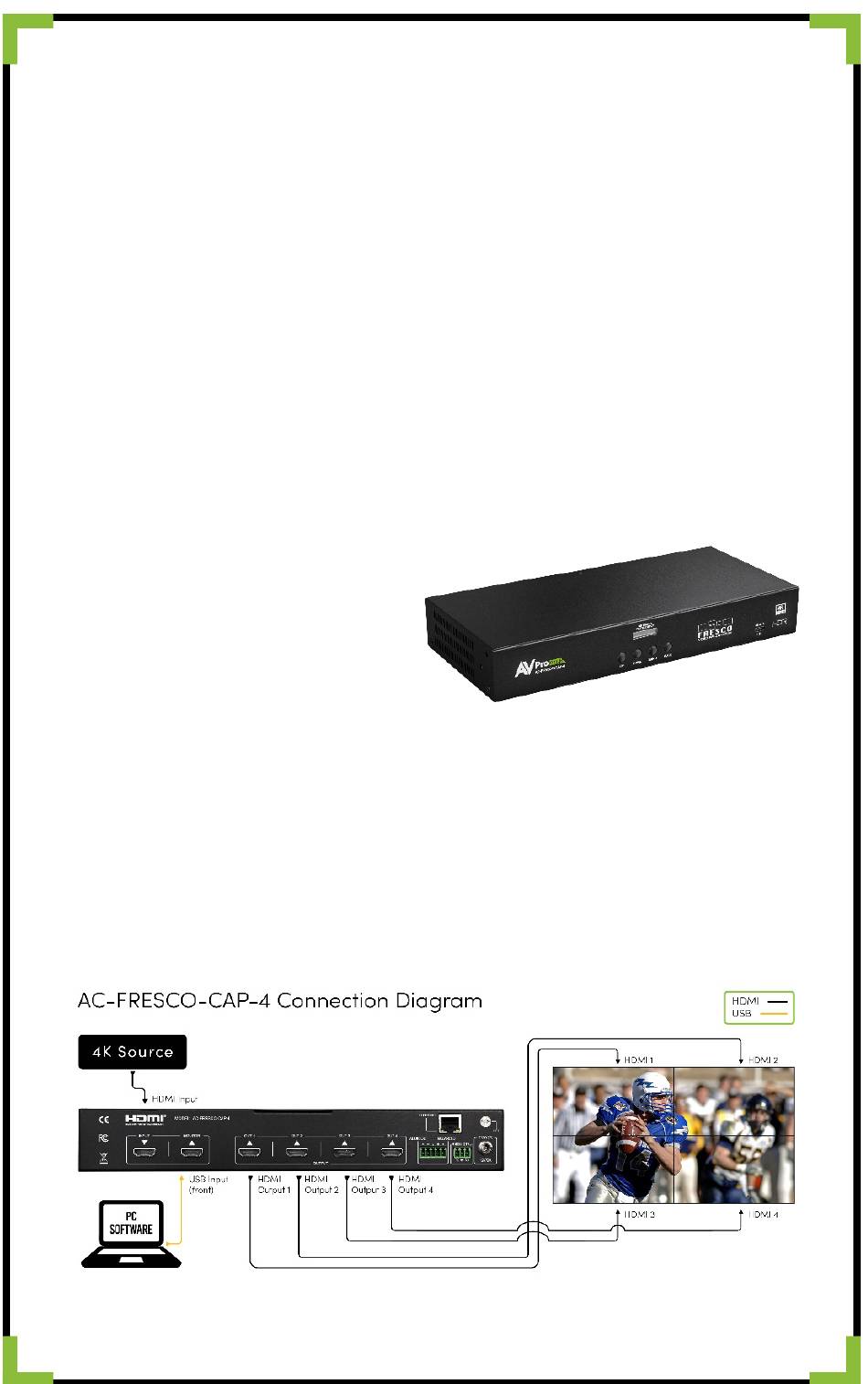

Fresco 4 Video Wall
AC-FRESCO-CAP-4 video wall processor
Quick Start Guide
The Fresco 4 enables you to process 4K video throughout your video
wall. AVPro Edge included robust scaling features inside this processor
that allows you to not only input 18G
4K60 signals, but output 4k 444
bps
to each display.
This QuickStart Guide Will be going over:
- InstallaLon
- connect/Control
Installa'on
- hang the panels/displays
- plug in power to the fresco
- Connect the source to the fresco HDMI input
- output 4 HDMI cables to desired displays
- Use the front panel to get the IP address
- Open the Web GUI to adjust the video wall as needed
Fresco 4 display layout example:
