Arcomed Volumed uVP7000 Maintenance Manual

Hide thumbs Also See for Volumed uVP7000:
Table of Contents

Advertisement

Quick Links

Maintenance Manual

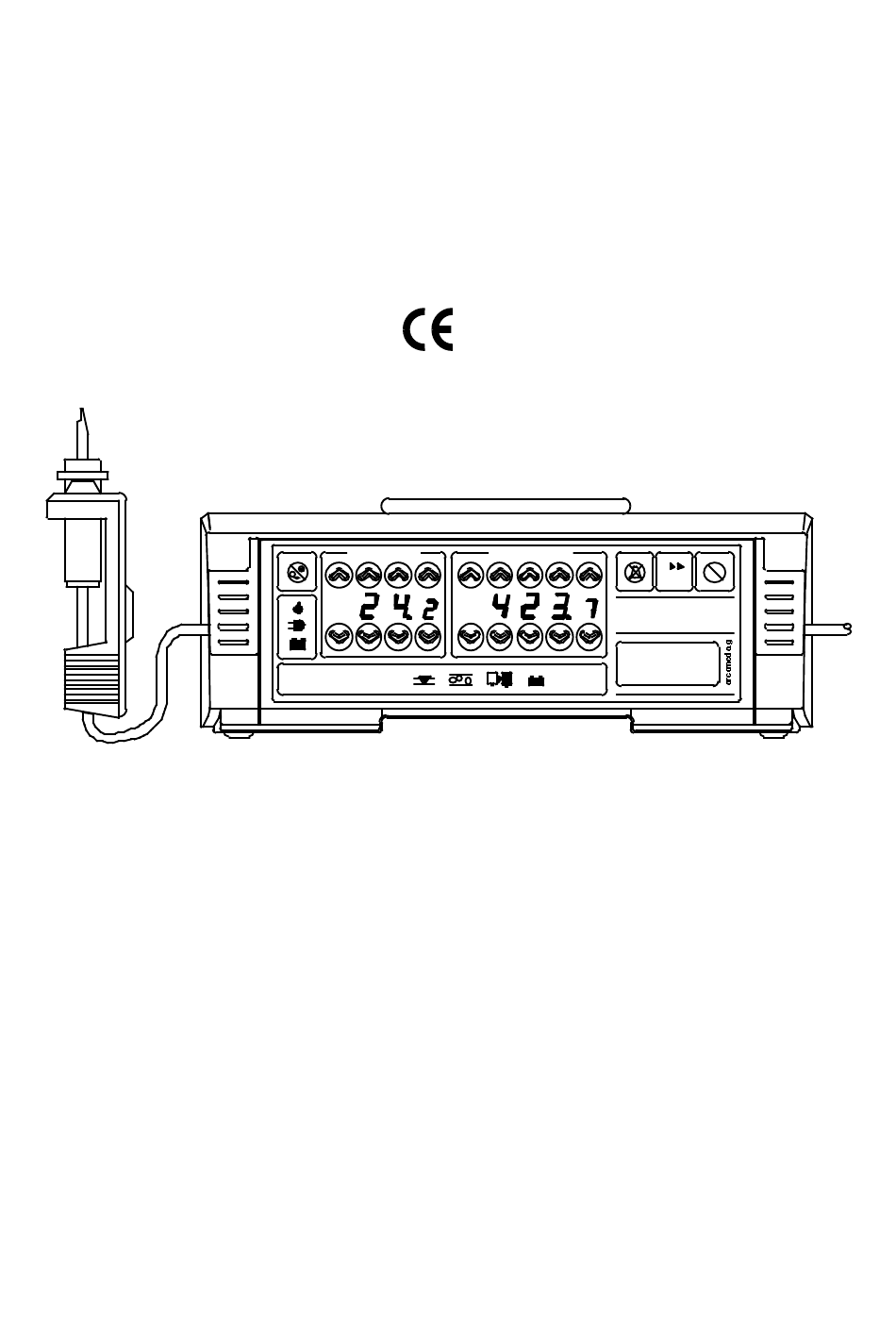

Volumed ® µVP7000
This manual is exclusively intended for authorized personnel who have been
instructed by Arcomed AG in the maintenance and repair of the Infusion Pump
indicated above.
Arcomed AG shall assume no liability for tampering by unauthorized persons.
Caution: The manufacturer reserves the right to improve the specifications of
Swiss Made
RATE ML/H
O N
OFF
INF
RATE
KVO
COMPL
ARCOMED AG
8105 Regensdorf / Zürich
(an ISO 9001 company)
Important
this product without prior notice.
Edition 02/03 -VA-TM-7000-E
VOLUME ML
2 MIN
BOLUS
OPTION
volumed
µVP7000
DEFECT
START
STOP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Volumed uVP7000 and is the answer not in the manual?

Questions and answers

Related Manuals for Arcomed Volumed uVP7000

Summary of Contents for Arcomed Volumed uVP7000

  • Page 1 (an ISO 9001 company) Important This manual is exclusively intended for authorized personnel who have been instructed by Arcomed AG in the maintenance and repair of the Infusion Pump indicated above. Arcomed AG shall assume no liability for tampering by unauthorized persons.

  • Page 2: Table Of Contents

    Contents Page Index numbers Introduction 1.2.2 Service Intervals Specifications Operation 3.18 Parallel / Multiple Infusions Alarm Supervision System Warranty Design Changes Inspection and Maintenance Intervals Significance of Trumpet Curves Technical description Trouble shooting Replacement of parts Spare parts list 7000 Annex A Drawings Annex B...

  • Page 3: Index Numbers

    Index Numbers Administration set Drip chamber Stop flow clamp (internal or robson clamp) Empty container detector (ECD) Door Door latch On / OFF key Rate display Volume display Start / Stop key Tube guides Pumping-peristaltic Occlusion detector Stop flow device Air detector Rate keys Volume keys...
  • Page 4 RATE ML/H VOLUME ML 2 MIN START BOLUS OPTION STOP volumed µVP7000 DEFECT RATE COMPL Volumed µVP7000 Front view...
  • Page 5 Volumed µVP7000 Rear view...

  • Page 6: Introduction

    EC Guideline 93/42 EEC and is marked CE. Classification: Class IIb The manufacturer according to MDD is Arcomed AG, Althardstrasse 146, CH 8105 Regensdorf, Zurich, Switzerland. Responsible for the EC is Arcomedical Infusion Ltd., West Horndon, Essex CM13 3XS, UK.
  • Page 7 Tel. 0044 (1) 277’81’04’32 Fax. 0044 (1) 277’81’19’67 The technical manual and the list of spares and used materials can be requested from Arcomed. 1.2.1 Cleaning and disinfection CAUTION: The pump must be switched off and disconnected from the mains power supply before cleaning and disinfecting.

  • Page 8: Specifications

    Specifications CE Mark A23 02 04 07000 01 Classification Software revision 1.xx Flow rate range (ml/h) 0.1 - 999.0 ml/h, increments: 0.1 ml/h Volume range (ml) 0.1 - 9999.9 ml, increments: 0.1 ml Deviation in flow-rate with 8101P series administration set typ.
  • Page 9 Max. storage period 3 months without charging Permitted temperature range 15°C - 35°C / 0°C- 40°C (operation/storage) Permitted relative humidity 20-90% max. (no vapor deposit) Atmospheric pressure 500-1000 hPa Safety certification DIN IEC 601 Part 1 EN55011 Radio interference IEC60601-1-2 Susceptibility IEC60601-2-24 Operating modes Continual, manual bolus, automatic bolus, priming.

  • Page 10: Operation

    Operation The figures in brackets refer to the illustrations of front and rear views shown in the appendices. CAUTION: Use only approved disposable adiministration sets! (cf. leaflet "Accessories and Consumables") The performance of the pump depends on both pump and administration set. The volumed must only be used with the sets the pump has been calibrated to.
  • Page 11 h) Switch the pump on: Press ON/OFF key ( ) (10). The audible alarm beeps once together with the indication < ! > in the alarm window (21). The software version number (µVP7000, rx.xx) and the configuration of the pump (µVP7000, c.xxx) light up briefly.
  • Page 12 3.4. Resetting the volume infused In order to reset the volume infused, stop the pump by pressing the STOP key (10). Press the OPTION key (18) for 2 seconds until the VOLUME display (9) flashes. When the LCD window (20) displays "000", confirm this by pressing the START/STOP key (10) to reset the volume infused to zero.
  • Page 13 The time in hours and minutes may be selected in the RATE display (9) and the volume selected in the VOLUME display (9). The pump automatically calculates the infusion rate. Check this carefully in the LCD window (20) before starting the infusion.
  • Page 14 3.11. Different configurations If a different configuration is required, please contact our Customer Service Department or the official ARCOMED distributor in your country. 3.12. Accessories and consumables Accessories, expendable parts and single-use items may only be used if they comply with the appropriate international standard and national approvals.
  • Page 15 71630. - Use only the external empty conntainer detector Nr. 98502 (4) Please contact the Customer Service Department of ARCOMED AG for details of the RS232 interface (IR interface) and how to link it to external systems. Page 10...

  • Page 16: Alarm Supervision System

    Alarm system 4.1. Alarm causes The electronic self-monitoring system continuously monitors the correct functioning of the pump and its displays whilst in operation. If a fault should occur, the infusion is stopped immediately and the alarm activates. The corresponding alarm symbol is illuminated continuously with a red colour and there is a continuous audible alarm.
  • Page 17 4.3. Battery alarm The pump may be operated independently of the mains power supply using the internal battery. If the mains power supply fails, the pump switches automatically to battery operation to continue the infusion without interruption. Battery operation is indicated by illumination of the battery symbol (22). Battery capacity permits from 3 up to 6 hours operation (1.85 Ah battery) depending on the infusion rate set.

  • Page 18: Warranty

    The warranty is rendered null and void if changes or repairs are carried out by persons who have not been authorized in writing to do so by Arcomed AG or Arcomedical Infusion Ltd and if the inspection and maintenance intervals are not observed.

  • Page 19: Inspection And Maintenance Intervals

    Leakage current ≤ 100 mOhm o Resistance protective conductor The rates of the fuses must comply with the rates recommended by arcomed (producer): Conventional transformer 230V :100 mAT/250V, toroid transformer 230V: 250 mAT/250V, toroid transformer 115V: 500mA T/250V ( IEC127/III/SEV 1064).

  • Page 20: Significance Of Trumpet Curves

    7. Perfomance 7.1 Significance of trumpet curves for practical use Trumpet curves indicate for 5 different observation windows the maximum and minimum mean values of the flow rate in ratio to the preset flow rate. Known therefore is the discrepancy per time-window. For optimal use of the infusion pump Volumed®...
  • Page 21 File Name: 25ml/h IEC 7000 ø Flow (2nd h): ø Error[%] (2nd h): 25.788 3.153 Rec. date: Rec. time: Rate (ml/h): Evaporation: # Scans: Interval (s): 11.2.2002 11.2.2002 10:54:24 Uhr 10:54:24 Uhr 25.0 0.00 Flow [ml/h]: 50.0 37.5 25.0 12.5 0:00 0:10 0:20...
  • Page 22 File Name: 5ml/h IEC 7000 ø Flow (2nd h): ø Error[%] (2nd h): 5.010 0.203 Rec. date: Rec. time: Rate (ml/h): Evaporation: # Scans: Interval (s): 19.2.2002 19.2.2002 10:07:52 Uhr 10:07:52 Uhr 0.00 Flow [ml/h]: 10.0 0:00 0:10 0:20 0:30 0:40 0:50 1:00...

  • Page 23: Technical Description

    TECHNICAL DESCRIPTION Introduction The microprocessor controlled peristaltic pump Volumed® µVP7000 is supplied with a step motor drive and comprehensive software monitoring. The operating range of the pump allows rates from 0.1 - 999ml/h to be selected. An integrated, rechargeable battery permits mains-independent operation for emergencies or for ambulatory use.
  • Page 24 Operating voltages The supply voltage, the 5V logic supply rail and reference voltage are measured and monitored via disc resistors by the analog/digital converter in the microcontroller. Mains/battery operation The level of the operating voltage determines whether mains or battery operation is used.
  • Page 25 Infra red interface The microcontroller sends and receives data via IC's D10 to D12. The encoder D10 converts the signals to Standard IrDA 1.0. The unit can receive and transmit data from above (D11), below and to the rear (D12). This provides a wire-less connection between units mounted on top of each other.
  • Page 26 8.2.4. Power supply Mains power is supplied via a toroidal transformer and the rectifier V10. In the event of a mains power supply failure, power is supplied without interruption by the internal battery. The charge switch V14 ensures the battery is constantly charged when the unit is connected to the mains (even when the unit is switched off).

  • Page 27: Trouble Shooting

    - Battery discharged: 9V - 5V rail monitoring < 4.5V: fault signal > 5.8V: fault signal - A/D converter: defect >2.5%: fault signal Audible alarm repeat: On 0.6 sec Off 3.0 sec Other functions: - Audible alarm in standby mode Trouble shooting When a DEFECT signal is given a fault code is displayed automatically.

  • Page 28: Replacement Of Parts

    10. Replacement of parts The Volumed symbol µVP7000 may only be repaired by ARCOMED AG or persons officially authorised in writing by Arcomed AG or Arcomedical Infusion Ltd to do so. In the event of a warranty claim please send the unit to the address shown in Chapter 1.1.
  • Page 29 11. Volumed µVP7000: List of spare parts Please quote the serial number of the pump when ordering. Part no. Description Assy Rev. Material 70000 Case rear Back 1 BC00 70010 8mm safety ring Back 1, Front 1 BC00 steel 70020 Rubber foot - blue Back 1, Front1 BC00...
  • Page 30 75070 Apdapter PVC 7000 Front BC00 75080 Case Stop Flow StopFlow BC00 75090 Stop Flow Adapter StopFlow BC00 75100 Stop Flow Adapter standard StopFlow BC00 75110 Actuator Stop Flow StopFlow BC00 75120 Side Plate 7000 pump bloc BC00 75130 Slider 7000 pump bloc BC00 75140...
  • Page 31 92201 Pump housing (blade housing) pump bloc AC040 92461 Blade pump bloc AC040 93980 Ball bearing dia. 6/19x6 pump bloc BC00 stell 98100 Spacer M5/60mm thread inside final BC00 iron 98275 M3 / 3,2 safety ring Pump bloc BC00 iron 98435 Sticker Battery Front...
  • Page 32 Drawings...
  • Page 33 98502 98932 75000 75110 75080 99530 75020 75160 75010 75000 RATE ML/H VOLUME ML 2 MIN START BOLUS OPTION STOP volumed µVP7000 DEFECT RATE COMPL Volumed µVP7000 70020...
  • Page 34 70000 70170 70160 98070 75150 71271 75150 70100 Volumed µVP7000...
  • Page 35 75210 75620 75230 75350 70470 75140 99950 93380 75560 70570 75130 92461 92201 75580 75120 75240...
  • Page 37 Schematics...
  • Page 38 KeyIn External IOKeyIn IOKeyIn 16 1.0 PowerHold ST24C02 EEPROM 12 4.5 SDA/1.7 SCL/1.6 35 XTAL1 backlight illum. ADC5/5.5 XTAL2 EndPos EndPos Switch date 19.02.2001 drawn Main PCB µSP6000 P1-1.07 scale [mm] checked copyright arcomed - confidential Nr. 6001-0101 material: (PCB)
  • Page 39 External PExt/Hall Clutch1 CheckPower1 CheckPower2 PowerSupply L4960 DC converter Transformer COMP Sense Start +9.6V Battery PowerHold 2,3,6,7 IOKey/5VCtr 2.5V BattCharge 2,3,6,7 IOKeyIn date 2.11.2000 drawn Main PCB µSP6000 P2 scale [mm] checked copyright arcomed - confidential material: (PCB) Nr. 6001-0102...
  • Page 41 D13a D15a D17a D19a D11b D13b D15b D17b D19b D11c D13c D15c D17c D19c LCD Display Backlight – VLCD Air Detector Receiver Schematic Display PCB date 2.11.2000 drawn µVP7000 scale [mm] checked copyright arcomed - confidential Nr. 7001-0107 material: (PCB)
  • Page 43 Hall Clutch 1 Hall Connector PCB NurseCall /Cl1 /Cl2 /RC1 Syringe/Drop 2 HC4538 External 3 6,9, 10,14 12V 4 Drop/PCA Connector TLC271 date 3.7.2001 drawn Sensor PCB µVP7000 1.01 scale [mm] checked copyright arcomed - confidential Nr. 7001-0103 material: (PCB)
