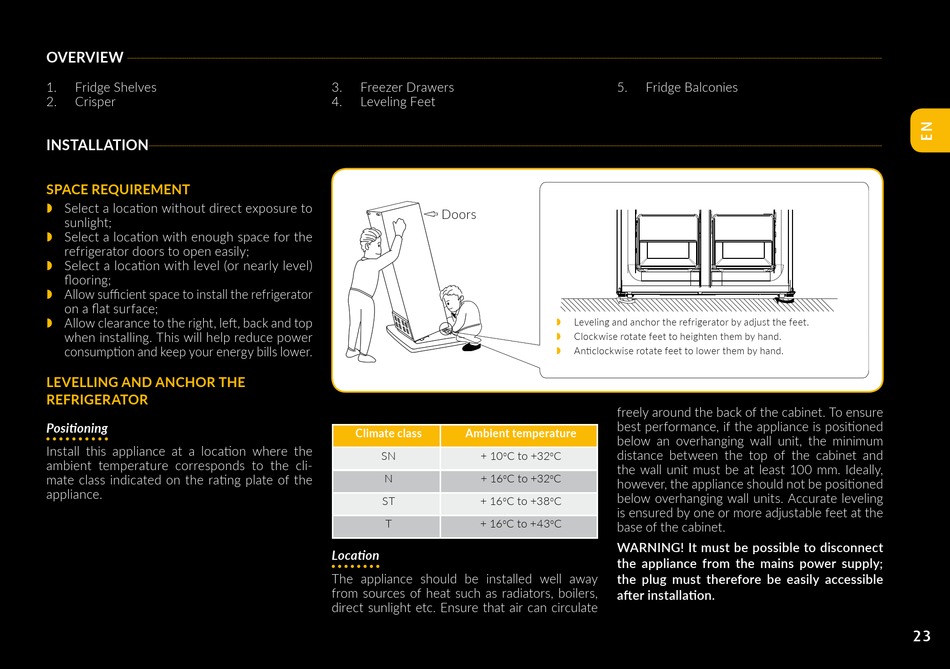

OVERVIEW
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1. Fridge Shelves
2. Crisper
INSTALLATION- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

SPACE REQUIREMENT

Select a locati on without direct exposure to

sunlight;
Select a locati on with enough space for the

refrigerator doors to open easily;
Select a locati on with level (or nearly level)

fl ooring;
Allow suffi cient space to install the refrigerator

on a fl at surface;
Allow clearance to the right, left , back and top

when installing. This will help reduce power
consumpti on and keep your energy bills lower.
LEVELLING AND ANCHOR THE
REFRIGERATOR
Positi oning
Install this appliance at a locati on where the
ambient temperature corresponds to the cli-
mate class indicated on the rati ng plate of the
appliance.
3. Freezer Drawers
4. Leveling Feet
Doors
Climate class Ambient temperature
SN + 10 C to +32
o
N + 16 C to +32
o
ST + 16 C to +38
o
T + 16 C to +43
o
Locati on
The appliance should be installed well away
from sources of heat such as radiators, boilers,
direct sunlight etc. Ensure that air can circulate
5. Fridge Balconies
Leveling and anchor the refrigerator by adjust the feet.

Clockwise rotate feet to heighten them by hand.

Anti clockwise rotate feet to lower them by hand.

freely around the back of the cabinet. To ensure
best performance, if the appliance is positi oned
below an overhanging wall unit, the minimum
distance between the top of the cabinet and
C
o
the wall unit must be at least 100 mm. Ideally,
C
o
however, the appliance should not be positi oned
below overhanging wall units. Accurate leveling
C
o
is ensured by one or more adjustable feet at the
C
o
base of the cabinet.
WARNING! It must be possible to disconnect
the appliance from the mains power supply;
the plug must therefore be easily accessible
aft er installati on.
