Lookout Ridge Wooden Swing Set
Style # 160395 (WP-658)
OWNER'S MANUAL
ASSEMBLY, INSTALLATION, CARE, MAINTENANCE AND USER INSTRUCTIONS
Please keep this instruction manual for future reference
FOR RESIDENTIAL USE ONL Y
DO NOT RETURN TO THE STORE
For replacement parts, please call 1-866-370-2131
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
Customer Service: (888) 922-2336 7:00 am to 12:00 am CST (daily)
Live Chat at: www.academy.com
Email: customerservice@academy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lookout Ridge 160395 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGame Lookout Ridge 160395

Summary of Contents for AGame Lookout Ridge 160395

  • Page 1 Lookout Ridge Wooden Swing Set Style # 160395 (WP-658) OWNER’S MANUAL ASSEMBLY, INSTALLATION, CARE, MAINTENANCE AND USER INSTRUCTIONS Please keep this instruction manual for future reference FOR RESIDENTIAL USE ONL Y DO NOT RETURN TO THE STORE For replacement parts, please call 1-866-370-2131 Monday –...
  • Page 2 INTRODUCTION Dear Valued Customer, Congratulations on your Lookout Ridge wooden swing set purchase! Please read and completely understand the contents of this owner’s manual. This manual contains specific instructions that must be followed to prevent injuries. This equipment is for residential use only. This swing set is NOT intended for public or commercial use. The warranty will be voided if the swing set is used in a commercial application.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT WARNINGS AND INSTRUCTIONS····················· 3 IMPORTANT CONSUMER INFORMATION SHEET ················ 7 CARE AND MAINTENANCE CHECK LIST ··························12 ………………………………………..13 COMPLETE PRODUCT VIEW TOOLS NEEDED …………………………………………………….14 WOOD PARTS LIST ························································ 15 HARDWARE PARTS LIST················································· 18 COMPONENT PARTS LIST················································19 ASSEMBLY AND INSTALLATION INSTRUCTIONS··············· 20 HELPFUL TIPS································································...

  • Page 4: Important Warnings And Instructions

    IMPORTANT WARNINGS AND INSTRUCTIONS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS EQUIPMENT AGE LIMIT  This product is designed to be used by up to eight (8) children between the ages of 3 to 10. Maximum individual user weight is 100 pounds (45kg) each with a combined maximum weight of 800 pounds (360kg.) ...
  • Page 5 IMPORTANT WARNINGS AND INSTRUCTIONS WARNING BEFORE YOU BEGIN ASSEMBLY:  Take a complete inventory of components using the parts list.  Sort and lay out the wood pieces. Label each piece of wood for easy reference. For easy identification during the assembly process, write the board’s letter on masking tape and adhere to each piece of the wood.
  • Page 6 IMPORTANT WARNINGS AND INSTRUCTIONS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS EQUIPMENT Observing the following statements and warnings reduces the likelihood of serious or fatal injury. PLAY SUPERVISION  DO NOT allow more than one child to play on the individual swing or slide at the same time. DO NOT allow children to stand on the swing seat.
  • Page 7 IMPORTANT WARNINGS AND INSTRUCTIONS INSPECTION PRIOR TO EACH USE OR DAILY INSPECTION  DO NOT use the equipment if any bolts or nuts are missing or loose. ALWAYS check to ensure the equipment and all parts are well secured and stable before each use. ...

  • Page 8: Important Consumer Information Sheet

    IMPORTANT CONSUMER INFORMATION SHEET The Consumer Product Safety Commission estimates there are about 200,000 playground related injuries involving children each year. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries and have the potential to be fatal, particularly when the injury is to the head.
  • Page 9 IMPORTANT CONSUMER INFORMATION SHHET The following guidelines are extracts from the Consumer Product Safety Commission Outdoor Home Playground Safety Handbook. It is recommended that you read the entire handbook and take necessary precautions to prevent serious injuries to your children, including: CHOOSING A SITE When you choose a home playground, a location away from roads and driveways and readily visible from inside ...
  • Page 10 IMPORTANT CONSUMER INFORMATION SHEET Check and maintain the depth of the loose-fill surfacing material. To maintain the right amount of loose-fill  materials, mark the correct level on play equipment support posts. That way you can easily see when to replenish and/or redistribute the surfacing.
  • Page 11 When conducting inspections, it is recommended that you use the Suggested General Maintenance Checklist and Routine Inspection and Maintenance Issues checklists provided by the US Consumer Product Safety Commission, a copy of which is contained in this user manual. IMPORTANT CONSUMER INFORMATION SHEET Outdoor Home Playground Safety Checklist Use this to help make your home playground a safe place to play ! Supervision...
  • Page 12 IMPORTANT CONSUMER INFORMATION SHEET What to Inspect: Hardware: Inspect all nuts and bolts and tighten if required. Hardware should be firmly against, but not crushing the wood. Over-tightening hardware crushes wood fibers and can split wooden components resulting in the bolt thread extending beyond the wood. This poses a severe safety hazard.

  • Page 13: Care And Maintenance Check List

    CARE AND MAINTENANCE CHECK LIST AT THE BEGINNING OF EACH PLAY SEASON:  Tighten all hardware.  Lubricate all metallic moving parts per manufacturer’s instructions.  Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. ...

  • Page 14: Complete Product View

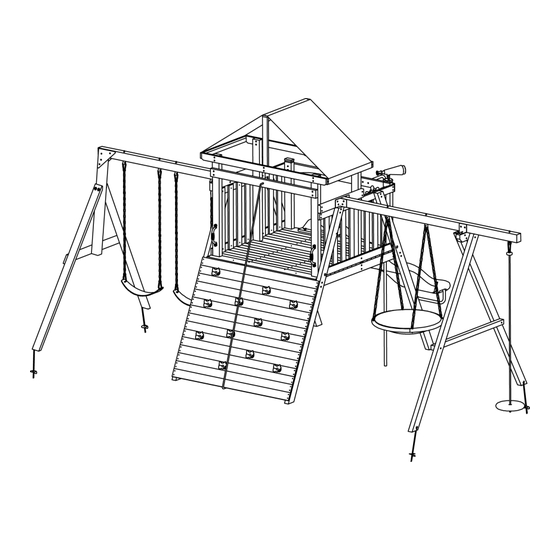

    COMPLETE PRODUCT VIEW FRONT VIEW OF COMPLETE PRODUCT BACK VIEW OF COMPLETE PRODUCT...

  • Page 15: Tools Needed

    TOOLS (NOT INCLUDED) These are the tools that are generally required for installation. These tools are not included in the purchased packaging unless stated below. TOOLS (INCLUDED)

  • Page 16: Wood Parts List

    WOOD PARTS LIST...
  • Page 17 WOOD PARTS LIST...
  • Page 18 WOOD PARTS LIST...

  • Page 19: Hardware Parts List

    HARDWARE PARTS LIST NOTE: EXTRA HARDWARE MAY BE INCLUDED Measuring Hardware It is very important that you get the right hardware in the correct place when assembling the unit. You can use a ruler to measure your hardware or you can compare the hardware to the hardware identification page. NOTES: 1) Do not include bolt head when measuring length of bolt.

  • Page 20: Component Parts List

    COMPONENT PARTS LIST...

  • Page 21: Assembly And Installation Instructions

    STEP 1 Part# Hardware# 1 pc 10 sets S3，V20 1 pc B7L,V8,V9 2 sets 1 pc 1 pc AC28 1 pc 1. Connect AC2 to AC5, AC7 and AC8 using S3 and V20 (4 sets), using B7L, V8 and V9 (2 sets). 2.
  • Page 22 STEP 2 Part# Hardware# 1 pc B3L,V8,V9 6 sets 1 pc B4,V8,V9 2 sets 1. Connect AC1 to AC2 and AC28, using B3L, V8 and V9 (3 sets), using B4, V8 and V9 (1 set). 2. Connect AC4 to AC2 and AC28, using B3L, V8 and V9 (3 sets), using B4, V8 and V9 (1 set).
  • Page 23 STEP 3 Part# Hardware# 1 pc B7L,V8,V9 2 sets 1 pc S3,V20 10 sets 1 pc AC8A 1 pc AC27 1 pc 1. Connect AC3 to AC6, AC7 and AC8A using S3 and V20 (4 sets), using B7L, V8 and V9 (2 sets). 2.
  • Page 24 STEP 4 Part# Hardware# 1 pc B3L,V8,V9 6 sets 1 pc B4,V8,V9 2 sets 1. Connect AC1 to AC3 and AC27, using B3L, V8 and V9 (3 sets), using B4, V8 and V9 (1 set). 2. Connect AC4 to AC3 and AC27, using B3L, V8 and V9 (3 sets), using B4, V8 and V9 (1 set).
  • Page 25 STEP 5 Part# Hardware# 1 pc B4,V8,V9 12 sets AC10 1 pc B5,V8,V9 4 sets AC14 2 pcs 1. Connect AC9 to AC5 and AC6 using B4, V8 and V9 (4 sets). 2. Connect AC10 to AC5 and AC6 using B5, V8 and V9 (4 sets). 3.
  • Page 26 STEP 6 Part# Hardware# 1 pc B4,V8,V9 4 sets AC13 1 pc B5,V8,V9 4 sets 1. Connect AC9 to AC8 and AC8A using B4, V8 and V9 (4 sets). 2. Connect AC13 to AC8 and AC8A using B5, V8 and V9 (4 sets).
  • Page 27 STEP 7 Part# Hardware# AC21 2 pcs S3,V20 4 sets 1. Connect AC21 to AC9 using S3 and V20 (4 sets).  Helpful Hint: Make sure the small pre-drilled holes face upward on A21.
  • Page 28 STEP 8 Part# Hardware# AC22 1 pc 70 pcs AC23 13 pcs AC24 1 pc AC25 1 pc AC26 1 pc 1. Connect AC22, AC26, AC23, AC24, AC25 to the play fort using S6 (70 pcs). Helpful Hint: Place all boards before securing to the structure. ...
  • Page 29 STEP 9 Part# Hardware# AC18 3 pcs 30 pcs AC19 6 pcs AC20 6 pcs AC39 2 pcs 1. Connect AC39 to AC18, AC19 and AC20 using S5 (30 pcs).  Helpful Hint: Make sure that you lay the boards A18 - A20 on a flat surface, the distance is 18.3".
  • Page 30 STEP 10 Part# Hardware# 12 pcs B28,V2,V31 24 sets 60 pcs 1. Connect AC18, AC19 and AC20 to AC1 and AC4 using S6 (60 pcs). 2. Connect U4 to AC19 and AC20 using B28, V2 and V31 (24 sets).  Helpful Hint: Make sure the climbing board is flush with the fort floor boards before securing.
  • Page 31 STEP 11 Part# Hardware# AC11 2 pcs S3, V20 2 sets S15, V20 4 sets 1. Connect AC11 to AC1 and AC4 using S3, V20 (2 sets) and S15, V20 (4 sets).
  • Page 32 STEP 12 Part# Hardware# AC35 7 pcs 14 pcs 1. Connect AC35 to AC28 and AC11 using S5 (14 pcs).  Helpful Hint: make sure AC35 boards are no more than 2.8" and 2.86" apart from each other as show as DIAGRAM.
  • Page 33 STEP 13 Part# Hardware# AC35 7 pcs 14 pcs 1. Connect AC35 to AC27 and AC11 using S5 (14 pcs).  Helpful Hint: Make sure AC35 are no more than 2.8" and 2.86" apart from each other as show as DIAGRAM.
  • Page 34 STEP 14 Part# Hardware# AC12 1 pc S4,V20 8 sets AC12A 1 pc B1,V8,V9 4 sets AC15 2 pcs 1. Connect AC12 to AC5 and AC7 using S4, V20 (4 sets). 2. Connect AC12A to AC6 and AC7 using S4, V20 (4 sets). 3.
  • Page 35 STEP 15 Part# Hardware# AC16 2 pcs 6 pcs AC17 1 pc 1. Connect AC16 to AC14 using S6 (4 pcs). 2. Connect AC17 to AC15 using S6 (2 pcs).
  • Page 36 STEP 16 Part# Hardware# AC31 1 pc B9,V8,V9 2 sets AC32 1 pc S3,V20 6 sets AC33 1 pc AC34 1 pc Insert B9, V8 through AC33, AC31 and AC32 and fasten with V8, V9 (2sets) on the other end of screw. 1.
  • Page 37 STEP 17 Part# Hardware# AC29 1 pc 7 pcs AC30 1 pc 7 pcs 4 pcs 7 pcs 7 pcs B4,V24,V9 4 sets Hammer the square head rivets (V4) into the pre-drilled holes as shown below. 1. Connect U2 to AC29 using B4, V24 and V24, V9 (2 sets). 2.
  • Page 38 STEP 18 Part# Hardware# 2 pcs B1,V24,V9 4 sets B4,V24,V9 4 sets ATTACH TWO PERSON FLYING SAUCER IN THE FOLLOWING ORDER: 1. Attach U2 to AC12 on both sides using B1, V24 and V9 (4 sets). 2. Attach U3 to AC29 and AC31 on both sides using B4, V24 and V24, V9 (4 sets).
  • Page 39 STEP 19 Part# Hardware# 2 pcs 4 pcs AC41 1 pc 1. Attach the swing seat (U5) to the frame. 2. Connect AC41to AC1 and AC4 using S6 (4 pcs).
  • Page 40 STEP 20 Part# Hardware# AC36 2 pcs B7,V8,V9 6 sets AC37 1 pc AC38 1 pc 1. Connect AC37 to AC36 using B7, V8 and V9 (4 sets). 2. Connect AC38 to AC36 using B7, V8 and V9 (2 sets). ...
  • Page 41 STEP 21 Part# Hardware# AC30 1 pc B1,V24,V9 4 sets 2 pcs B4,V24,V9 1 set B6,V24,V9 2 sets S1,V2 4 sets Attach U2 to AC12A on both sides using B1, V24 and V9 (4 sets). Attach U92 to AC30, using B4, V24 and V24, V9 (1 set), to AC30 and AC36, using S1 and V2 (4 sets), to AC37, using B6, V24 and V9 (2 sets) on both sides.
  • Page 42 STEP 22 Part# Hardware# 1 pc 4 pcs 4 pcs 4 pcs 2 sets ATTACH TWO PERSON FLYING SAUCER IN THE FOLLOWING ORDER: 1. Slide the smaller ends of U94 tubes into the pockets of flying saucer (U93). Connect the four tubes together.
  • Page 43 STEP 23 Part# Hardware# 2 pcs 4 pcs 1 pc 4 pcs 1 pc Attach the flying saucer to the frame. Attach the U89 to the frame. Attach the U91 rope to AC10 and AC41. Tie a knot at one end of the rope before pulling through AC10 and AC41.
  • Page 44 STEP 24 Part# Hardware# 1 pc B1,V1,V9 2 sets U658 1 pc 8 pcs 2 pcs S1,V2 4 sets ATTACH FIREMAN POLE AND CANOPY THE FOLLOWING ORDER: 1. Attach U90 to AC13 using B1, V1 and V9 (2 sets). 2. Attach U42 to AC8 and AC8A using S1 and V2 (4 sets). 3.
  • Page 45 STEP 25 Part# Hardware# U10D 1 pc S18,V18,V3 4 sets 1 pc B28,V2,V31 2 sets ATTACH SLIDE TO THE SWINGSET IN THE FOLLOWING ORDER: 1. Attach U10D to U7 using S18, V18 and V3 (4 sets). 2. Connect U7 to AC25 using B28, V2 and V31 (2 sets). ...
  • Page 46 STEP 26 Part# Hardware# 4 pcs 4 pcs 1 pc 4 pcs 1 pc 1 pc AC40 2 pc 4 pcs Use U50 as the anchoring stakes for this set. 1. Hammer U50 into the ground and secure it, using S1 (4 pcs). 2.

  • Page 47: Helpful Tips

    Helpful Tips Regularly check play set for wasp’s nests before allowing children to use. It is best practice to coat your play set with a water sealant to extend the longevity of the product.

  • Page 48: Product Warranty

    PRODUCT WARRANTY This product has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase.
