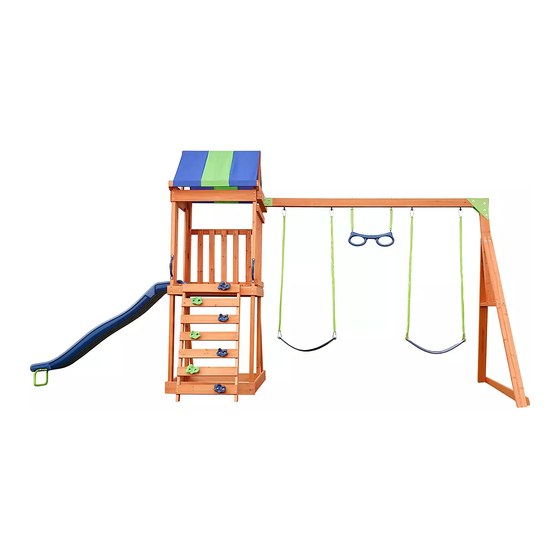

Denver Wooden Play Set
Style # YSLSUOG0000 (WP-337NPR)
OWNER'S MANUAL
ASSEMBLY, INSTALLATION, CARE, MAINTENANCE AND USER INSTRUCTIONS
Please keep this instruction manual for future reference
FOR RESIDENTIAL USE ONLY
DO NOT RETURN TO THE STORE
For replacement parts, please call 1-866-370-2131
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
Customer Service: (888) 922-2336 7:00 am to 12:00 am CST (daily)
Live Chat at: www.academy.com
Email: customerservice@academy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YSLSUOG0000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGame YSLSUOG0000

Summary of Contents for AGame YSLSUOG0000

  • Page 1 Denver Wooden Play Set Style # YSLSUOG0000 (WP-337NPR) OWNER’S MANUAL ASSEMBLY, INSTALLATION, CARE, MAINTENANCE AND USER INSTRUCTIONS Please keep this instruction manual for future reference FOR RESIDENTIAL USE ONLY DO NOT RETURN TO THE STORE For replacement parts, please call 1-866-370-2131 Monday –...
  • Page 2 INTRODUCTION Dear Valued Customer, Congratulations on your Denver wooden play set purchase! Please read and completely understand the contents of this owner’s manual. This manual contains specific instructions that must be followed to prevent injuries. This equipment is for residential use only. This swing set is NOT intended for public or commercial use. The warranty will be voided if the swing set is used in a commercial application.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT WARNINGS AND INSTRUCTIONS ···················· 3 IMPORTANT CONSUMER INFORMATION SHEET ··············· 7 CARE AND MAINTENANCE CHECK LIST ························· 12 ………………………………………..13 COMPLETE PRODUCT VIEW TOOLS NEEDED …………………………………………………….14 WOOD PARTS LIST ························································ 15 HARDWARE PARTS LIST ················································· 17 COMPONENT PARTS LIST ··············································· 18 HARDWARE PRE-ASSEMBLE….………..………………………..19 ASSEMBLY AND INSTALLATION INSTRUCTIONS ···············...

  • Page 4: Important Warnings And Instructions

    IMPORTANT WARNINGS AND INSTRUCTIONS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS EQUIPMENT AGE LIMIT  This product is designed to be used by up to six (6) children between the ages of 3 to 8. Maximum individual user weight is 100 pounds (45kg) each with a combined maximum weight of 600 pounds (270kg.) ...
  • Page 5 IMPORTANT WARNINGS AND INSTRUCTIONS WARNING BEFORE YOU BEGIN ASSEMBLY:  Take a complete inventory of components using the parts list.  Sort and lay out the wood pieces. Label each piece of wood for easy reference. For easy identification during the assembly process, write the board’s letter on masking tape and adhere to each piece of the wood.
  • Page 6 IMPORTANT WARNINGS AND INSTRUCTIONS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS EQUIPMENT Observing the following statements and warnings reduces the likelihood of serious or fatal injury. PLAY SUPERVISION  DO NOT allow more than one child to play on the individual swing or slide at the same time. DO NOT allow children to stand on the swing seat.
  • Page 7 IMPORTANT WARNINGS AND INSTRUCTIONS INSPECTION PRIOR TO EACH USE OR DAILY INSPECTION  DO NOT use the equipment if any bolts or nuts are missing or loose. ALWAYS check to ensure the equipment and all parts are well secured and stable before each use. ...

  • Page 8: Important Consumer Information Sheet

    IMPORTANT CONSUMER INFORMATION SHEET The Consumer Product Safety Commission estimates there are about 200,000 playground related injuries involving children each year. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries and have the potential to be fatal, particularly when the injury is to the head.
  • Page 9 IMPORTANT CONSUMER INFORMATION SHHET The following guidelines are extracts from the Consumer Product Safety Commission Outdoor Home Playground Safety Handbook. It is recommended that you read the entire handbook and take necessary precautions to prevent serious injuries to your children, including: CHOOSING A SITE ...
  • Page 10 IMPORTANT CONSUMER INFORMATION SHEET  Check and maintain the depth of the loose-fill surfacing material. To maintain the right amount of loose-fill materials, mark the correct level on play equipment support posts. That way you can easily see when to replenish and/or redistribute the surfacing.
  • Page 11 When conducting inspections, it is recommended that you use the Suggested General Maintenance Checklist and Routine Inspection and Maintenance Issues checklists provided by the US Consumer Product Safety Commission, a copy of which is contained in this user manual. IMPORTANT CONSUMER INFORMATION SHEET Outdoor Home Playground Safety Checklist Use this to help make your home playground a safe place to play Supervision...
  • Page 12 IMPORTANT CONSUMER INFORMATION SHEET What to Inspect: Hardware: Inspect all nuts and bolts and tighten if required. Hardware should be firmly against, but not crushing the wood. Over-tightening hardware crushes wood fibers and can split wooden components resulting in the bolt thread extending beyond the wood. This poses a severe safety hazard.

  • Page 13: Care And Maintenance Check List

    CARE AND MAINTENANCE CHECK LIST AT THE BEGINNING OF EACH PLAY SEASON:  Tighten all hardware.  Lubricate all metallic moving parts per manufacturer’s instructions.  Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. ...

  • Page 14: Complete Product View

    COMPLETE PRODUCT VIEW FRONT VIEW OF COMPLETE PRODUCT BACK VIEW OF COMPLETE PRODUCT...

  • Page 15: Tools Needed

    TOOLS NEEDED These are the tools that are generally required for installation. These tools are not included in the purchased packaging unless stated below. INCLUDED...

  • Page 16: Wood Parts List

    WOOD PARTS LIST...
  • Page 17 WOOD PARTS LIST...

  • Page 18: Hardware Parts List

    HARDWARE PARTS LIST NOTE: EXTRA HARDWARE MAY BE INCLUDED Measuring Hardware It is very important that you get the right hardware in the correct place when assembling the unit. You can use a ruler to measure your hardware or you can compare the hardware to the hardware identification page. NOTES: 1) Do not include bolt head when measuring length of bolt.

  • Page 19: Component Parts List

    COMPONENT PARTS LIST...

  • Page 20: Hardware Pre-Assemble

    HARDWARE PRE-ASSEMBLE Please pre-assemble the wood boards listed above before you begin to assemble the product. Hammer the square head rivets into the pre-drilled holes as shown below.

  • Page 21: Assembly And Installation Instructions

    STEP 1 Part# Hardware# 1 pc Z1,V3,V1 8 sets 1 pc 1 pc 1 pc 1. Connect P11 to P1 and P4 using Z1, V3 and V1 (4 sets). 2. Connect P5 to P1 and P4 using Z1, V3 and V1 (4 sets).).
  • Page 22 STEP 2 Part# Hardware# 1 pc Z1,V3,V1 8 sets 1 pc 1. Connect P6 to P2 and P3 using Z1, V3 and V1 (4 sets). 2. Attach U1 to P2 and P3 as shown below. 3. Connect P12 to P2 and P3, using Z1, V3 and V1 (4 sets).
  • Page 23 STEP 3 Part# Hardware# 1 pc Z2,V3,V2 8 sets 1 pc 1. Connect P10 to P3 and P4 using Z2, V3 and V2 (4 sets). 2. Connect P8 to P3 and P4 using Z2, V3 and V2 (4 sets).
  • Page 24 STEP 4 Part# Hardware# 1 pc Z2,V3,V2 8 sets 1 pc 1. Connect P9 to P1 and P2, using Z2, V3 and V2 (4 sets). 2. Connect P7 to P1 and P2, using Z2, V3 and V2 (4 sets).
  • Page 25 STEP 5 Part# Hardware# 1 pc Z2,V3,V2 2 sets 1 pc Z3,V3,V2 4 sets 2 pcs Z7,V3,V1 2 sets 1. Connect P14 to P13 using Z3, V3 and V2 (1 set), this will make a T if done correctly. 2. Attach P13 and P14 to P9, P10, and P11, using Z3, V3 and V2 (3 sets). 3.
  • Page 26 STEP 6 Part# Hardware# 2 pcs 28 pcs 7 pcs Z5,V2,V3 14 sets 7 pcs 1. Connect P16 to P15 using Z4 (28 pcs). 2. Connect U4 to P16 using Z5, V3 and V2 (14 sets).  Helpful Hint: Please make sure you have prepared P16 parts as required on Page 18 before proceeding. Please evenly distribute the gap in between each P16 wood piece (2.91”).
  • Page 27 STEP 7 Part# Hardware# Z2,V3,V2 2 sets 1. Connect P15 to P9 from inside, using Z2, V3 and V2 (2 sets).
  • Page 28 STEP 8 Part# Hardware# 1 pc 27 pcs 7 pcs 1 pc 1. Connect P17 and P19 on the 2 ends of the playhouse using Z6 (6 pcs). 2. Connect all 7 pieces of P18 in between using Z6 (21 pcs). ...
  • Page 29 STEP 9 Part# Hardware# 2 pcs Z2,V3,V2 8 sets 1 pc 1 pc 1. Connect P20 to P1 and P4, using Z2, V3 and V2 (4 sets). 2. Connect P21 and P22 to P3 and P4, using Z2, V3 and V2 (4 sets).
  • Page 30 STEP 10 Part# Hardware# 5 pcs 20 sets 5 pcs 1. Connect P23 to P20 from inside, using Z6 (10 pcs). 2. Connect P24 to P21 and P22 from inside, using Z6 (10 pcs).  Helpful Hint: Please evenly distribute the gap in between each P23 wood piece (2.93”), P24 wood piece (2.97”).
  • Page 31 STEP 11 Part# Hardware# 1 pcs Z1,V3,V1 4 sets 2 pcs Z8,V3,V1 4 sets 1. Connect P25 to P1 and P4 using Z8, V3 and V1 (4 sets). 2. Connect P31 to P1 and P4, P2 and P3, using Z1, V3 and V1 (4 sets).
  • Page 32 STEP 12 Part# Hardware# 1 pc 12 pcs 1 pc 2 pcs 1. Connect P27 and P28 to P1, P2 and P3, using Z4 (8 pcs). 2. Connect P33 to P31, using Z4 (4 pcs).
  • Page 33 STEP 13 Part# Hardware# 2 pcs 8 pcs 4 pcs 4 pcs 1. Connect P30 to P28 from inside, using Z6 (4 pcs). 2. Connect P29 to P17 from inside using Z4 (4 pcs), Connect P30 to P29 using Z6 (4 pcs).
  • Page 34 STEP 14 Part# Hardware# 2 pcs 8 pcs 1 pc 1. Connect P32 to P31 from inside, using Z4 (6 pcs). 2. Connect P34 to P32 using Z4 (2 pcs).
  • Page 35 STEP 15 Part# Hardware# 1 pc 12 pcs 1. Lay U7 over the top of the playhouse. 2. Secure both sides of U7 to P33 using Z9 (12 pcs).
  • Page 36 STEP 16 Part# Hardware# 1 pc Z11,V3,V1 2 sets 1 pc 4 pcs 1 pc 6 pcs 1 pc 1 pc 1. Insert Z11, V3 and V1 through P37, P35 and P36 and fasten with V1, V6 on the other end of screw. 2.
  • Page 37 STEP 17 Part# Hardware# 1 pc Z8,V3,V1,V6 2 sets 2 pcs V7,V1,V6 4 sets 1. Attach U2 to P40, using Z8, V3, V1 and V6 (2 sets). 2. Attach V7, V1 and V6 to P40 (4 sets).
  • Page 38 STEP 18 Part# Hardware# 2 pcs Z10,V3,V1 4 sets 1 pc Z8,V3,V1,V6 4 sets 4 pcs 1. Connect P35 to P40 with U3, using Z8, V3, V1 and V6 (4 sets). 2. Attach U12 from inside to P35 and P40, using Z6 (4 pcs). 3.
  • Page 39 STEP 19 Part# Hardware# 2 pcs 1. Attach the swing seat (U5) to the frame.
  • Page 40 STEP 20 Part# Hardware# 1 pc 2 pcs 2 pcs 2 pcs 2 pcs 4 pcs 4 pcs 2. Attach the short end of U13 to U8 using V2 and V6, attach the long end of U13 to P40 using V1 and 3.
  • Page 41 STEP 21 Part# Hardware# 1 pc Z2,V3,V2 4 sets 1 pc 8 pcs 2 pcs 1. Connect U9 to P17 and U1 and Z6 (8 pcs). 2. Connect U10 to U9, using Z2, V3 and V2 (4 sets).
  • Page 42 STEP 22 Part# Hardware# 2 pcs Z13,V3,V1 2 sets Use P41 as the anchoring stakes for this set. 1. Hammer P41 into the ground and secure it, using Z13, V3 and V1 (2 sets). IMPORTANT: BEFORE ALLOWING CHILDREN TO PLAY ON THE EQUIPMENT, THE ANCHORS PROVIDED MUST BE INSTALLED.

  • Page 43: Helpful Tips

    Helpful Tips Regularly check play set for wasp’s nests before allowing children to use. It is best practice to coat your play set with a water sealant to extend the longevity of the product.

  • Page 44: Product Warranty

    PRODUCT WARRANTY This product has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase.
