H3C S6860-54HF & S6860-54HT Switches Installation Quick Start-6W103
H3C S6860-54HF & S6860-54HT

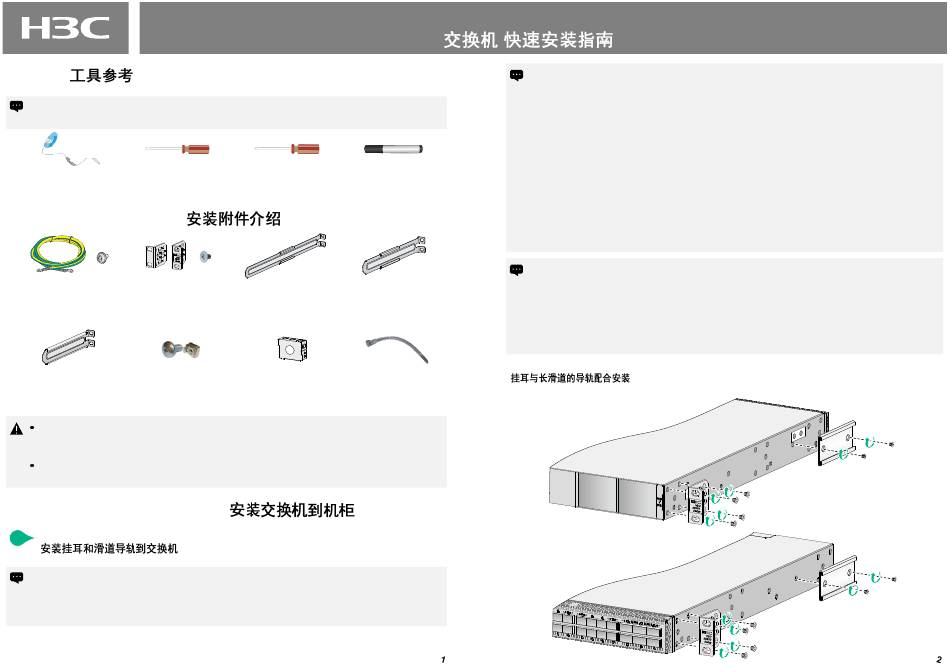

Tool list
The installation tools are not provided with the switch. Prepare them yourself as required.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
ESD wrist strap Flathead screwdriver
防静电腕带 一字螺丝刀
Installation accessories
Grounding cable and Mounting brackets
grounding screw and M4 screw
挂耳和M4螺钉
地线和接地螺钉
M6 screw and cage nut
Rack-mount rail kit B
(with a super-short (user supplied)
slide rail) (optional)
M6 螺钉和浮动螺母
超短滑道和导轨（选配） (用户自备)
The installation and removal procedures are the same for the S6860-54HF and the S6860-54HT
!
switches. This guide uses the S6860-54HF as an example unless otherwise stated.
不同款型交换机安装方式相似，如无特殊说明，安装方式以S6860-54HF为例进行示意。
Wear an ESD wrist strap, and make sure the strap makes good skin contact and is reliably grounded.
操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良好接地。
Mounting the switch in a rack
Attach the mounting brackets and chassis rails To the switch
1
Install the mounting brackets near the port side or power module side of the switch as needed. Attach
the chassis rails to the switch based on the mounting bracket installation position and rack depth.
用户可以根据安装场景的需要，将挂耳安装在设备靠近端口侧或靠近电源侧，并根据机柜深度，在交
换机侧面板的对应位置安装滑道导轨。
Phillips screwdriver Marker
十字螺丝刀 记号笔
Rack-mount rail kit A Rack-mount rail
(with a long slide rail) kit C (optional)
长滑道和导轨 滑道和导轨（选配）
Filler panel Cable tie
假面板 可拆卸式扎带
-6W103
For the S6860-54HF, rack-mount rail kit A is applicable to a rack with a depth (distance between the
front and rear rack posts) in the range of 621 to 793 mm (24.45 to 31.22 in).
The chassis rail of rack-mount rail kit B can be installed through narrow-spacing installation or
wide-spacing installation, which is applicable to a rack with a depth in the range of 330 to 505 mm
(12.99 to 19.88 in) or 438 to 632 mm (17.24 to 24.88 in), respectively.
For the S6860-54HT, rack-mount rail kit A and rack-mount rail kit C are applicable to a rack with a
depth in the range of 621 to 854 mm (24.45 to 33.62 in) and 401 to 634 mm (15.79 to 24.96 in),
respectively.
对于S6860-54HF机型， 挂耳与长滑道和导轨配合安装适用于机柜前后方孔条间距范围为621
793mm。挂耳与超短滑道和导轨配合安装到机柜时，滑道导轨有正向安装和反向安装两种方式：导轨
正向安装适用于机柜前后方孔条间距范围为330
～
范围为438 632mm。
对于S6860-54HT机型， 挂耳与长滑道和导轨配合安装适用于机柜前后方孔条间距范围为621
854mm。 挂耳与滑道和导轨配合安装适用于机柜前后方孔条间距范围为401
To use rack-mount rail kit A or C for rack-mounting the switch, make sure the front ends of the long
slide rails or slide rails reach out of the chassis rails. To use rack-mount rail kit B for rack-mounting
the switch, make sure the super-short slide rails slide a minimum length of 90 mm (3.54 in) into the
chassis rails.
为保证设备安装后的稳定性，使用长滑道或滑道和配套的导轨安装完成后，请确保长滑道或滑道的头
部露出导轨。使用超短滑道和配套的导轨安装完成后，请确保超短滑道头部进入导轨的最小深度为
90mm。
Attaching the mounting brackets and chassis rails of rack-mount rail kit A to the switch
Install the mounting brackets near the power module side
挂耳安装到靠近电源侧
Install the mounting brackets near the port side
挂耳安装到靠近端口侧
～
505mm；导轨反向安装适用于机柜前后方孔条间距
～
634mm。
～
～
