H3C S6860-30HF Installation, Quick Start

H3C S6860-30HF Switch Installation Quick Start-5PW101
H3C S6860-30HF 交换机 快速安装指南-5PW101

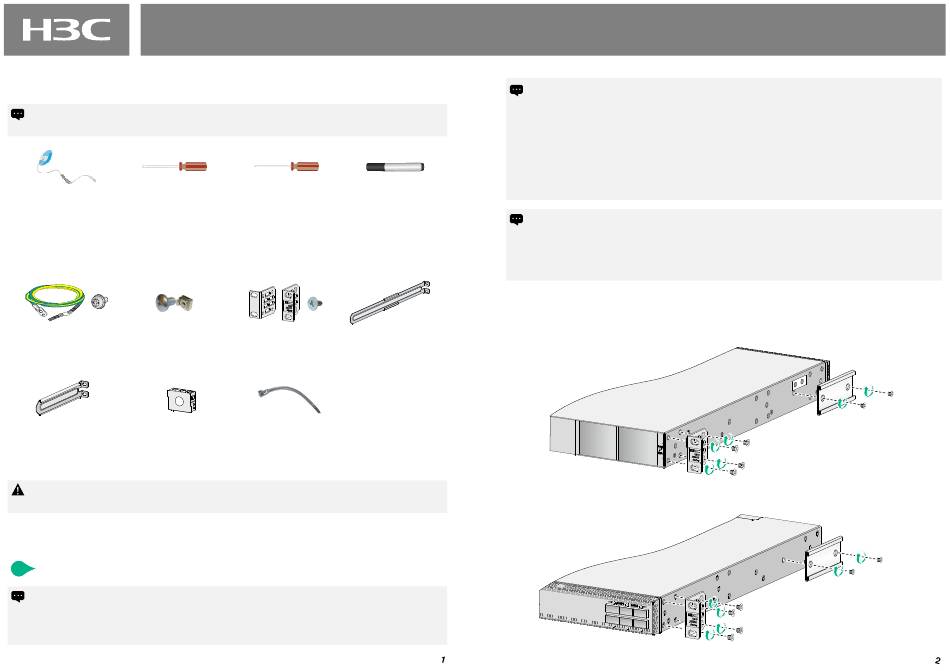

Tool list 工具参考
The installation tools are not provided with the switch. Prepare them yourself as required.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
ESD wrist strap Flathead screwdriver
防静电腕带 一字螺丝刀
Installation accessories 安装附件介绍
Grounding cable and M6 screw and cage nut
grounding screw (user supplied)
地线和接地螺钉 M6 螺钉和浮动螺母(用户自备)
Rack-mount rail kit B
Filler panel
假面板
(with a super-short
slide rail) (optional)
超短滑道和导轨（选配）
Wear an ESD wrist strap, and make sure the strap makes good skin contact and is reliably grounded.
!
操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良好接地。
Mounting the switch in a rack 安装交换机到机柜
Attach the mounting brackets and chassis rails to the switch 安装挂耳和滑道导轨到交换机
1
Install the mounting brackets near the port side or power module side of the switch as needed. Attach
the chassis rails to the switch based on the mounting bracket installation position and rack depth.
用户可以根据安装场景的需要，将挂耳安装在设备靠近端口侧或靠近电源侧，并根据机柜深度，在交
换机侧面板的对应位置安装滑道导轨。
Phillips screwdriver Marker
十字螺丝刀 记号笔
Mounting brackets Rack-mount rail kit A
and M4 screw (with a long slide rail)
挂耳和M4螺钉 长滑道和导轨
Cable tie
可拆卸式扎带
For the S6860-30HF, rack-mount rail kit A is applicable to a rack with a depth (distance between the
front and rear rack posts) in the range of 621 to 793 mm (24.45 to 31.22 in).
The chassis rail of rack-mount rail kit B can be installed through narrow-spacing installation or
wide-spacing installation, which is applicable to a rack with a depth in the range of 330 to 505 mm
(12.99 to 19.88 in) or 438 to 632 mm (17.24 to 24.88 in), respectively.
对于S6860-30HF机型， 挂耳与长滑道和导轨配合安装适用于机柜前后方孔条间距范围为621
793mm。挂耳与超短滑道和导轨配合安装到机柜时，滑道导轨有正向安装和反向安装两种方式：导轨
正向安装适用于机柜前后方孔条间距范围为330
～
范围为438
632mm。
To use rack-mount rail kit A, make sure the front ends of the long slide rails reach out of the chassis
rails. To use rack-mount rail kit B, make sure the super-short slide rails slide a minimum length of 90
mm (3.54 in) into the chassis rails.
为保证设备安装后的稳定性，使用长滑道和配套的导轨安装完成后，请确保长滑道的头部露出导轨。
使用超短滑道和配套的导轨安装完成后，请确保超短滑道头部进入导轨的最小深度为90mm。
Attaching the mounting brackets and chassis rails of rack-mount rail kit A to the switch
挂耳与长滑道的导轨配合安装
Install the mounting brackets near the power module side 挂耳安装到靠近电源侧
Install the mounting brackets near the port side 挂耳安装到靠近端口侧
BOM: 3101A0QF
～
505mm；导轨反向安装适用于机柜前后方孔条间距
～
