USER MANUAL
Table of Contents
Safety Information.........................2
What's Included.............................2
Specifications................................3
Main Power Connection................4
DMX Driver....................................4
Installation......................................5
Size & Weight................................6
Cleaning & Maintenance...............7
Warranty........................................8
Customer Service..........................9
Advertisement
Table of Contents
Summary of Contents for Deco PARLED Q10
-
Page 1: Table Of Contents

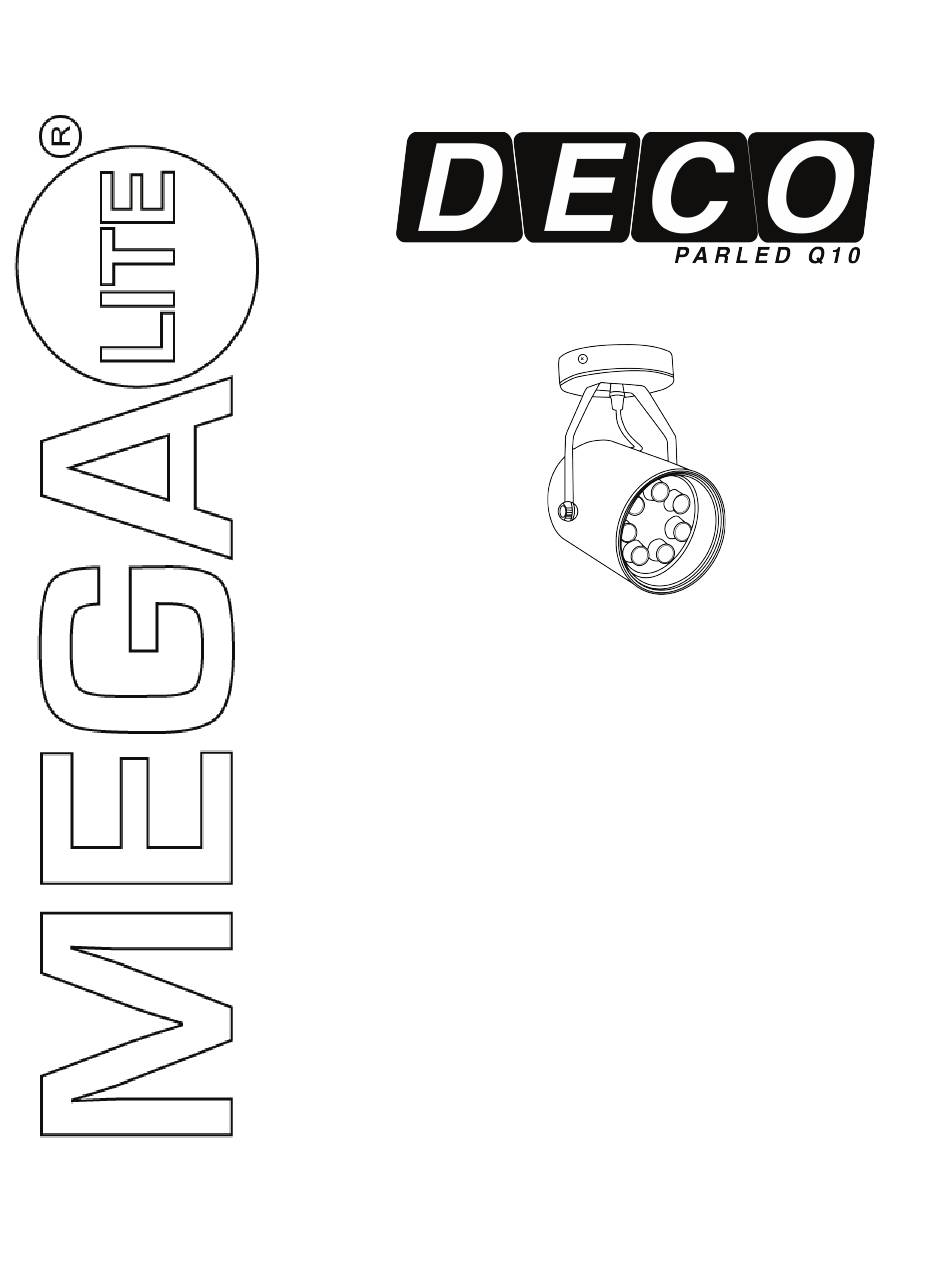

USER MANUAL Table of Contents Safety Information......2 What’s Included......2 Specifications........3 Main Power Connection....4 DMX Driver........4 Installation........5 Size & Weight........6 Cleaning & Maintenance....7 Warranty........8 Customer Service......9... -
Page 2: Safety Information
And there is protection against water splashes from entering the fixture from any direction. What is Included 1pc Deco Parled Q10 1pc Diffusion Filter 1pc User Manual... -
Page 3: Specifications
Specifications Part Numbers Fixture 5054 - Deco Parled Q10 Mechanical Specifications Housing: Aluminum Fastening System: Electrical Box Mount Power Connection: RJ45 In and Out Cable Length: 6 inch Lens Angle: 27° Size: 4.72” x 4.72” x 9.75” Weight: 2.2lb Electrical Specifications... -
Page 4: Main Power Connection
RJ45 Y jumper cable can be connected on ether side for input or output. DMX-512 Control When using the Deco Parled Q10 with Deco Drivers the fixture is intended to be used in Ch4 or Ch7 modes. The Deco Driver will be required to be set in Ch4 or Ch7 dmx operating modes. -
Page 5: Installation
Step 4: Cover the last unused output connection with the Fig3 RJ45 cover that is removed from the Deco Driver output. Step 5: Secure the fixture to the mounting brace using fixture (Fig3 ) screws. -
Page 6: Size & Weight
Size and Weight 4.72” 9.75” 3.5” 4.72” Fixture Size: 4.72” X 4.72” X 9.75” Fixture Weight: 2.2lb Packaged Size: 5.5” X 5.5”X 11.5” Packaged Weight: 2.5lb... -
Page 7: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance.The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points must be considered during the inspection: 1)All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing). -
Page 8: Warranty
General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2. -
Page 9: Customer Service
Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210)684-2600 Service@mega.lighting...
