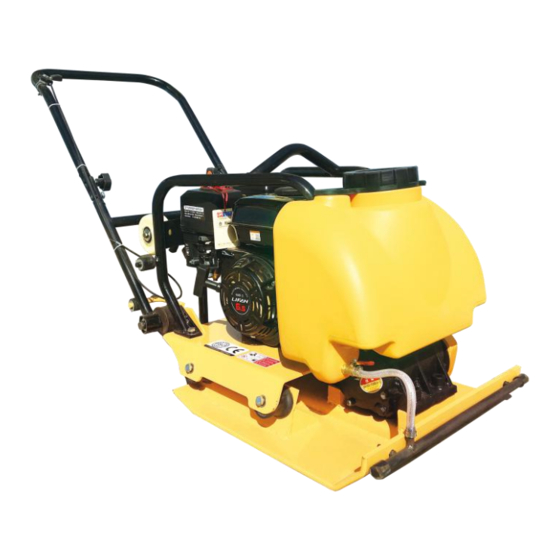

- Page 1 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com OPERATION MANUAL FPC90 Vibratory Plate Compactor P E R F O R M A N C E · E F F I C I E N T · R E L I A B L E...
- Page 2 YOU MUST READ and STUDY this manual carefully. Be sure to always keep it ready for reference Produced By Henan Master Machinery Co.,Ltd Dear Customer, Thanks for choosing Master machine.
- Page 3 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com FOREWARD ◇For your own safety and protection from bodily injuries, carefully read, understand and follow the safety instructions in this manual. ◇Please operate and maintain your machine in accordance with the instructions in this manual.
-
Page 4: Safety Precautions
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com SAFETY PRECAUTIONS Familiarity and proper training are required for the safe operation of equipment. Equipment operated improperly or by untrained personnel can be dangerous﹗Read the operating instructions contained in both this manual and the engine manual and familiarize you with the location and proper use of all controls. -
Page 5: Periodic Maintenance Schedule
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children. ALWAYS operate screed with all safety devices and guards in place and in working order. -
Page 6: Fuel Recommendations
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com Check and tighten external ● hardware. Check and ● ● tighten belt Clean air cleaner ● elements. Check shock ● mounts Change engine ● ● Clean cooling ● system Check and clean ●... -
Page 7: Starting The Engine
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com STARTING THE ENGINE a. Move the fuel valve lever to the ON position. b. Move the choke lever to the CLOSE position. If the engine is warm or the air temperature is high, move the control lever away from the OPEN position as soon as the engine starts. - Page 8 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com d. Turn the engine switch to the ON position. e. Pull the starter grip lightly until you feel resistance, then pull briskly. Return the starter grip gently. CAUTION! Do not allow the starter grip to snap back against the...
-
Page 9: Stopping The Engine
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com f. If the chock lever or chock rod (applicable types) has been moved to the CLOSED position to start the engine, gradually move it to the OPEN position as the engine warms up. - Page 10 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com b. Turn the engine switch to the OFF position. c. Turn the fuel valve lever to the OFF position.
-
Page 11: Operation
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com OPERATION Set-up the engine and operate the plate at a fully speed. Operator need push the plate gently when it compact on a slope. According to different kinds of soil, operator has to compact 3 times or 4 times to achieve the highest compaction performance. - Page 12 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com 2. Engine oil change Drain the used oil while the engine is warm. Warm oil drains quickly and completely. 1. Place a suitable container below the engine to catch the used oil, then remove the filler cap/dipstick, drain plug, and washer.
-
Page 13: Carburettor Adjustment
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com CARBURETTOR ADJUSTMENT 1. Start the engine outdoors, and allow it to warm up to operating temperature. 2. With the engine idling, turn the highest idle rpm screw in or out to the setting that produces the highest idle rpm. -
Page 14: Spark Plugs
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com SPARK PLUGS Recommended spark plugs: BPR6ES (NGK). For good performance, the spark plug must be properly gapped and free of deposits. Notice! An incorrect spark plug can cause engine damage. a. Disconnect the spark plug cap, and remove any dirt from around the spark plug area. - Page 15 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com AIR FILTER SERVICE A dirty air filter will restrict air flow to the carburetor, reducing engine performance. If you operate the engine in very dust areas, clean the air filter more often than specified in the MAINTENANCE SCHEDULE.
- Page 16 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com element in clean engine oil, and then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the foam. ADJUST BELT A new machine or a new belt should be check after 20 hours use, and then check the belt every 50 hours.
-
Page 17: Sound Specifications
Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com CLEAN THE PLATE BASE Clean up the base. If the engine working on a nasty environment, Clean up the dust in the cylinder, cylinder head radiator fin, flywheel, covers, revolves the strainer and the silencer region. - Page 18 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com TRANSPORT 1. Turn off the engine fuel valve when being transported on vehicles. 2. Make sure lifting has enough force lift machine (see nameplate on the machine). 3. The machine must be level and fixed when being transported Notice! Make sure drain fuel and oil when being transported.
- Page 19 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com Item Part NO. Part name Eccentric assembly Plate assembly Water Tank Bolt M8×20 Washer 8 Gasket 8 Nut M8 Belt guard mount Belt A-33 Washer 8 Bolt M8×40 Belt guard Clutch drum Bolt 5/16″×20...
- Page 20 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com Wheel Guide Handle Shock mount Gasket 12 Nut M12 Oil drain Washer 8 Bolt M8×55 Dampening pad(options) Dampening pad board I(options) Washer 10 (options) Bolt M10X25 (options) Dampening board (options) Belt enclosure cover...
- Page 21 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com 2. Eccentric assembly Item Part NO. Part name 10101 Bolt M10×30 10102 Shockmount plateⅡ 10103 Shockmount plateⅠ 10104 Mount 10105 Rubber Hose 10106 Washer 8 10107 Bolt M8×20 10108 Screw M10×10...
- Page 22 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com 10109 Waterspout 10110 Clamp 10111 Pulley 10112 End cap 10113 Seal FB30×42×7 10114 Bearing 6903C(1.5t) 10115 Lifting handle 10116 Washer 10 10117 Bolt M10×20 10118 Mount 10119 Base plate 10120 Plug M10×1×16 10121...
- Page 23 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com 3. Wheel and plate assembly...
- Page 24 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com Item Part NO. Part name 10201 Bolt M8×25 10202 Screw M12×25 10203 Nut M12 10204 Bolt M12×25 10205 Gasket 12 10206 Shockmount 10207 Retaining ring 20 10208 Shaft 10209 Gasket 8 10210 Detent 10211 Bolt M12×25...
- Page 25 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com 10216 Wheel Frame 10217 Wheel 10218 Washer 16 10219 Retaining ring 17 4. Water tank assembly Item Part NO. Part name 10301 Gasket 8 10302 Bolt M8×20 10303 Bracket 10304 Bolt M10×20...
- Page 26 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com 10305 Washer 10 10306 Shutoff valve 10307 Nut M12 10308 Washer 12 10309 Water Tank 10310 Seal 10311 Cap-water tank 10312 Sponge 10313 Cover tank 5. Clutch assembly...
- Page 27 Henan Master Machinery Co., Ltd Tel:(+86)17737606271 www.mastermachinerys.com Item Part NO. Part name 11301 Spacer 11302 Key 4.78×4.78×44 11303 Lock Washer 11304 Spring 11305 Shoe-clutch 11306 Center block 11307 Cover 11308 Clutch drum 11309 Bearing 6006-2RS 11310 Retaining Ring 30 11311...
