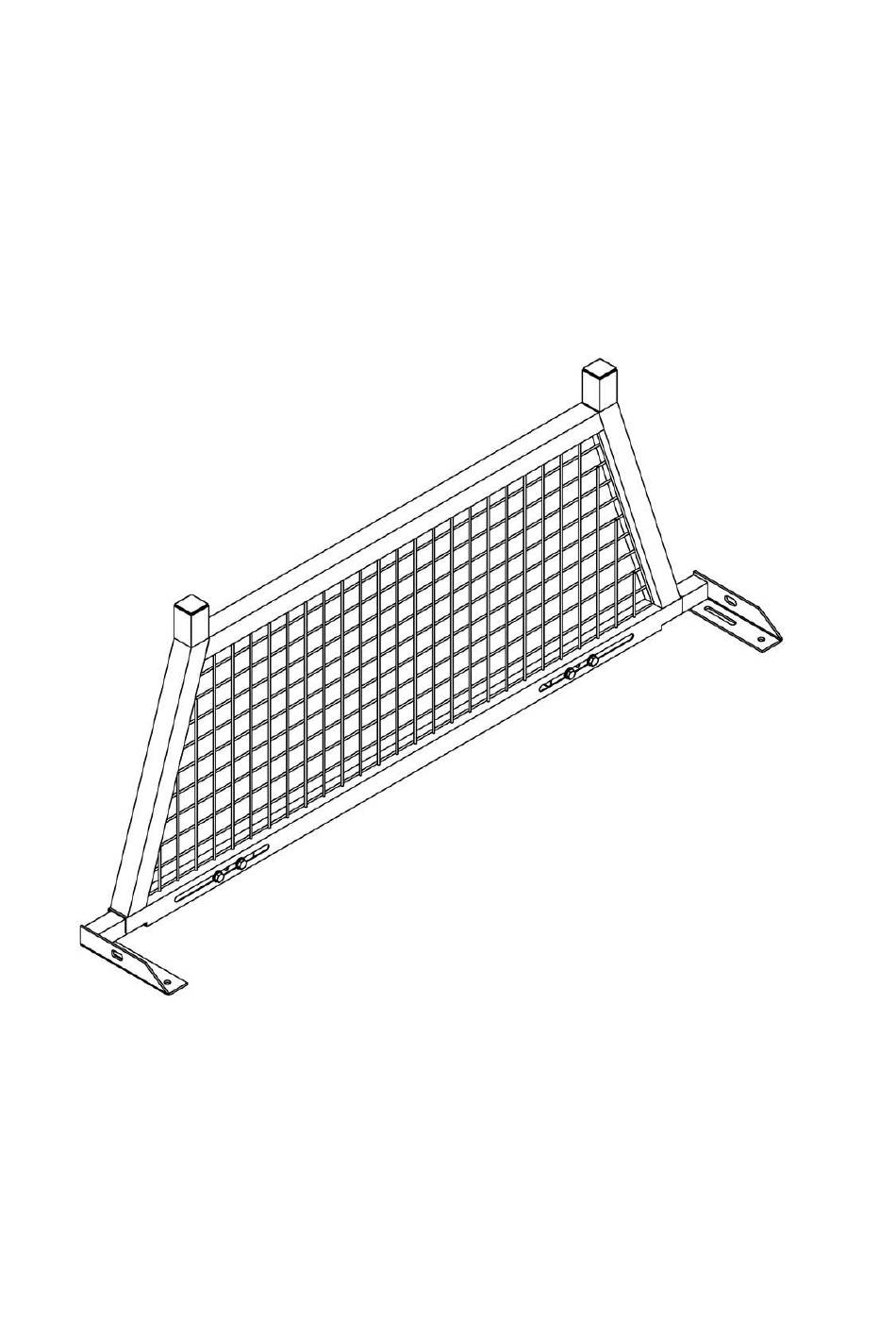

- Page 1 HA-RACK-V2 Steel Headache Rack...
- Page 2 Installation Steps 1. Identify the Left Side Brace and Right Side Brace and see how these braces slide into the lower horizontal tubing of the Rack (see photos below). Left Side Brace (10) Lower Horizontal Tubing Left Side Brace (10) Lower Horizontal Tubing Threaded Bolt with Washer (5 and 6)
- Page 3 photo below). The included Locking Plate is maneuvered down into the stake pocket and turned horizontal so it will accept the attachment Bolt (inserted with washer from the top, and locked in place with nut from the bottom). Drilling of a hole is required on each side of the top lip of the truck bed to accept a second attachment bolt (see photo above).
- Page 4 Explosion diagram and parts list Part Description Quantity Part Description Quantity End Cap Bolt (short) Rack Frame Bolt (long) Right Side Brace Spring Washer Locking Plate Washer Left Side Brace...
