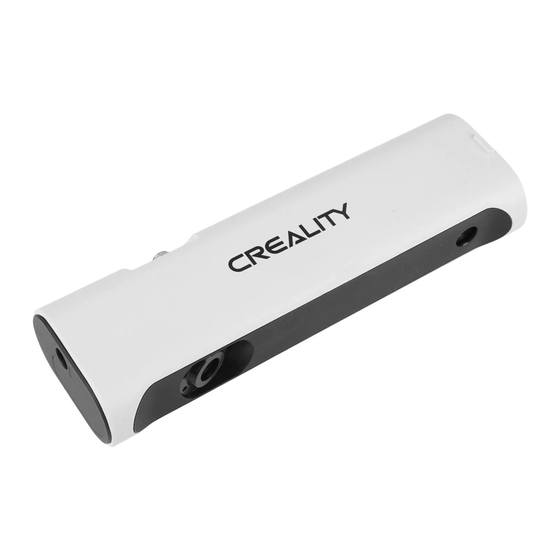

- Page 1 CR-Scan 01 Quick Guide > This installation manual is simple and easy for users who first contact with 3D scanner equipment. This paper introduces the connection method of hardware equipment, accessories description and software operation. For details, see digital user manual and video.
- Page 2 Instructions for use of accessories Product Name:CR-Scan 01 Model:CRS1 Standard kit DC12V/3V Plug AC100V-240V Power adapters TypeA USB3.0 TypeB USB3.0 Quick Lock DC12V/3A Connector Socket Mainframe > Power plug AC 100V-240V, the other end is connected to the scanner DC port >...
- Page 3 Upgrade kit Turntable Mode (Tripod) Universal ball joint Height adjustment Height adjustment locking ring Tripod Stabilizer Ring Plug MICRO USB Turntable data cable > Open the tripod as shown in the top picture, rotate the tripod stabilizer ring to fix the angle >...
- Page 4 Turntable mode (Turntable)
- Page 5 Hardware Installation Turntable mode Plug bump aligned with socket recess Pinch the pattern to pull out the plug Handheld mode > The power supply head is connected to 100V-240V AC, and the other end is connected to the scanner DC port >...
- Page 6 Precautions and maintenance > The lens is a sensitive optical device, please do not contact with water, grease or sharp objects > This product is a high precision measuring equipment, please do not use in solid smoke or heavy dust environment for a long time >...
- Page 7 Software usage instructions Main UI a. Function module page, showing the main function buttons b. Module switch button, you can switch between different functional modules c. Model display area, displaying model data in real time d. Data management list, used to manage scanning data results e.
- Page 8 First start up a. Click button，Select the Calib.txt file on the device's USB drive in Calib file b. Check if the SN number on the bottom of the device and the imported SN number match c. Click button,Complete the Calib file import and the software restarts automatically import Turntable mode 1.Preview adjust Perspective...
- Page 9 2.Initializing the turntable Turntable turns red overall a. Removal of scanned objects and debris from around the turntable b. Click the initialize button, and when only the turntable turns red, click the stop button 3.Start scanning Automatic rotary scanning of turntable a.
- Page 10 4.Automatic data processing a. Click on the processing button to start the fully automatic processing b. Check whether the data and corresponding parameters involved in the processing are appropriate and click the processing button c. Check whether the multi-positional alignment structure is correct, if not, enter manual alignment mode d.
- Page 11 Handheld mode 1.Start scanning a. Align with the object, the distance to maintain 500mm-900mm, start scanning b. As shown in the picture, take the lens on top of the scanner as the scanning center and align the scanned object c. After scanning the object in one pose, you can flip the object to scan multiple poses to get the complete model without missing 2.Automatic data processing a.
- Page 12 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used) and ethical principles, fulfill safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal liability under any circumstance.
- Page 13 3D Printing Industry Evangelist...
