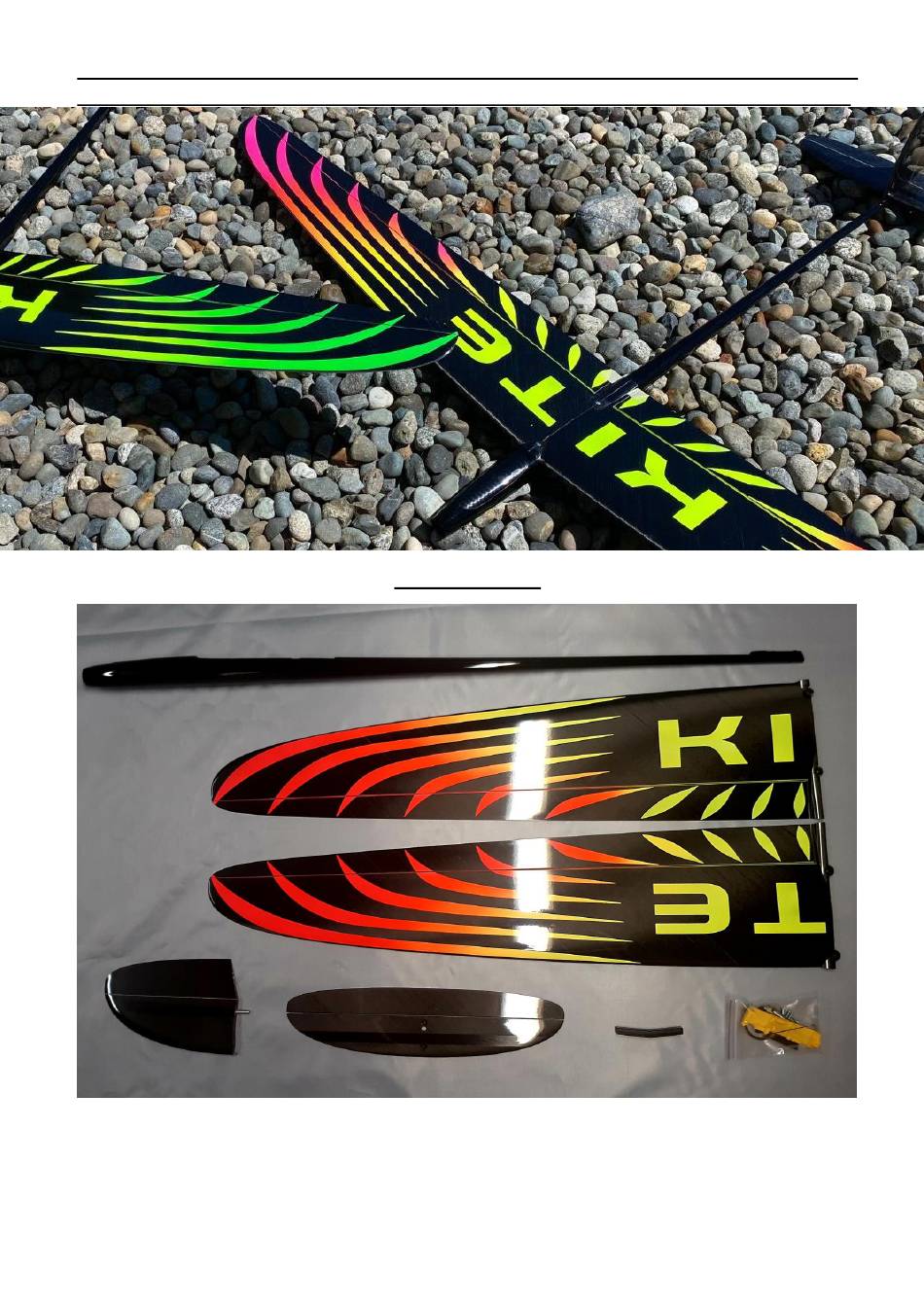

- Page 1 E-Kite 2P Soaring Models Assembly instruction 2021 Kit components Wing Wing joiner Stabilizer Fuselage with canopies Accessories...
- Page 2 E-Kite 2P Soaring Models Assembly instruction 2021 Accessories components Tail rods Ailerons horns Reinforcement for ailerons axis Fin screw M3*8 (+1 spare) Tail torsions Front wing screw M3*12 (+1 Aileron’s rods spare) Tube for tail rods Rear wing screw M3*10 (+1...
- Page 3 E-Kite 2P Soaring Models Assembly instruction 2021 Recommended electronic components Battery 2S 350-500 mAh Servos KST X-08H*4 Receiver 6-8 channels ESC 15-30 A Motor 1806 M5 shaft (CW thread) Tools and materials for assembling Ruler Files Sand paper Knife Cyanoacrylate...
- Page 4 E-Kite 2P Soaring Models Assembly instruction 2021 Tail assembling Cut the slots for the control horns with a knife according to the pictures. In rudder on the right side 5mm from the bottom. In elevator at the bottom side 2mm left from center.
- Page 5 E-Kite 2P Soaring Models Assembly instruction 2021 Wing assembling Clean up from foam slots for aileron horns and check is it fits good without glue.
- Page 6 E-Kite 2P Soaring Models Assembly instruction 2021 File out control horns axis and spot for axis gluing. Paste in control horns using epoxy with filler.
- Page 7 E-Kite 2P Soaring Models Assembly instruction 2021 While epoxy is liquid press down axis to the slot in wing and fix it with CA.
- Page 8 E-Kite 2P Soaring Models Assembly instruction 2021 Glue two layers of carbon about 8mm width from accessories set to reinforce axis fixation using CA and a piece of film Cut the rest of carbon and sand.
- Page 9 E-Kite 2P Soaring Models Assembly instruction 2021 Servos installation Cut servos control horns. Center distance should be about 7-8 mm. Expand holes close to the wall of fuselage with the file. Screw up 4 KST x-08h servos to servo tray.
- Page 10 E-Kite 2P Soaring Models Assembly instruction 2021...
- Page 11 E-Kite 2P Soaring Models Assembly instruction 2021 Connect rods to aileron horns and screw up wing to fuselage Set ailerons in zero position and ailerons servos about 20 degrees back.
- Page 12 E-Kite 2P Soaring Models Assembly instruction 2021 Fix servos with piece of foam and tape. Rods should be protected from falling out from horns with fuselage wall. If rods can fall out from horns, you can glue Aileron rod limiter to the fuselage wall.
- Page 13 E-Kite 2P Soaring Models Assembly instruction 2021 Make a hole for rudder wire at the middle line at the right side of fuselage...
- Page 14 E-Kite 2P Soaring Models Assembly instruction 2021 Lay wires through fuselage. Set neutral position of tail servos, rudder and elevator. Put on 20mm plastic tube to wire. Crimp the crimping tube with pliers. Fix plastic tube with CA.
- Page 15 E-Kite 2P Soaring Models Assembly instruction 2021...
- Page 16 E-Kite 2P Soaring Models Assembly instruction 2021 Repeat same operations for the second tail servo. For ease crimping inside fuselage you can make longer loop, fix crimping tube and wire in zero position using CA, extract it from fuselage and crimp it.
- Page 17 E-Kite 2P Soaring Models Assembly instruction 2021...
- Page 18 E-Kite 2P Soaring Models Assembly instruction 2021...
- Page 19 E-Kite 2P Soaring Models Assembly instruction 2021 Settings and flight modes Recommended CG position 72-76 mm from leading edge Normal flight – 2mm down Cruise - 0 Thermal – 4-9mm down Brakes – maximum down...
