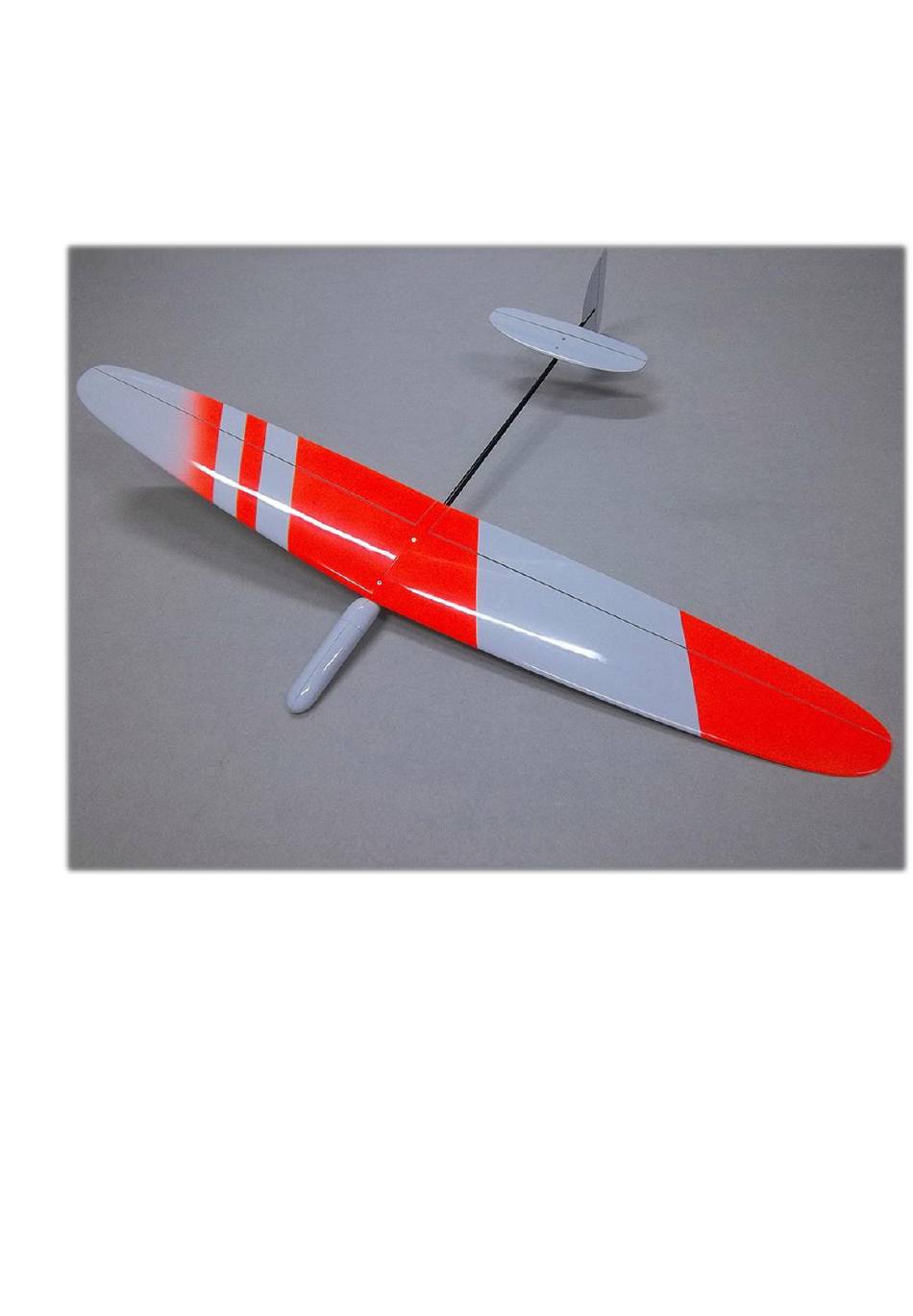

Mini Dart

Assembly instruction

1. Equipment, materials and tools for assembly.................................................2

2. Assembly..........................................................................................3

3. Setting of the model.............................................................................11

Need help?

Do you have a question about the MINI-DART and is the answer not in the manual?

Questions and answers

Summary of Contents for SOARING MODELS MINI-DART

Page 1: Assembly Instruction
Mini Dart Assembly instruction 1. Equipment, materials and tools for assembly...…………..…………………………..2 2. Assembly..…………………………………………………………………………..3 3. Setting of the model.…………..……………………………………………………..11...
Page 2 Mini Dart Assembly instruction………………………………………………….SoaringModels 1. Equipment, materials and tools for assembly Picture 1.1. Supply kit 1 – Wing; 11 – Rod tips (4 pieces); 2 – Fuselage; 12 – Thermal shrinkage; 3 – Stabilizer; 13 – Plumage pylons (2 pieces); 4 –...
Page 3 Mini Dart Assembly instruction………………………………………………….SoaringModels Materials and tools for the installation of the model: 1) Liquid superglue (Akfix 702); 2) Superglue activator; 3) Epoxy; 4) Masking tape; 5) Sandpaper №240-320; Ø Ø 6) Drills 7) Needle file (round and flat); 8) Pliers; 9) Screwdriver;...
Page 4 Mini Dart Assembly instruction………………………………………………….SoaringModels Picture 2.2. Pasting in the pylons of Picture 2.3. Pasting in the pylons of the the ailerons elevating rudder 2.2. Pasting in the keel Set up the wing and the stabilizer, insert the keel into the groove, set it vertically and carefully pour it with superglue.
Page 5 Mini Dart Assembly instruction………………………………………………….SoaringModels 2.3. Installing machines and plumage rods Mark out the holes for Bowden tubes, transmitter antennas and wires of the aileron Ø machines with a pencil, drill with a 2-mm drill and finish with a needle file. Picture 2.5.
Page 6 Mini Dart Assembly instruction………………………………………………….SoaringModels Cut off two 60-mm-long tubes, glue them like in the picture 2.7, glue the other 5- mm-long ones with superglue to the beam with the pace of 50-60 mm Picture 2.7. Pasting in the Bowden tubes Cut off the eyelets on machines, wrap them with masking tape and, if possible, with thin strong thread.
Page 7 Mini Dart Assembly instruction………………………………………………….SoaringModels Temporarily glue 2 machines and an accumulator with tape to the beam in the most forward position. Make sure the cap can be put on and machine rockers don’t touch it. Glue the machines to the beam using superglue. Picture 2.10.
Page 8 Mini Dart Assembly instruction………………………………………………….SoaringModels Picture 2.12. Installing the aileron machines. 2.5. Inserting the dowel for throwing Round the dowel with sandpaper until the shape is comfortable for you to use Picture 2.13. Dowel for throwing...
Page 9 Mini Dart Assembly instruction………………………………………………….SoaringModels Picture 2.14. Inserting the dowel for throwing. At the distance of 15 mm from the wingtip drill a hole for the dowel and then finish it with a needle file. Spread the holes inside with epoxy, insert the dowel and form a rounding as it is shown in the picture.
Page 10 Mini Dart Assembly instruction………………………………………………….SoaringModels 2.6. Installation of the aileron rods Insert the rode into the pylon, denote the position of the hole of the machine rocker with a marker, bend the edges of the rods with pliers. Picture 2.15. Installation of the aileron rods 2.7.
Page 11 Mini Dart Assembly instruction………………………………………………….SoaringModels 2.8. Final assembly Fix the rods in the pylons by the pieces of the thermal shrinkage (except the elevating rudder rod) Picture 2.17. Fixation of the rods in the pylons Stretch the wires of the aileron machines out through the hole in the nozzle and attach the wing with...
Page 12 Mini Dart Assembly instruction………………………………………………….SoaringModels 3. Setting of the model Set up the receiver and establish the alignment at the distance of 50-52 mm from the front edge. We recommend setting up 5 flight modes on the transmitter Starting - 0,5mm up High-speed - 0 Regular flight -1,5mm down Thermal –...
