Kite
Assembly instruction
Kit components
1- Wing
2- Fuselage
3- Fin
4- Stabilizer
5- Rod tubes
6- Accessories

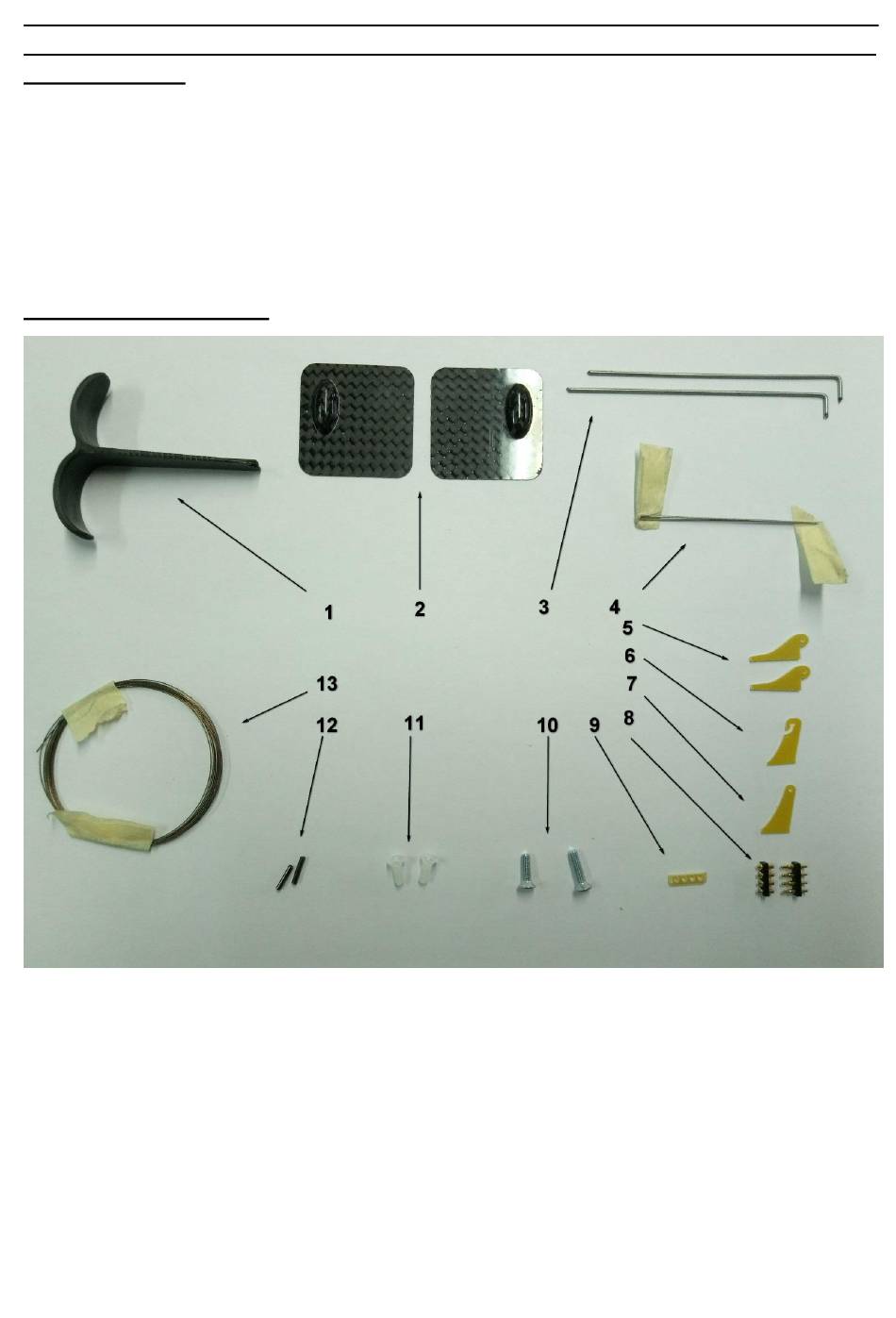

Accessories components
1- T-peg
2- Servo covers
3- Aileron's rods
4- Tail torsions
5- Aileron's horns
6- Stabilizer horn
7- Fin horn
8- Connector
9- Connector's mount for fuselage
10- Wing screws M3*10, M3*12
11- Tail screws M3*6
12- Crimping tubes for tail rods
13- Tail rods
1
SoaringModels
2019
Advertisement
Related Manuals for SOARING MODELS Kite
Summary of Contents for SOARING MODELS Kite
- Page 1 Kite SoaringModels Assembly instruction 2019 Kit components 1- Wing 2- Fuselage 3- Fin 4- Stabilizer 5- Rod tubes 6- Accessories Accessories components 1- T-peg 8- Connector 9- Connector’s mount for fuselage 2- Servo covers 3- Aileron’s rods 10- Wing screws M3*10, M3*12...
- Page 2 Kite SoaringModels Assembly instruction 2019 Recommended electronic components 1- Battery 1S 250-350 mAh 2- KST X-08H *2 + Dymond D-47 *2 or KST X-08H *2 + KST X-08 *2 3- Receiver 4-8 channels 4- 400 mm servo wires 22 AWG...
- Page 3 Kite SoaringModels Assembly instruction 2019 Mounting of control horns Cut the slots for the control horns and aileron rods with a knife according to the pictures. In rudder on the right side in the middle. In elevator at the top side.
- Page 4 Kite SoaringModels Assembly instruction 2019 File out control horns before gluing. Paste in control horns using epoxy.
- Page 5 Kite SoaringModels Assembly instruction 2019 T-peg installation Prepare t-peg for gluing using file Make a slot for peg using knife, file and wire. Fill slot with epoxy and paste t-peg...
- Page 6 Kite SoaringModels Assembly instruction 2019 Servos installation Clean pockets from foam Mark hole position on aileron’s rod, ailerons should be 8-9mm down and servos in zero position. Bend the rod.
- Page 7 Kite SoaringModels Assembly instruction 2019 Soldering ailerons connector Make holes for wires in core from servos pockets to connector pocket. Cut original connectors (don’t forget to setup zero position before) and lay the wires through holes to connector pocket. Make soldering like at the picture...
- Page 8 Kite SoaringModels Assembly instruction 2019 If you don’t use servo frame add foam or balsa for total servos fixing If you use servo frames for KST X-08H glue it with epoxy to the pockets and fix servos with screws Fix servo covers with two-side tape...
- Page 9 Kite SoaringModels Assembly instruction 2019 Fuselage assembling Make holes for wires and tubes Glue servos for tail with 26mm from forward of fuselage Lay rods through fuselage, put tubes on rods and glue them in holes of fuselage. Fix rods with tape temporary.
- Page 10 Kite SoaringModels Assembly instruction 2019 Lay extension into fuselage. Glue mount part to connector, keep movable parts from glue! Set connector into fuselage and check contact with wing. Make corrections with slot for connector with file if it needs. Glue connector’s mount part to fuselage.
- Page 11 Kite SoaringModels Assembly instruction 2019 File out place for tail boom on fin surface Insert fin into slot in tail boom set it vertically and fix with cyanoacrylate...
- Page 12 Kite SoaringModels Assembly instruction 2019 Set neutral position of tail servos, rudder and elevator. Crimp tube on cable. On the end of elevator cable add 50-80mm spread or cable for easy assembling...
- Page 13 Kite SoaringModels Assembly instruction 2019 Settings and flight modes Recommended CG position 74-78mm from leading edge Launch mode – ailerons 1mm up Cruise - 0 Normal flight – 2mm down Thermal – 4-9mm down Brakes – maximum down...
