Delfield 407 Specifications

406 & 407 Undercounter Series
Models
• 406 Undercounter refrigerator single section on legs
• 407 Undercounter freezer single section on legs
• 406-CA Undercounter refrigerator single section on casters
• 407-CA Undercounter freezer single section on casters

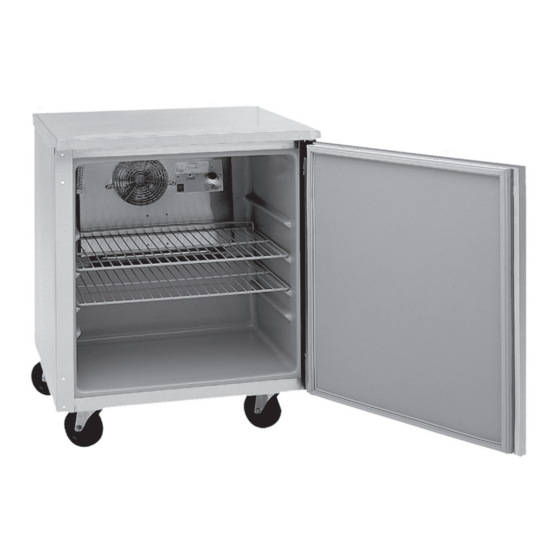

Model 406-CA

Specifications

Exterior bottom shall be heavy-gauge galvanized metal.
Exterior ends shall be heavy-gauge stainless steel.
Base interior shall be one-piece thermoformed ABS plastic
material, with integral shelf supports. ABS interior is
backed by a limited lifetime warranty. Base shall be fully
insulated with high-density foamed-in-place environmentally
friendly, Kyoto Protocol Compliant, Non ODP (Ozone
Depletion Potential), Non GWP (Global Warming Potential)
polyurethane.
Door shall have a heavy-gauge stainless steel exterior,
with a thermoformed ABS plastic interior liner, and shall be
fully insulated with foamed-in-place polyurethane. Door
handle shall be black, recessed ABS. Cabinet shall have (2)
adjustable epoxy-coated wire shelves installed.
MODELS 406/406-CA REFRIGERATORS REFRIGERATION
SYSTEM
Refrigeration system shall use HFC-404A refrigerant.
Compressor shall be 1/5 h.p., with condenser coil and hot
gas condensate evaporator mounted on rear of cabinet.
Evaporator coil and temperature control shall be mounted on
the interior rear wall of the cabinet. Refrigerant flow shall be
controlled by a capillary tube. Cabinet shall maintain 36°F to
40°F (2°C to 4°C) interior cabinet temperature.
MODELS 407/407-CA FREEZERS REFRIGERATION SYSTEM
Freezer system shall use HFC-404A refrigerant. Compressor
shall be 1/5 h.p., with condenser coil, hot gas condensate
evaporator and temperature control mounted on rear of
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Standard Features
• Features Delfield's exclusive ABS interior.
ABS is extremely durable - it won't dent,
chip or corrode and is backed by a limited
lifetime warranty
• Stainless steel front and sides
• Two epoxy coated wire shelves, standard
per unit
• Environmentally friendly R404A refrigerant
• Foamed in place environmentally friendly,
Kyoto Protocol Compliant, Non ODP (Ozone
Depletion Potential), Non GWP (Global
Warming Potential) polyurethane cuts
energy costs
• Black recessed quick grip handle
• Rugged 6" high heavy duty metal legs
(models 406 & 407 only). Units with a "CA"
suffix are standard on 3" diameter (3.75" ride
height) casters
• All units come standard hinged right and
may be changed at the factory at no charge.
Indicate when order is placed
• 6' cord and plug supplied
• One year parts and 90 day labor standard
warranty
cabinet. Evaporator coil shall be mounted on the interior rear
wall of the cabinet. Refrigerant flow shall be controlled by
a capillary tube. Cabinet shall maintain -5°F to 0°F (-21°C to
-18°C) interior cabinet temperature.
System is controlled using Delfield's ACT-Advanced Control
Technology electronic temperature control, which provides
improved pull down times, reduces compressor cycling and
longer compressor life with lower energy consumption.
Electrical connections shall be 115 volt, 60 Hertz, single
phase. Unit shall have a 6' (1.8m) long electrical cord and
NEMA 5-15P plug. Cord and plug shall be located on rear of
cabinet, 16" (40.6cm) above floor, 5" from the left side.
406/407
Equipment is shipped with loose 6" (15.2cm) high metal legs
with black enamel finish unless mounting is specified on
original sales order. Exterior top shall be one-piece, heavy-
gauge stainless steel with front edge turned down to form
nosing and rear edge turned down.
406-CA/407-CA
Equipment is shipped with loose 3" diameter (3.75" ride
height) casters high casters (two locking and two non-
locking) unless mounting is specified on original sales order.
Exterior top shall be one-piece, heavy-gauge aluminum with
all edges turned down.
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
www.delfield.com
Options &
Accessories
• Stainless steel back
• Plastic laminate on front
• Additional shelf
• Stainless steel single-tier overshelf
• 2" diameter (2.5" ride height)
casters
• 5" diameter (6" ride height) casters
• Model 409 stacking collar
• Door lock
• 220 volt, 50 Hertz electrical system*
* This option will alter the unit's
electrical specifications
