E2S GNExS1R Series Instruction Manual page 6

Figure Voltage Configuration
See documents D190-06-001 for DC schematic diagrams.
1a DC Single Stage Configuration
1b DC Two Stage Configuration
1c DC Three/Four Stage Configuration
2 DC Three/Four Stages. Voltage Free 2nd, 3rd &
4th Stage Activation Configuration
3 DC Two Stage Configuration
4 DC Two Stage Configuration
5 DC Two/Three Stage Voltage Free Activation
Configuration
6 DC Three/Four Stage Configuration
See documents D190-06-005 for AC schematic diagrams.
7a AC Single Stage Configuration
7b AC Three/Four Stage Configuration
8 AC Two Stage Voltage Free Activation
Configuration
Table 3: Summary of Wiring Options.
9) End of Line Monitoring (DC Units)
All DC units have a blocking diode fitted in their supply input
lines. An end of line monitoring diode or an end of line
monitoring resistor can be connected across the +ve and –ve
terminals in the flameproof chamber. If an end of line resistor
is used it must have a minimum resistance value of 3k3 ohms
and a minimum wattage of 0.5W or a minimum resistance
value of 500 ohms and a minimum wattage of 2W.
The resistor must be connected directly across the +ve and -
ve terminals as shown in the following drawing. The resistor
leads should be kept as short as possible. See D190-06-001
for details.

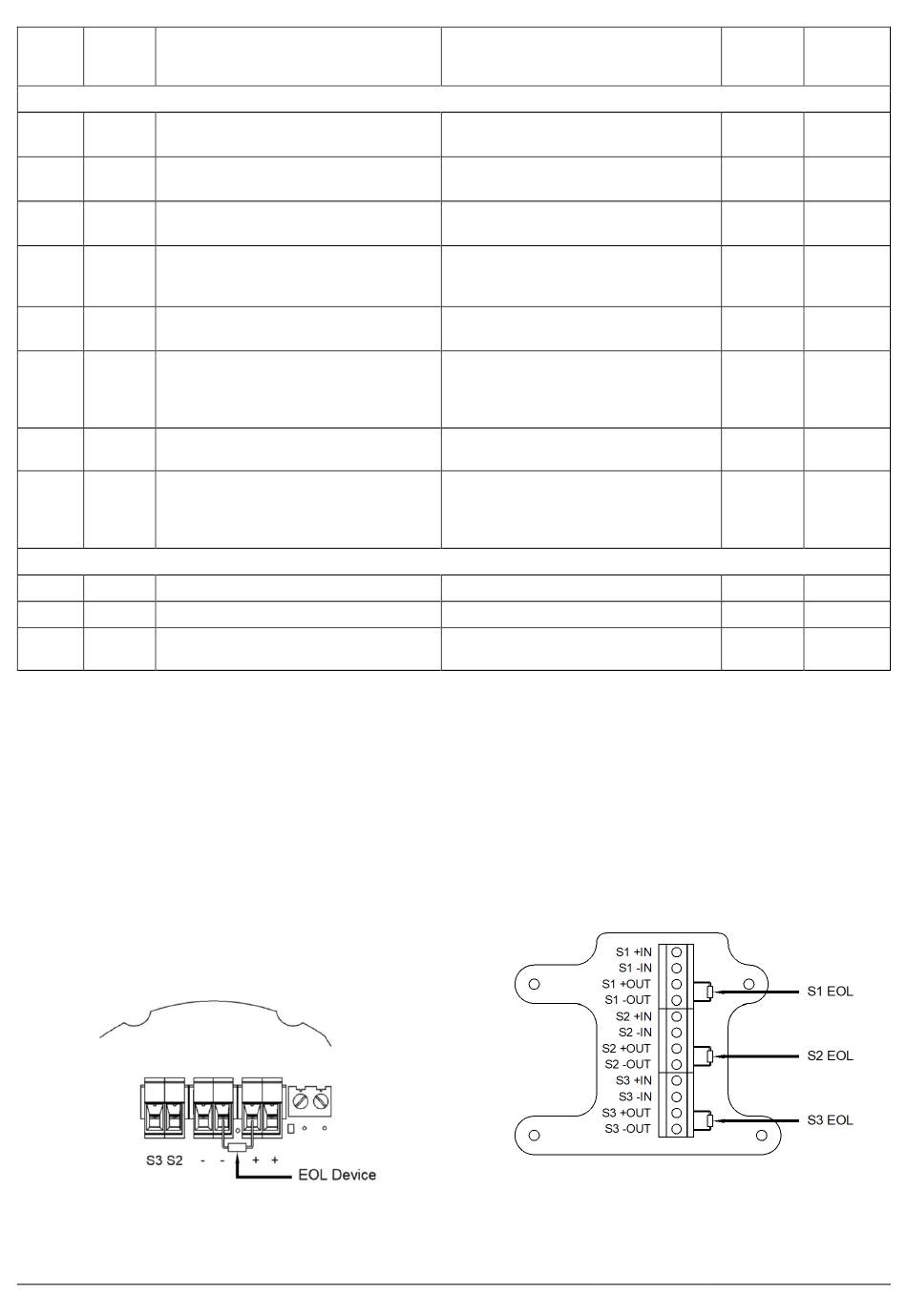

Figure 10: End of Line Resistor placement.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D157-00-001-IS
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Issue 7 02-11-21
Line monitoring
Positive Switching
Common Negative
Positive Switching
Common Negative
Positive Switching
Common Positive
Customer Set H1 & H2 to Negative
Switching
Independent Stage Input
Reverse Polarity Stage Monitoring
Line Stage Monitoring (Use suitable
monitoring relays/ modules)
Not to be used in reverse polarity
monitoring
Independent Stage Input
Line Stage Monitoring (Use suitable
monitoring relays/ modules)
Positive Switching (Default)
9.1. Custom DC Multi-Stage End Of Line Monitoring
An optional 12-way terminal module is available to enable up
to four alarm stages to be activated from three DC voltage
output channels. The three alarm stage activation inputs can
be independently monitored.
Refer to Schematic D190-06-001, Config. 6.
Specify Product option 'V' when ordering.
Spare part code for field installation: SP78-0001
Figure 11: End of Line Resistor placement – Optional 12-Way
Terminal Module.
