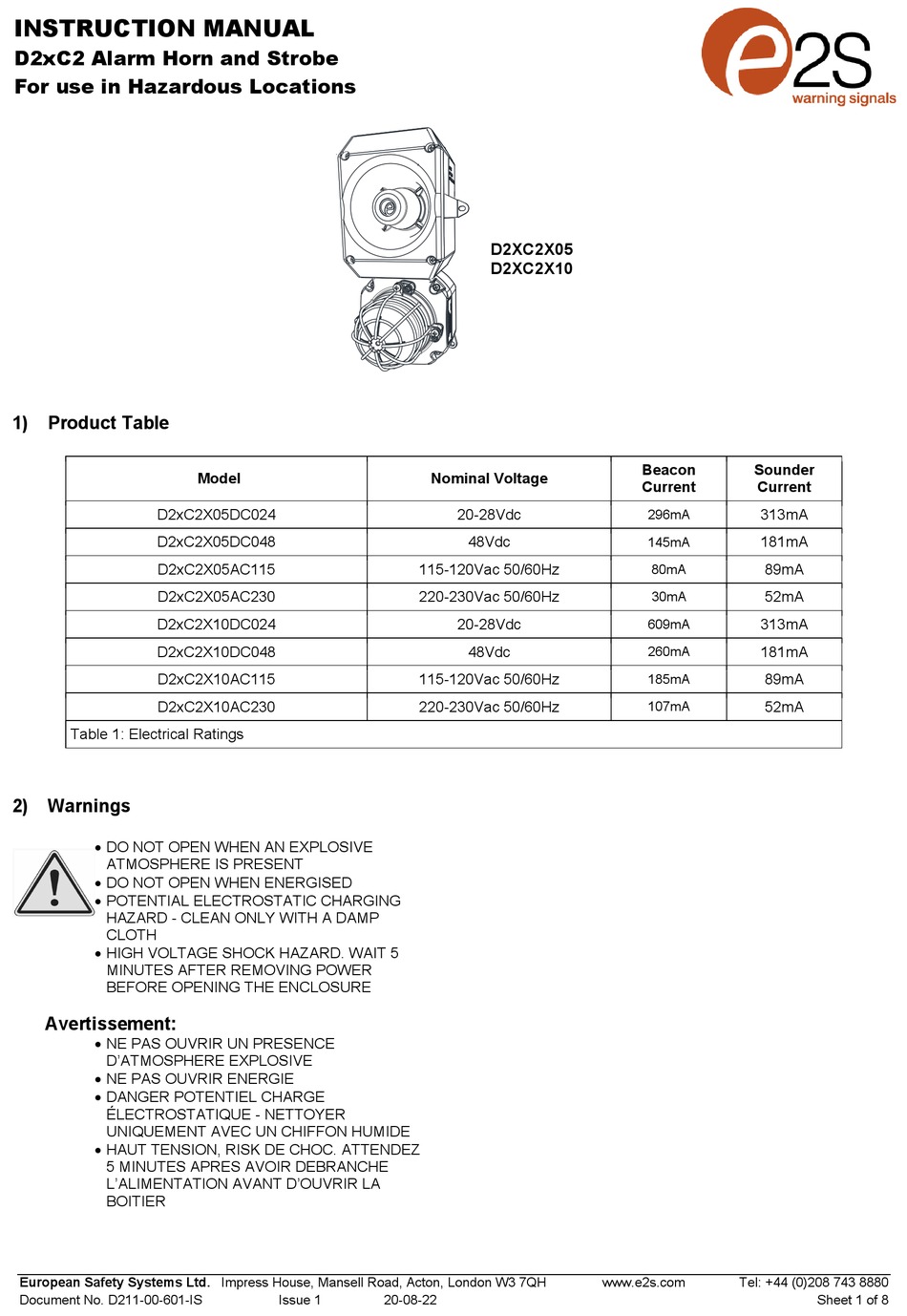

INSTRUCTION MANUAL
D2xC2 Alarm Horn and Strobe
For use in Hazardous Locations
1) Product Table
D2xC2X05DC024
D2xC2X05DC048
D2xC2X05AC115
D2xC2X05AC230
D2xC2X10DC024
D2xC2X10DC048
D2xC2X10AC115
D2xC2X10AC230
Table 1: Electrical Ratings
2) Warnings
DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
DO NOT OPEN WHEN ENERGISED
POTENTIAL ELECTROSTATIC CHARGING
HAZARD - CLEAN ONLY WITH A DAMP
CLOTH
HIGH VOLTAGE SHOCK HAZARD. WAIT 5
MINUTES AFTER REMOVING POWER
BEFORE OPENING THE ENCLOSURE
Avertissement:
NE PAS OUVRIR UN PRESENCE
D'ATMOSPHERE EXPLOSIVE
NE PAS OUVRIR ENERGIE
DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON HUMIDE
HAUT TENSION, RISK DE CHOC. ATTENDEZ
5 MINUTES APRES AVOIR DEBRANCHE
L'ALIMENTATION AVANT D'OUVRIR LA
BOITIER
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D211-00-601-IS
Model
Issue 1
D2XC2X05
D2XC2X10
Nominal Voltage
20-28Vdc
48Vdc
115-120Vac 50/60Hz
220-230Vac 50/60Hz
20-28Vdc
48Vdc
115-120Vac 50/60Hz
220-230Vac 50/60Hz
20-08-22
Beacon
Sounder
Current
Current
313mA
296mA
181mA
145mA
89mA
80mA
52mA
30mA
313mA
609mA
181mA
260mA
89mA
185mA
107mA
52mA
www.e2s.com
Tel: +44 (0)208 743 8880
Sheet 1 of 8
Advertisement
Table of Contents
Related Manuals for E2S D2xC2 Series
Summary of Contents for E2S D2xC2 Series
- Page 1 HAUT TENSION, RISK DE CHOC. ATTENDEZ 5 MINUTES APRES AVOIR DEBRANCHE L’ALIMENTATION AVANT D’OUVRIR LA BOITIER European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D211-00-601-IS Issue 1 20-08-22...
- Page 2 Class II Div 2 FG T6 Ta -40°C to +50°C Class III Div 1&2 Ta -40°C to +50°C European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D211-00-601-IS Issue 1...
-
Page 3: Special Conditions For Safe Use
To maintain the ingress protection rating, the two off cable entries must be fitted with suitably rated, certified cable entry and/or blanking devices during installation. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D211-00-601-IS Issue 1... -
Page 4: Cable Connections
For use in explosive dust atmospheres, a minimum ingress protection rating of IP6X must be maintained. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D211-00-601-IS Issue 1... - Page 5 8b. A spacing of at least 1/16” (1.58mm) must be provided through air and over surfaces between uninsulated live parts. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D211-00-601-IS...
-
Page 6: Dip Switch
Units must not be opened while an explosive atmosphere is The Beacon lens cover is interchangeable, contact E2S Ltd present. for a replacement lens cover available in various colours. If opening the unit during maintenance operations a clean... - Page 7 0 1 1 1 1 0 150mS off 0.15s Intermittent __________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH sales@e2s.com Tel: +44 (0)208 743 8880 www.e2s.com Fax: +44 (0)208 740 4200 Document No. D211-00-601-IS Issue: F...
- Page 8 1.7s 1450Hz 0.25s 1 1 1 1 1 1 Simulated Bell 0.69ms European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D211-00-601-IS Issue 1 20-08-22 Sheet 8 of 8...
- Page 9 137° -6 dB(A) 50° -6 dB(A) 180° 91 dB(A) 0° 88.5 dB(A) European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D211-00-601-IS-SC-UL Issue A 22-07-2022 Sheet 1 of 1...
- Page 10 ISSUE MOD No. REASON - INITIAL - DATE INTRODUCTION RSR 02-01-2020 OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED, TO OPERATE SOUNDER AND BEACON WIRING LINKING BEACON & SOUNDER REQUIRED MINIMUM VALUES: UPDATED FORMAT INDEPENDENTLY, REMOVE FACTORY FACTORY FITTED 24VDC : 1KΩ MIN, 2W MIN OR 3K9Ω MIN, 0.5W MIN DH 17-05-2022 FITTED WIRES LINKING THE UNITS 48VDC : 3.9KΩ...
-
Page 11: Eu Declaration Of Conformity
Other Standards and Regulations EN 60529:1992+A2:2013 - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-061_Issue_J (D2x).docx - Page 1 of 2 - QAF_252_Issue_5... - Page 12 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-061_Issue_J Quality Assurance Manager Date and Place of Issue: London, 22/08/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-061_Issue_J (D2x).docx - Page 2 of 2 - QAF_252_Issue_5...
- Page 13 Other Standards and Regulations EN 60529:1992+A2:2013 ‐ Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-102_Issue_A - Page 1 of 2 - QAF_252_Issue_5...
- Page 14 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC‐102_Issue_A Quality Assurance Manager Date and Place of Issue: London, 22/08/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-102_Issue_A - Page 2 of 2 - QAF_252_Issue_5...
