Summary of Contents for Blastrac BMP-215 E/B
- Page 1 Original instructions in English language OPERATING INSTRUCTIONS BMP-215 E/B VERSION 2.4...
-
Page 2: Maintenance Log
Inspection comments Inspection before initial operation on: __________________________________________ __________________________________________ Date of initial operation: __________________________________________ Serial number & Year of manufacture: __________________________ _____________ Recurring inspections / maintenance log Date / Hour counter Findings Repairs / Cleaning Test *Competent person... -
Page 3: Table Of Contents
Table of contents Maintenance log 1. Introduction 2. Machine description Accessories 3. Safety Work area safety Personal safety Machine safety Electrical safety Petrol version safety Dust collector safety Maintenance safety Transport safety Signs on the machine 4. Initial operation Checkpoints of electrical power supply Checkpoints of the petrol engine Checkpoints of the machine Manual moving of the machine... -
Page 4: Introduction

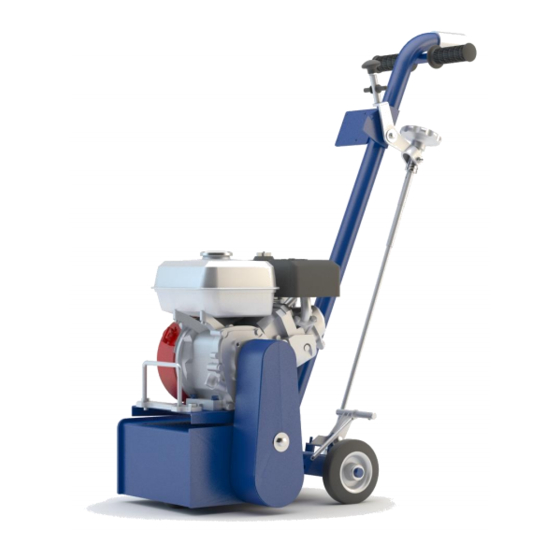

Always use common sense when working with machines. 2. Machine description The Blastrac scarifier BMP-215 can be supplied with a 110V, 230V or 400 volt electric motor or with a combustion engine. The intended use of this scarifier is to roughen up existing horizontal surfaces and removing coatings. -
Page 5: Accessories
For the BMP-215 B (Petrol engine) Please read the enclosed OWNER’S MANUAL of the petrol engine before operating the machine. The OWNER’S MANUAL contains important information about getting the best performance and safe operation of the petrol engine. The OWNER’S MANUAL should be considered a permanent part of the engine and should remain with the engine if resold. -
Page 6: Safety
3. Safety Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, explosions and / or serious injuries. Only authorized and trained personnel may operate this machine. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. -
Page 7: Machine Safety
Electrical cables must be rolled entirely off of the reels. c) Any damage to the electric cables and/or electrical components is not permitted. d) If the power supply cable or plug is damaged, it must be replaced immediately. Only use original Blastrac parts. -
Page 8: Petrol Version Safety
Don’t leave the machine laying backwards for a long time, because this may result in fuel spillage. Dust collector safety a) Always use a Blastrac dust collector to ensure a dust-free operation of the machine and clean air at the workspace. Also the airflow helps to cool the machine and prevents overheating. -
Page 9: Transport Safety
k) The suitable precautions include decontamination before disassembling the machine, adequate filtered ventilation of the exhaust air from the room in which it is disassembled, cleaning of the maintenance area and suitable personal protection equipment. Transport safety a) Be aware of your surroundings and machine operating level. Do not side hill, do not run on steep incline, this could cause machine to tip over. -
Page 10: Signs On The Machine
Signs on the machine The following stickers are placed on the machine. Meanings of these symbols are: Wear a dust mask class FFP2 or ! Danger Hazardous voltage in motor higher. even when solid state controller is OFF. Disconnect main power before servicing motor, controller or associated wiring. -
Page 11: Initial Operation
4. Initial operation Before using the machine it is of great importance to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints electrical power supply Use only extension cables for extending the main cable that are sized and marked in accordance with ... -
Page 12: Manual Moving Of The Machine
Manual moving of the machine To move the machine manually make sure the quick lift lever is in position 1 (see picture) Squeeze in the handles of the quick lift lever and pull it towards you until it clicks into place. The drum is now free from the surface. Release the brake from the left wheel with your foot and the machine can now be pushed around on its wheels. -
Page 13: The Scarifying Drum
Through the use of a few different flails or cutters, and with a few (see drawing below). alterations, it is possible to adjust the Blastrac scarifier for the applications or rather for the requirements of the specific surfaces. All the machines work according to the principle of a loose tool seated on an axle. -
Page 14: Control Devices
Control devices Lifting point Control box Quick lift lever Dust hose connection Fine adjustment Brake 1. Lifting point Used for lifting the machine with a crane or lift. 2. Control box The control box has a connection for electrical power, a green start-button and a red stop-button. Pressing the green start-button will start the electrical motor, and the drum will start rotating. -
Page 15: Operating
5. Operating During operating the BMP-215, the following additional safety instructions must be followed closely. Before switching on the machine make sure that no-one can be endangered when the machine starts up. All persons in the proximity of the machine must wear safety glasses with lateral protection as well as safety shoes and ear protection. -
Page 16: Switch Off The Machine
Make sure that no vehicles, such as forklift trucks and other equipment run over the electric cable and the dust hose. The selection of the correct advancing speed of the machine is important for a good result. In the case that the surface has different characteristics (e.g. -
Page 17: Maintenance
Pay attention to unusual noises or strong vibrations. Check for the cause of every big change. Call a technician if you have doubts about the cause or when a repair without a technician seems not possible without damages. Only use genuine Blastrac spare parts. Our specialists will be happy to assist you with more advice. -
Page 18: The Scarifying Drum
All repair work must to be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine. Any guarantee on the machine is expired when: Non original Blastrac parts have been used Repair work is not done by qualified Blastrac personnel ... -
Page 19: Troubleshooting
Troubleshooting Fault Possible cause Remedy Excessive vibration Imbalance due to worn or broken tools. Replace all worn or broken parts. or/and Unusual noises Defective bearing. Check the bearing on the axle drive shaft and replace if necessary. Check the tension of the belt, replace Wrong tension of the belt. -
Page 20: Technical Data
Suitable filter unit We will assist you with a good advice Design and specifications are subject to change without notice by Blastrac BV IMPORTANT NOTES: Noise and vibration measurements were taken during heavy operation on concrete. The noise and vibration levels depend on the working depth, which is in turn determined by the unevenness of the surface. - Page 21 Despite the fact that this guide is made with care, Blastrac takes no liability for errors in the manual and the possible consequences. We are naturally very interested in your findings and additions. No part of this publication may be reproduced...
- Page 22 BLASTRAC EUROPE WE’RE READY TO ASSIST YOU! BLASTRAC THE NETHERLANDS BLASTRAC POLAND BLASTRAC FRANCE EUROPEAN HEAD OFFICE SALES & SERVICE CENTRE SALES & SERVICE CENTRE Utrechthaven 12 Golina, ul. Dworcowa 47E ZI - 29, Av. des Temps Modernes NL - 3433 PN Nieuwegein...
