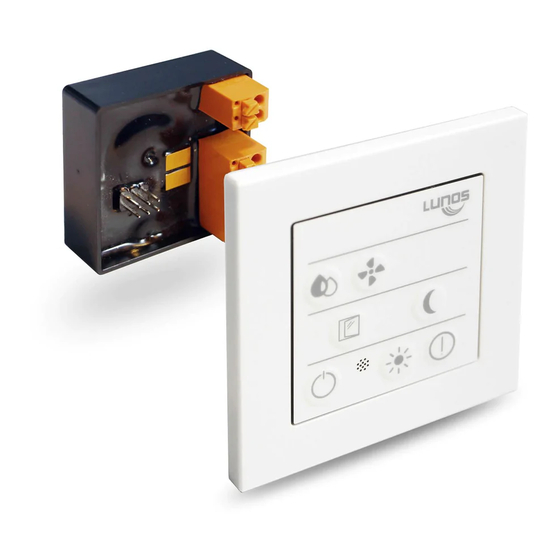

Installation and Operating Manual Smart Comfort 5/SC-FT - Please forward to the user - Contents: Page: About this manual, Safety instructions, Disposal Technical data, Shipping unit and dimensions Installation Electrical connection Specify the connected device type Programming mode DIP-switch settings... -
Page 2: About This Manual, Safety Instructions, Disposal
About this manual Read this manual carefully and completely before assembly! Always ob- serve the general safety instructions and the safety symbols with informa- tion in the text. Hand out this manual to the user (tenants, proprietors, property manage- ment etc.) after completing assembly. -
Page 3: Technical Data, Shipping Unit And Dimensions
Technical data Control Power supply units Operating voltage: 12 V DC Input voltage: 100 - 240 V AC Functional voltage range: 0 - 10 V Output voltage: 12 V DC Types: Operational switching current: max. 5 A Connected load: max. 60 W 5/NT18 Order No.: 039 973 5/NT60... - Page 4 Shipping unit and dimensions Operating element with frame □ □ Power supply Example 5/NT18 (not in the scope of delivery) Ø 55 Dimensions in mm...
-
Page 5: Installation
Installation The control unit, the operating element and the power supply can be appropriately installed in a standard switch box (90 mm deep), as shown. 90 mm Ø 60 If the power supply is installed at a Power supply (to be connected different location, a according to circuit diagram) Switch box 90mm... - Page 6 Installation Control unit Colour-marked wire Operating element (View from behind without frame) Plug the operating element and the control unit together correctly, using the colour-marked wire of the connection cable for orientation.
-
Page 7: Electrical Connection
Electrical connection Safety instructions Caution! Any assembly work may only be carried out after disconnecting the supply voltage! Before connecting the device to the mains voltage, make sure that all connection lines are voltage-free (dead)! (Separation from the power supply with a minimum contact opening of 3 mm, e.g. electric fuse). Each electric circuit of this ventilation system must be fitted with a resi- dual current protection (e.g. - Page 8 Electrical connection series e² (Coding-switch 3, 5, C) Colour-marked wire device 1;3;5 device 2;4;6 ex/sup sup/Abex rd bl pl rd bl pl + 12 blue S1 purple S2 purple Power supply e² Maximum number of connectable ventilation 5/NT18 units: 5/NT60 5/NT100 10 + 10...
- Page 9 Electrical connection e (Coding-switch 9) + - S1 + - S2 Connection Colour-marked wire board e + 12 V blue S1 purple S2 purple Power supply Maximum number of connectable ventilation 5/NT18 units: 5/NT60 5/NT100 5 + 5...
- Page 10 Electrical connection RA 15-60 (Coding-switch 0) Colour-marked wire + 12 V RA 15-60 blue purple Steuerung Power supply RA 15-60 Maximum number of connectable ventilation 5/NT18 units: 5/NT60 1 + 1 5/NT100 1 + 1 + 1...
- Page 11 Different types of devices via 5/UNI-FT (Coding-switch E) Colour-marked wire device 1 (e.g. e²) 0-10 V + 12 V + 12 V Steuerung device 2 (e.g. e 0-10 V The connection of the respective device type to the 5/UNI-FT can be found in the installation in- + 12 V structions for the 5/UNI-FT...
-
Page 12: Specify The Connected Device Type
Specify the connected device type The connected device type must be set on the coding switch according to the following table. It can basically be switched in five or eight stages. The listed nominal volume flows apply to the respective illuminated LED. DIP switch 2 can be used to choose whether the ventilation system should run with a permanent base load or whether it should be able to be switched off (see DIP switch settings). -
Page 13: Programming Mode
Programming mode De-energize the control, set the coding switch to position F and restore the power supply. The event LED flashes continuously and signals the activated programming mode. Briefly press the buttons listed below to activate and deactivate the respective function. The settings are accepted by pressing the ON / OFF button for 3 seconds. -
Page 14: Dip-Switch Settings
DIP-switch settings Interval operation OFF Factory settings Every 4 h for 30 min on stage 3 Every 2 h for 15 min on stage 3 1 2 3 4 White DIP-switch Without base ventilation Base ventilation, OFF during the night possible, max. 8 hours Landlord protection, permanent base vent. -
Page 15: Operating Element - Setting Options
Defining the operating time the summer mode of the summer mode Switching on the ventilation system Switching off the ventilation Setting of the LED system brightness level Resetting the filter replace- ment An advanced feature description can be found on www.lunos.de... -
Page 16: Symbol Descriptions
Symbol descriptions The Smart Comfort offers you the possibility to switch all functions of your ventilation devices and to recognize their current operating status. It contains a humidity sensor, which controls the ventila- tion devices appropriately automatic operation. Drop The humidity-sensitive automatic mode is activated or deacti- vated via the button with the drop symbol. - Page 17 Symbol descriptions Window The window symbol stands for the intensive ventilation mode. When actived, the LED next to the symbol illuminates conti- nuously and the fans change to the highest available ventilati- on stage. The mode automatically ends after the set time (factory setting: 30 minutes).
-
Page 18: Factory Settings
Symbol descriptions ON/OFF The brightness of the LEDs can be adjusted in a rolling manner by a simple push of this button. It is switched between OFF, dark and bright. If the button is pressed for three seconds, the ventilation system will be switched off completely. -
Page 19: Filter Replacement And Filter Cleaning
Filter replacement and filter cleaning The event LED of the operating Example inner screen e² element illuminates continuous- ly to signalise that a filter is Filter dirty. Remove the inner screen of the ventilation unit, remove the filter, insert the new or cleaned filter, put the inner screen back Reset the filter monitoring display by pressing the “Event“... - Page 20 Notes LUNOS Germany LUNOS Lüftungstechnik GmbH Phone +49 30 362 001-0 für Raumluftsysteme +49 30 362 001-89 Wilhelmstr. 31 info@lunos.de 13593 Berlin ∙ Germany www.lunos.de...
