Lunos 5/ZII Mounting Instructions

Micro controller time lag
Hide thumbs Also See for 5/ZII:

Advertisement

Quick Links

Application
The time lag module 5/ZII is a program-
mable control for fan motors:
Functions:
- Switch-on delay
- Time lag
- Inverse operation
- Interval switching
Coupling to room lighting is possible.
Inappropriate application is not admissi-
ble.
Technical Data:
Supply voltage 250VAC/50 Hz
Operating voltage range: 180 VAC to 275
VAC
Operating switching current: max. 0.5 A
Electr. power input: max. 115 W
Delay times: adjustable (refer to diagram
„Switch settings")
Factory setting:
- Switch-on delay 120 sec.
- Time lag 15 min.
- Interval switching OFF
- Inverse operation OFF
The time lag module is EMC-tested and
EMC-compatible.
Installation
The time lag module can be appropri-
ately installed, as illustrated, in a stand-
ard junction box or a standard switch
box (60 mm deep).
Mounting Instructions for the
Micro Controller Time lag Type 5/ZII
Order No.: 039857 - Please pass on to User -

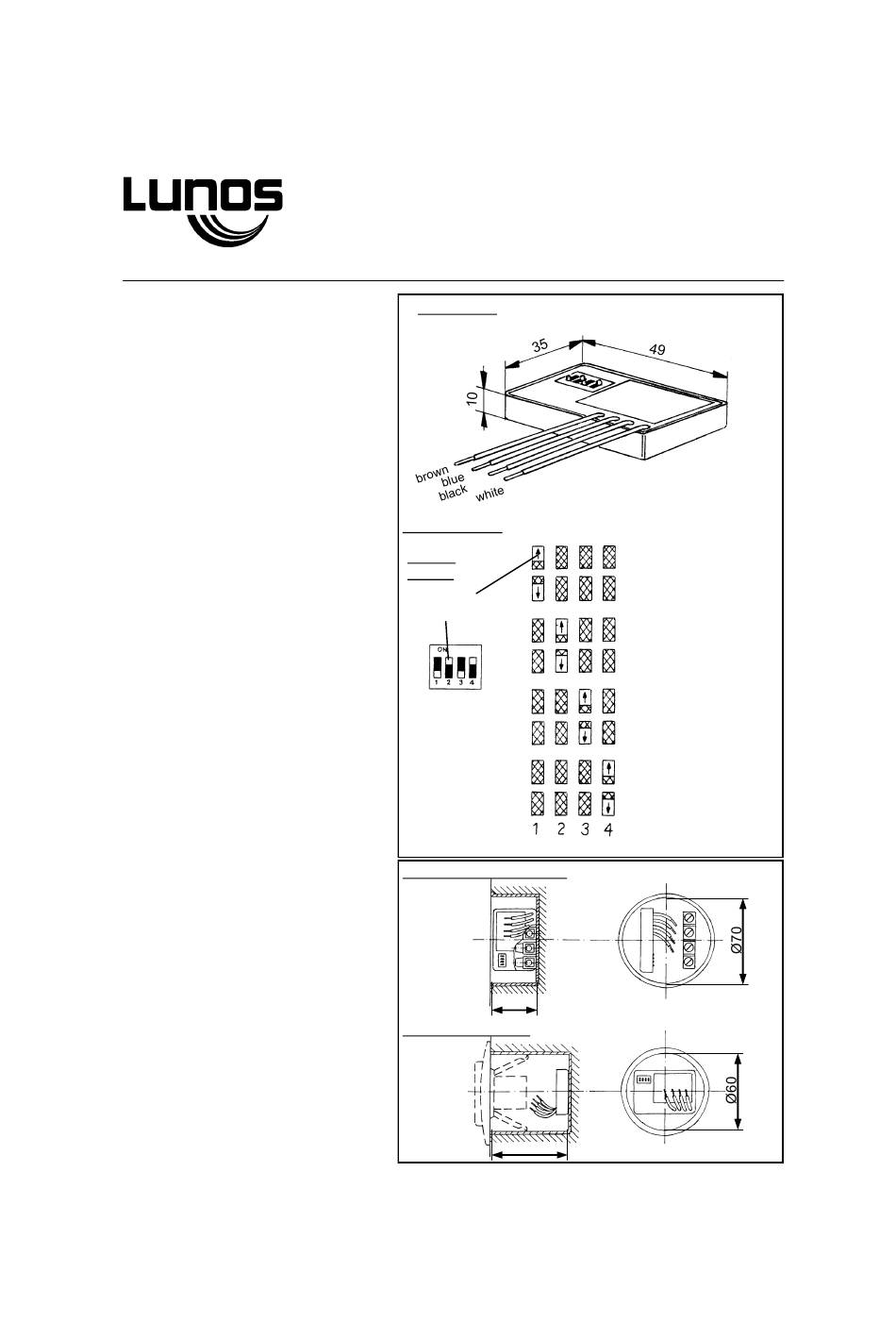

Dimensions:
Switch settings:
Factory
setting:
white switch
knob
- Switch-on
delay 120 sec.
- Time lag
15 min.
-Inverse oper-
ation OFF
- Interval
switching OFF
Installation in junction box
Installation in switch
Interval ON every 4
hours for 30 min
Interval OFF
Time delay 15 min
Time delay 6 min
Inverse operation ON 30 min
Time lag after leaving the
room *
Inverse operation OFF
Switch-on delay
120 sec.
Switch-on delay
0 sec.
* depending on the time lag
set
36
60
*
