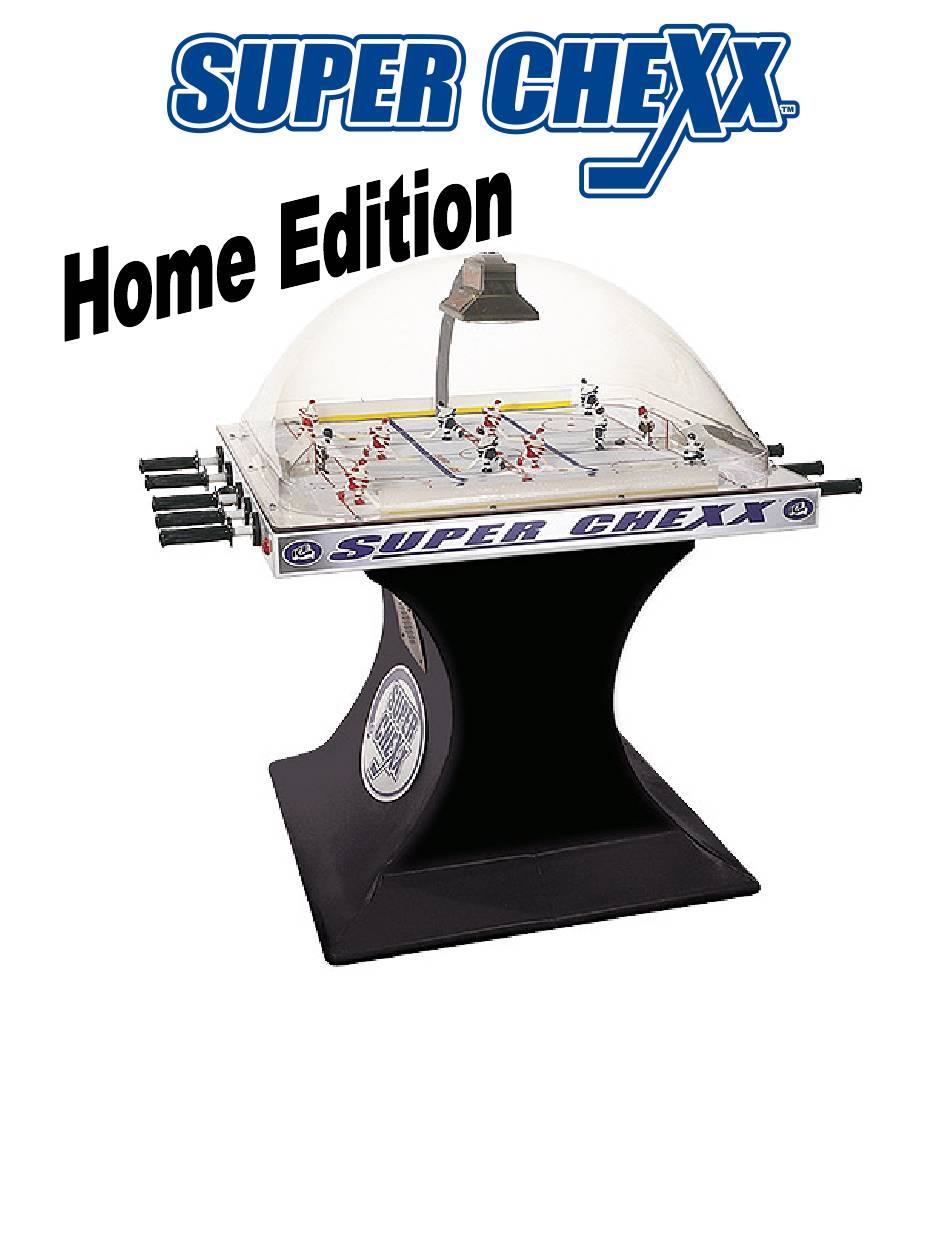

- Page 1 OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1-716-759-0360 FAX: 1-716-759-0884 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
- Page 2 Assembly & Setup Before you assembly your game you will need to plug in the three electrical connections first. The ribbon cable attaches to circle 3. The large white connector attaches to circle 2. The green wire plugs into circle 1. Now place the playfield on top of the base.
- Page 3 How To Split The Base Step 1: Disconnect the volume control pot located as shown to the right. Step 2: Remove the four wing nuts that hold the board mount to the base. Step 3: Lift board assembly out. Step 4: Lay board at bottom.
- Page 4 Step 5: Disconnect one sides speaker wires. Be careful not to break the tabs off the speaker. Note the colors of the wire to which tab they plug into. Step 6: Remove the two metal end covers by unscrewing the eight wing nuts per cover as shown.
- Page 5 (including labor) that is performed by such a distributor. Innovative Concepts in Entertainment 10123 Main St. Clarence, NY 14031 Phone #: (716) - 759 – 0360 Fax #: (716) – 759 – 0884 www.icegame.com...
