BONUS MARQUEE
INSTALLATION
OWNERS AND SERVICE MANUAL
INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.
10123 MAIN STREET, CLARENCE, NY 14031
SERVICE: 1-716-759-0360
FAX: 1-716-759-0884
E-MAIL: service@icegame.com
WEBSITE: www.icegame.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hoop Fever and is the answer not in the manual?

Questions and answers

Related Manuals for Icegame Hoop Fever

Summary of Contents for Icegame Hoop Fever

  • Page 1 BONUS MARQUEE INSTALLATION OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1-716-759-0360 FAX: 1-716-759-0884 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
  • Page 2 TABLE OF CONTENTS TABLE OF CONTENTS FEATURES……..………………………………………...PAGE 3 INTRODUCTION SET-UP…………..……………………...………………..PAGE 4 - 6 SET UP/ TESTING/ MAINTENANCE PROGRAMMING……………..…………………...…...PAGE 7 PROGRAMMING TROUBLESHOOTING……………………………..……PAGE 8 - 9 QUICK TROUBLESHOOTING 10-11 SERVICING……………………………………………...PAGE 10 PARTS LISTING……………………………...……..PAGE 11 GAME REPAIR 12-14 WARRANTY INFORMATION…………………………..PAGE 12 - 13 PARTS LISTINGS SCHEMATICS 16-32...

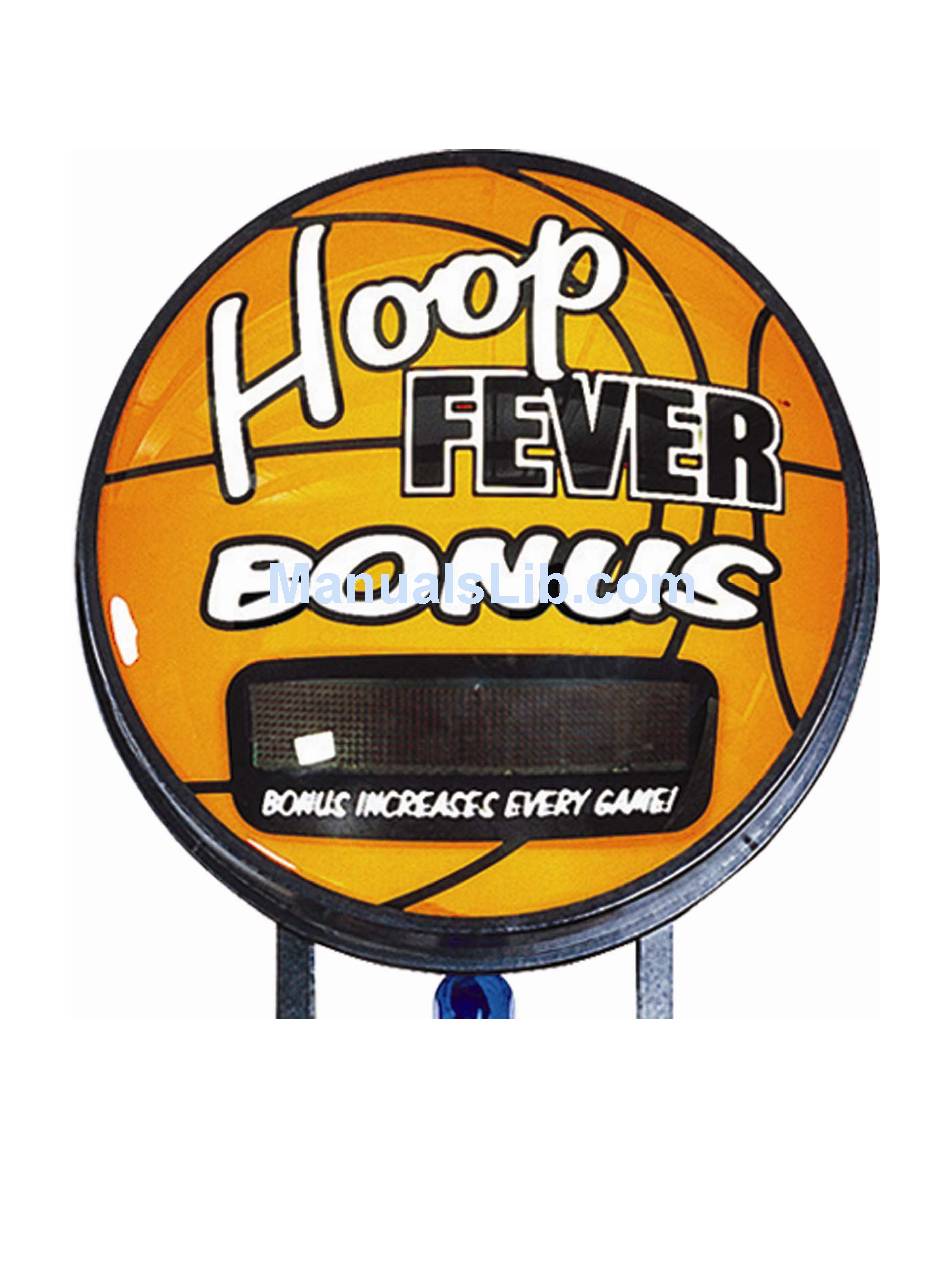

  • Page 3 FEATURES Thank you for your purchase of the HOOP FEVER™ BONUS MARQUEE. This marquee will help increase player interest as well as increase earnings from your games. The idea behind the marquee is to dispense a large amount of tickets, when a predetermined score has been matched or beaten.

  • Page 4: Set-Up

    SET - UP (Even Number Of Games) INSTALLATION • 1/4-20 X 1” Hex Head Bolts WARNING: BEFORE PROCEEDING WITH THIS • 1/4-20 X 1 1/4” Hex Head Bolts INSTALLATION, BE SURE TO FOLLOW ALL • 1/4-20 X 1 1/2” Hex Head Bolts ELECTRICAL SAFETY PRECAUTIONS, ESPE- •...

  • Page 5: Set-Up

    SET - UP The Beacon Light mounting board may now be at- tached to the brackets using 1/4-20 X 1 1/4” long hex head bolts, washers and hex nuts. Tighten all bolts securely. (See Fig. 2) Fig. 3 NOTE: THE FOLLOWING STEPS MUST BE PER- FORMED BY 2 PERSONS.

  • Page 6: Programming

    SET - UP ODD NUMBER OF GAMES INSTALLATION Attach the Marquee to the Beacon Board using 1/4- 20 X 1 1/2” long hex head bolts, washers and Nylock hex nuts. Tighten all bolts securely. (See Fig. 5) EVEN NUMBER OF GAMES INSTALLATION Fig.
  • Page 7 PROGRAMMING STATION I.D. Since the Marquee communicates with the game (s), it must have a unique “STATION IDENTIFICATION NUMBER” so it can communicate properly. If you have 1 Marquee the number for this option should be set to “14”. If you use 2 Marquees, one of them should be set to “14”...

  • Page 8: Troubleshooting

    TROUBLESHOOTING OVERVIEW OPERATIONAL BACKGRO The following section will give you information on quick The Bonus Marquee is a microprocessor controlled troubleshooting of the Marquee as well as detailed re- display unit, with built in sound. pair procedures. Since the Marquee is all electronic, and quite simple, any repair should be easy to accom- The object of the Marquee is to create greater player plish.

  • Page 9: Troubleshooting

    QUICK TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION MARQUEE NOT TURNED ON NO A.C. POWER INSPECT MAIN FUSES BAD FUSE ON MAIN BOARD REPLACE MAIN BOARD FUSES(S) PHONE LINE NOT CONNECTED THE MARQUEE WILL APPEAR TO BE TURNED OFF UNDER THESE GAMES NOT TURNED ON CONDITIONS, WHEN IN FACT IT IS POWERED UP.
  • Page 10 SERVICING BE EXTREMELY CAREFUL WHEN WORKING ON FLUORESCENT LIGHT FIXTURE THE MARQUEE, AS IT IS LOCATED HIGH ABOVE THE FLOOR. USE ONLY APPROVED LADDERS, 1. Remove A.C. power to the Marquee by unplug- ETC. ging the power cord from the rear of the Mar- quee.

  • Page 11: Parts Listings

    PARTS LISTINGS 2000X MAIN P.C. BOARD ASSEMBLY 2016 TELEPHONE CORD (25 FT.) 2258 MDQ-5 SLO-BLO FUSE 8312 PL-L FLUORESCENT BULB AR2007 SPEAKER BB2006 POWER MODULE CC2027 COMPUTER POWER CORD (20 FT.) FP2000X DISPLAY P.C. BOARD HF3101 BONUS MARQUEE HOUSING HP2002 TRANSFORMER MZ8284X BALLAST ASSEMBLY...
  • Page 12 Warranty I.C.E warrants all components in the HOOP FEVER™ BONUS MARQUEE to be free of defects in materials and workmanship for a period of ninety days from the date of purchase. This warranty does not cover items damaged due to normal wear and tear, subjected to abuse, improperly assembled by the end user, modified, repaired, or operated in a fashion other than that described in the service manual.
  • Page 13 WARRANTY ICE Inc. warrants that all of its products will be free from defects in material and workmanship. When placing a warranty request, please be prepared to provide the following information: · Serial Number of Game or Bill of Sale ·...
