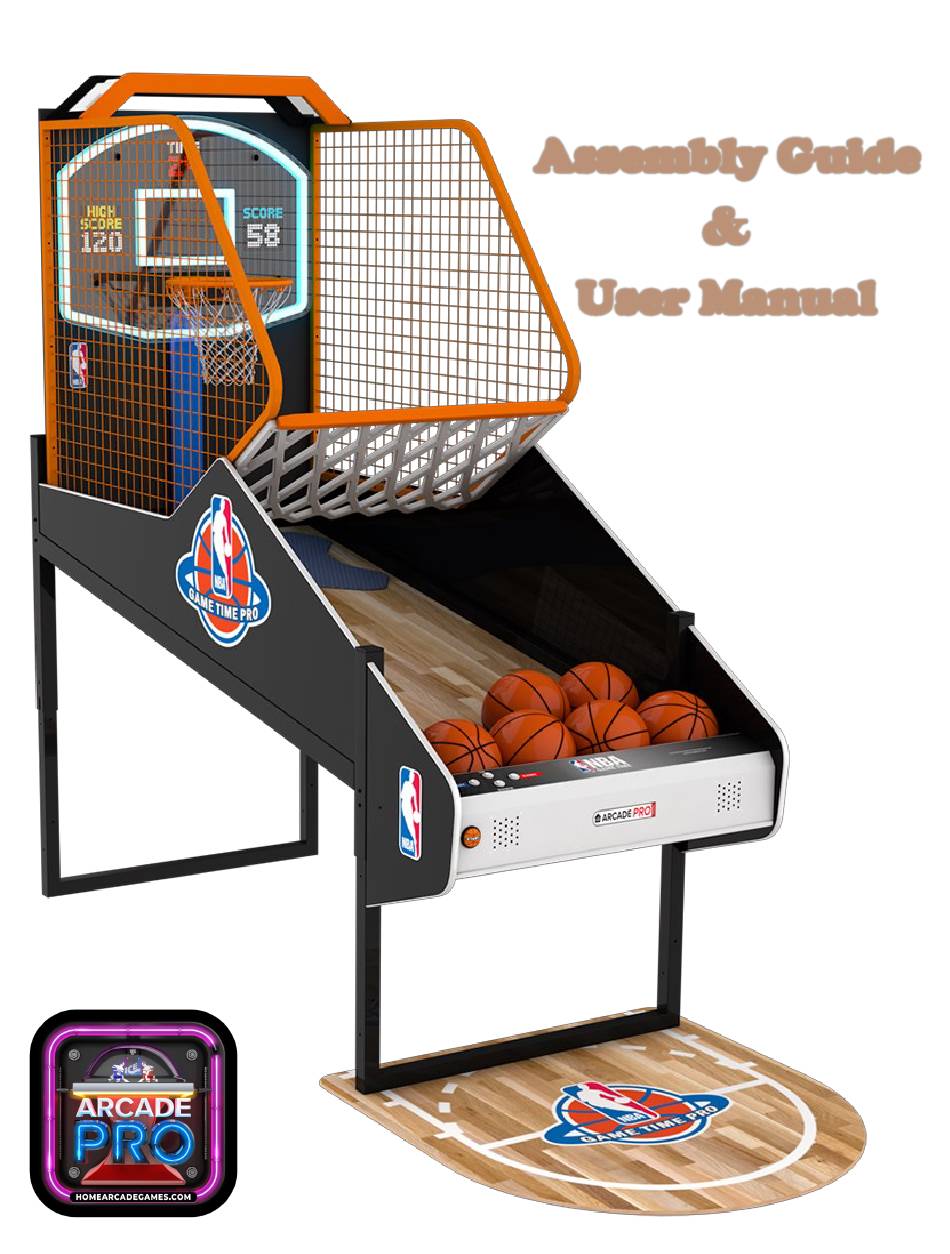

- Page 1 Assembly Guide & User Manual...
- Page 2 Table of Contents Safety….Before you begin Parts Included Before you begin assembly Cabinet Assembly Game Modes Game Options. Access to Electronics Score Sensor Main board Connections Warranty Policy Revision D 5/13/2021...
- Page 3 WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS. THIS GAME IS DESIGNED TO DISSIPATE STATIC ELECTRICITY THROUGH THE GROUNDING PLANE OF THE GAME.
- Page 4 Before you begin to assemble your game locate the parts below. If any parts are missing please contact ICE Service at (716) 759-0360 Monday through Friday 8:30 am to 6 pm Eastern Standard.
- Page 5 Before you begin, determine what 100.77” height you will assembly your game to. Both leg assemblies have seven holes. The measurements provided are for a 96.77” completely assembled game. 99.77” If the upper roof assembly is not 92.77” installed, you can subtract 4” from these 94.77”...
- Page 6 LEGS (8) AA6610 Inserts Back Leg (4) AA6107 bolts Front Leg Insert LEG hardware to secure legs. Tighten using supplied tools.
- Page 7 Lay plywood panel down with wire harness channel to the left. Insert bolts and washers at the top and nuts at the bottom. Green ground wire attaches to the back left bolt UNDERNEATH cabinet. NOT ON TOP!! Floor (10) AA6953 Bolt (10) AA6288 Washer (10) AA6004 Nut...
- Page 8 Front and back supports (8) AA6125 Bolt Attach the front and back supports.
- Page 9 Cage Sides (8) AA6281 Bolt (8) AA6212 Washer (8) AA6110 Insert AA6281 bolts and AA6212 washers to the outside. AA6110 inserts go on the inside.
- Page 10 Slide net onto backboard assembly as shown. Basket (4) PC60604 nylon nut (4) AA6070 washer Secure front using only 4 PC60604 bolts and 4 AA6070 washers...
- Page 11 Back Board (8) AA6220 bolt (8) AA6430 washer Insert back board into back slot. Secure using AA6220 bolts and AA6430 washers through the cage into the back board.
- Page 12 Secure sides using 2 AA6220 bolts at the sides and AA6430 washers. Secure front using only 2 AA6220 bolts (no washers) Rebound Guard Side (4) AA6220 bolt (4) AA6430 washer...
- Page 13 Place Cage Top at top. From the bottom, insert 2 AA6281 Bolts and 2 AA6430 Washers on each side. Standard Control Panel Install: Insert the control panel into the slot and slightly push down to lock it in place. Secure using 1 AA6718 bolt and 1 AA6212 washer on each side. Podium (2) AA6718 (2) AA6212 Washer...
- Page 14 Optional Extended Control panel Install: Insert the control panel into the slot and slightly push down to lock it in place. Secure using 1 AA6718 bolt and 1 AA6212 washer on each side. Podium (2) AA6718 (2) AA6212 Washer...
- Page 15 Plug main harness into back of game. Plug Score Sensor harness into back of game. Plug main harness into control panel. Plug AC cord at back side of game.
- Page 16 Insert the AC cord into a grounded AC outlet. The cord can be found behind the back cabinet. WARNING - ONLY PLUG INTO A GROUNDED OUTLET. DO NOT USE ADAPTORS THAT ELIMINATE THE THIRD PRONG! Flip the AC switch to the on position. It will have a “I” label. Your game is ready to be played.
- Page 17 – The classic basketball arcade game. Players race against the clock to score as many points as possible. Score 75 to get to the 2nd round. Score 100 to get to the 3rd (final) round. See who can get the all-time high score with this arcade classic. Money Ball –...
- Page 18 Pro: Settings Round 2 Bonus Default setting: 75 (Choices 30-120 increment by 5) Round 3 Bonus now shows the Target (offset+Bonus set above) Default 100 Choices 5-50+ bonus above so low of 35 and high of 170 Color 1 Default Red Off-White Color 2 Default Green...
- Page 19 Power Module Display Main Power Display Display Supply...
- Page 20 PART # E00210NSAX...
- Page 21 ID Type Pin Description Wire Color Left (+) RED/GRY J1 .100" 4-Pin Header Audio Left (-) BRN/GRY Right (+) RED/WHT Right (-) BRN/WHT J3 .100" 8-Pin Header +12VDC Buttons Start Light YEL/BLU Start GRY/BLU Player WHT/BLU Game WHT/VIO WHT/GRY Down J4 .165"...
- Page 22 (including labor) that is performed by such a distributor. Innovative Concepts in Entertainment 10123 Main St. Clarence, NY 14031 Phone #: (716) - 759 – 0360 Fax #: (716) – 759 – 0884 www.icegame.com...
