Icegame 3 Across Service Manual
  1. Manuals
  2. Brands
  3. Icegame Manuals
  4. Game
  5. 3 Across
  6. Service manual

Icegame 3 Across Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3 Across and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Icegame 3 Across

Summary of Contents for Icegame 3 Across

  • Page 2: Warranty Information

    TABLE OF CONTENTS Introduction Page 3 Installation / Setup Pages 4 – 7 · AC / DC Fuse Ratings Page 8 Programming Page 9 & 10 Detailed Assemblies Pages 11-37 Wire Harnesses Pages 38-46 Parts Listing Pages 47 & 48 Warranty Information Pages 49 &...

  • Page 3: Game Features

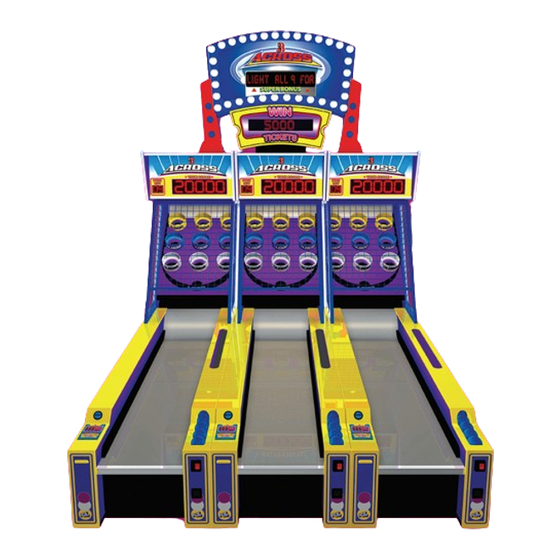

    GAME FEATURES If the player was able to achieve a perfect game the super Thank you for your purchase of the new 3 Across™ bonus is awarded. Tickets are then dispensed to the game from I.C.E. The game starts off with unparalleled player and the game is over.

  • Page 4: Before You Begin

    INSTALLATION BEFORE YOU BEGIN SINGLE INSTALL INSTRUCTIONS WARNING: WHEN INSTALLING THIS GAME, 1. Remove the banding from the pallet. A 3 PRONG GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD NOTE: BE SURE TO STAND TO THE SIDE RESULT IN SERIOUS INJURY TO YOURSELF OR WHEN CUTTING THE BANDS, AS THEY ARE OTHERS.
  • Page 5 INSTALLATION 6. Slide the two halves together and using the included latching tool, latch both sides, top and bottom together. Insert the four latch plugs where you inserted the latch tool. Slide both the cash box and ball release cover out and out of the way.
  • Page 6 MARQUEE INSTALL INSTRUCTIONS There are three different bonus marquees available for 3 Across. NA7010X is used mostly for a single lane or when there is not enough height for the full size marquees NA7000X and NA7001X. The NA7010X programming information is stored on the games’ main board while both the NA7000X and NA7001X overrides any mini marquee programming informa- tion and stores it’s information directly on the marquee.
  • Page 7 NA7010X Single Marquee NA7000X series Wiring harness plugs in here 3 & 4 Install Spacers here...
  • Page 8 AC & DC POWER FUSE RATINGS To access the fuses for both the AC and DC supplies, open the front access panel and located inside is a power module and board panel assembly. The power module has a 5 amp slow blow if your game is 110V option or 2.5 amp slow blow if your game is 220V option.

  • Page 9: Error Description

    PROGRAMMING Game Programming Version 1.10 3/6/08 (Previous version was not linkable) To enter programming, press “program” in attract mode. Pressing “program” during game play will be ignored. Cycle through the options with select and change the values with advance. Exit by pressing “program” which will save your changes. Value Description Default Comment...
  • Page 10 PROGRAMMING NA7000X - Super Bonus Programming Version 1.0 3/6/08 NA7000X software, requires game software version 1.10 or higher. To enter remote programming, press sw5. This will display PRG on the game you are pro- gramming with. The marquee will then show volume. Pressing SW2 will advance to the next option while SW3 will advance the value of that option.
  • Page 34 34 34...
  • Page 43 To:NA2066X Playfield Extension...
  • Page 44 To NA2065X Playfield...
  • Page 47 ELECTRONICS: 2111 RELAY SOLID STATE DA2001X PCBA (POWER SUPPLY) DA2002X ASY (TRANSFORMER) E02295 FUSE 6 AMP 250V SLO BLO E02315 FUSE 3 AMP 250V SLO BLO E02314 FUSE 1 AMP 250V SLO BLO E2034X PCBA (ARM 7 BRAIN BOARD) NA2034X PCBA (MAIN I/O) NA2056X HARNESS (BALL GATE RELAY)
  • Page 48 MECHANICAL: AR1033-P500 CAGE (LEFT) AR1034-P500 CAGE (RIGHT) AR1035-P500 CAGE (FRONT) AR3100 RUNWAY MATERIAL (GREY) NA1006X COIN DOOR ASSEMBLY 5101PX MECH HOLDER ASY NA1008X TICKET DRAWER ASSEMBLY HH5005X TICKET DISPENSER AND BIN ASSEMBLY NA3025X PLAYFIELD ASSEMBLY 4002 BUMPER NA3010WX CUP MATERIAL (WHITE) NA3010AX CUP MATERIAL (BLACK) NA3010BX...

  • Page 49: Warranty

    Warranty I.C.E warrants all components in the 3 Across™ game to be free of defects in ma- terials and workmanship for a period of ninety days from the date of purchase. This warranty does not cover items damaged due to normal wear and tear, sub- jected to abuse, improperly assembled by the end user, modified, repaired, or oper- ated in a fashion other than that described in the service manual.
  • Page 50 WARRANTY ICE Inc warrants that all of its products will be free from defects in material and workmanship. When placing a warranty request, please be prepared to provide the following information: · Serial Number of Game or Bill of Sale ·...
