- Page 1 User Maintenance Manual ADDENDUM PEGASUS 4853 ADVANCED ADDITIONAL FEATURE FOR THE PEGASUS ADVANCED Pegasus 4000 Series 01-10/15...
- Page 2 AUTOTUNE LOOP 1: This is best used when neither SETPOINT TRIM nor REFERENCE CONTROL are enabled. When enabled a small AT can be seen flashing in the bottom right hand corner of the ISOTECH home screen. During the tune the temperature can be seen to scroll either side of the setpoint whilst the controller calculates the best values.

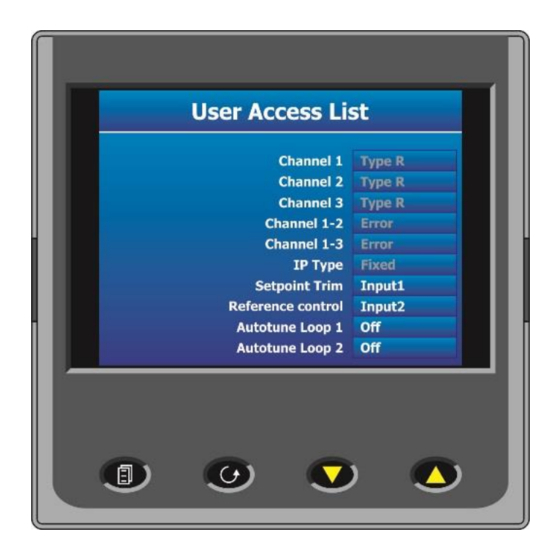

- Page 3 only AUTOTUNE LOOP 2: Use this tune feature when REFERENCE CONTROL is enabled. This will function in the same way as above but will only apply to LOOP 2 control. Therefore, the feature can only be used when the temperature of the equipment is with 100°C of the setpoint and REFERENCE CONTROL is enabled. To disable the REFERENCE control feature, scroll to the USER ACCESS page and set REFERENCE control to INPUT 1.
