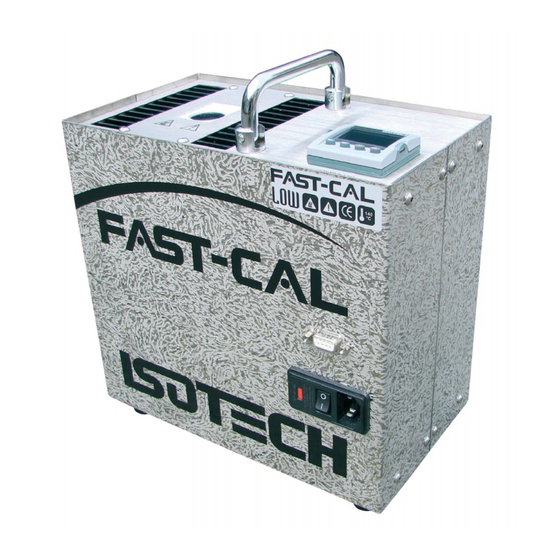

FAST-CAL SERIES
TEMPERATURE CALIBRATOR
User Maintenance Manual/Handbook
Isothermal Technology Limited, Pine Grove, Southport, PR9 9AG, England
Tel: +44 (0)1704 543830 Fax: +44 (0)1704 544799 Internet: www.isotech.co.uk E-mail: info@isotech.co.uk
The company is always willing to give technical advice and assistance where appropriate. Equally, because of the programme of continual
development and improvement we reserve the right to amend or alter characteristics and design without prior notice. This publication is for
information only.
Page 1 of 29
Fast Cal Series Iss.07 – 08/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fast-Cal Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Isotech Fast-Cal Series

  • Page 1 Isothermal Technology Limited, Pine Grove, Southport, PR9 9AG, England Tel: +44 (0)1704 543830 Fax: +44 (0)1704 544799 Internet: www.isotech.co.uk E-mail: info@isotech.co.uk The company is always willing to give technical advice and assistance where appropriate. Equally, because of the programme of continual development and improvement we reserve the right to amend or alter characteristics and design without prior notice.
  • Page 2: Table Of Contents

    CONTENTS EMC INFORMATION ......................... 4 ELECTRICAL SAFETY ........................4 Environmental Ratings ..................................4 HEALTH AND SAFETY INSTRUCTIONS ................... 5 ‘DO’S AND DON’TS’ ........................6 GUARANTEE ............................ 7 CAUTIONARY NOTE ........................8 UNPACKING AND INITIAL INSPECTION ..................9 ELECTRICITY SUPPLY........................9 INTRODUCTION ...........................
  • Page 3 Setting the Input Type .................................. 16 ENABLING/DISABLING CUSTOM CALIBRATION ........................17 INSTRUMENT ADDRESS ................................17 MONITORING THE INDICATOR STATUS ..........................18 Units ......................................18 ADVANCED INDICATOR OPERATION ............................18 CALIBRATION DATA EXAMPLE ..................... 19 CONNECTING A CURRENT TRANSMITTER (UP TO 20MA) ....................19 TESTING THERMAL SWITCHES WITH FAST-CAL........................
  • Page 4: Emc Information

    The blue conductor should be connected to Neutral and the Brown conductor to Live (Line). Warning: Internal mains voltage hazard. Do not remove the panels. There are no user serviceable parts inside. Contact your nearest Isotech agent for repair. Voltage transients on the supply must not exceed 2.5kV.
  • Page 5: Health And Safety Instructions

    If cased, do not return the apparatus to its carrying case until the unit has cooled. There are no user serviceable parts inside. Contact your nearest Isotech agent for repair. Ensure materials, especially flammable materials are kept away from hot parts of the apparatus, to prevent fire risk.
  • Page 6: Do's And Don'ts

    ‘DO’S AND DON’TS’ DO ensure that after use the equipment is returned to ambient temperature and allowed to reach with 10°C of this temperature before transporting the equipment or returning to its carrying case. DO NOT handle the accessories when they are very hot or very cold. DO NOT place hot or cold accessories back in the carrying case.
  • Page 7: Guarantee

    INTERFERENCE WITH OR FAILURE TO PROPERLY MAINTAIN THIS INSTRUMENT MAY INVALIDATE THIS GUARANTEE RECOMMENDATION The life of your ISOTECH Instrument will be prolonged if regular maintenance and cleaning to remove general dust and debris is carried out. ISOTHERMAL TECHNOLOGY LTD.
  • Page 8: Cautionary Note

    CAUTIONARY NOTE ISOTECH PRODUCTS ARE INTENDED FOR USE BY TECHNICALLY TRAINED AND COMPETENT PERSONNEL FAMILIAR WITH GOOD MEASUREMENT PRACTICES. IT IS EXPECTED THAT PERSONNEL USING THIS EQUIPMENT WILL BE COMPETENT WITH THE MANAGEMENT OF APPARATUS WHICH MAY BE POWERED OR UNDER EXTREMES OF TEMPERATURE, AND ARE ABLE TO APPRECIATE THE HAZARDS WHICH MAY BE ASSOCIATED WITH, AND THE PRECAUTIONS TO BE TAKEN WITH, SUCH EQUIPMENT.
  • Page 9: Unpacking And Initial Inspection

    UNPACKING AND INITIAL INSPECTION Our Packing Department uses custom designed packaging to send out your unit, but as accidents can still happen in transit, you are advised, after unpacking the unit, to inspect it for any sign of shipping damage, and confirm that your delivery is in accordance with the packing note.
  • Page 10: Introduction

    INTRODUCTION The Fast-Cal units allow flexibility for the calibration of temperature sensors. COMPARISON CALIBRATION By definition, one compares industrial thermometers to a calibrated standard. There are 3 methods commonly used. Basic Using the controller as the “calibrated standard” this method means that the complete bath is calibrated by comparing the controller reading to a calibrated standard placed in the bath.
  • Page 11: Mode Of Operation

    MODE OF OPERATION FAST-CAL HTM 2010 The metal block function of the Fast-Cal HTM 2010 is well suited for fast, convenient, mess free calibration of temperature sensors. The thermometers under test are placed into suitable holes in the block. For the S models a calibrated reference probe should be placed into the block and the actual temperature can be read from the temperature indicator.
  • Page 12: The Reference Thermometer

    The Industrial Thermometer is placed in the calibration volume and is compared to the True Temperature as indicated by the Reference Thermometer. An insert will typically have a 1% immersion error. For more details see - Depths of Immersion. Tavener J. P. Volume 9.2. Isotech Journal of Thermometry pages 79-87. Page 12 of 29...
  • Page 13: Specifications (Htm 2010 & Low Models)

    SPECIFICATIONS (HTM 2010 & LOW MODELS) HTM 2010 Voltage 230VAC or 115VAC 230VAC or 115VAC see ratings plate see ratings plate Power 150W 150W Supply Frequency 50/60Hz 50/60Hz Maximum Operating Temperature 140°C 140°C Minimum Operating Temperature -55°C below ambient -55°C below ambient Stability (Absolute over 30 minutes) Basic / Site 0.02°C 0.02°C...
  • Page 14: Specifications (Medium & High Models)

    SPECIFICATIONS (MEDIUM & HIGH MODELS) MEDIUM HIGH Voltage 230VAC or 115VAC 230VAC or 115VAC see ratings plate see ratings plate Power 750W 750W Supply Frequency 50/60Hz 50/60Hz Maximum Operating Temperature 350°C 650°C Minimum Operating Temperature 30°C 35°C Stability (Absolute over 30 minutes) Basic / Site 0.03°C 0.03 to 0.5°C Accuracy...
  • Page 15: Operating The Fast-Cal

    OPERATING THE FAST-CAL FRONT PANEL LAYOUT The Temperature Controller The controller has a dual display, the upper display indicates the nominal block temperature, and the lower display indicates the desired temperature or setpoint. Altering the Setpoint To change the setpoint of the controller simply use the UP and DOWN keys to raise and lower the setpoint to the required value.
  • Page 16: Instrument Address

    Instrument Address The controller has a configurable "address" which is used for PC communications. Each instrument has an address; this allows several instruments to be connected in parallel on the same communications bus. The default value is 1. This address would only need to be changed if more than one Dry Block is connected to the same PC port.
  • Page 17: Enabling/Disabling Custom Calibration

    REM beacon provides a clear and continuous indication of the calibration status. Isotech will configure and set user calibration when the Dry Block is ordered with a temperature sensor.
  • Page 18: Monitoring The Indicator Status

    The indicator can be configured with up to five custom calibration points; the points contain "data pairs". First the temperature (point) and secondly the Error (offset) at this temperature point. Isotech Dry Block calibration certificates will show the values to suit a particular sensor.
  • Page 19: Calibration Data Example

    CALIBRATION DATA EXAMPLE A maximum of five points may be entered, shown as Pnt 1 to Pnt 5 for the temperature point and Ofs 1 to Ofs 5 for the offset values. The Pnt values must be entered in ascending order. Set a Pnt to a value lower than the previous point to disable it.
  • Page 20: Testing Thermal Switches With Fast-Cal

    TESTING THERMAL SWITCHES WITH FAST-CAL The site Model Fast-Cal’s include a switch test facility which is used in conjunction with the supplied Cal Notepad Software. See Cal Note Pad manual or instructions on how to use this. Page 20 of 29 Fast Cal Series Iss.07 –...
  • Page 21: Using The Pc Interface

    The Isotech conversion leads are suitable for maximum combined lead lengths of 10M that is adequate for most applications. CONNECTIONS For RS232 use simply connect the Isotech cable, a 9 to 25 pin converter is included to suit PCs with a 25 pin serial converter. RS422 Connections...
  • Page 22: Cal Notepad

    CAL NOTEPAD Cal Notepad can be used can be used to log and display values from the Dry Blocks and an optional temperature indicator such as the milliK or TTI-10. The software requires Windows 9X, XP, a minimum of 5Mb of free hard drive space and free serial ports for the instruments to be connected.
  • Page 23: How To Install Cal Notepad

    HOW TO INSTALL CAL NOTEPAD Download the ZIP from http://www.isotech.co.uk/downloads (7.6Mb) Extract the files to a temporary folder Run setup.exe Follow the prompts which will install the application, a user manual with setup information and the necessary LabVIEW run time support files.
  • Page 24: Diagnostic Alarms

    Do not turn the power off to the controller ConF while is flashing E.CaL Calibration error Re-instate Factory calibration, refer to Isotech E2.Er EEPROM error Return to Isotech for repair EE.Er Non-vol memory error Note the error and contact Isotech.
  • Page 25: Initial Testing

    INITIAL TESTING This unit was fully tested before despatch to you but please check its operation as outlined below. After connecting the Fast-Cal to the electricity supply, the temperature controller display will show the temperature of the block and the last set-point value. The S controller and indicator both go through a self-test sequence first. The fan on the front panel should be heard running.
  • Page 26: Maintenance

    MAINTENANCE Maintenance is limit to keeping the apparatus and the calibration volume clean and free from debris. There are no internal user serviceable parts. Repair and maintenance must be carried out by Isothermal Technology Limited or an approved agent. Page 26 of 29 Fast Cal Series Iss.07 –...
  • Page 27: Appendix 1: Trouble Shooting

    APPENDIX 1: TROUBLE SHOOTING Unit fails to operate Check fuse, if fuse blows repeatedly consult Isotech or local agent. Unit unstable Control parameters have been interfered with - consult your local agent. Cannot establish PC Communications For RS232 you must use the Isotech adaptor cable.
  • Page 28: Appendix 2: Indicator Configuration (Reference Only)

    APPENDIX 2: INDICATOR CONFIGURATION (Reference Only) Input Name Description Value Type Input Type Units Display Units °C (0) DecimalPoints Decimal Point Position NN.NN RangeHigh Range High Limit 850.00 RangeLow Range Low Limit -200.00 CJCType CJC Type Calibration Name Description Value CalPhase Calibration Phase NONE (0)
  • Page 29: Appendix 3: Accessories Parts List

    APPENDIX 3: ACCESSORIES PARTS LIST Semi-Standard PRT (HTM 2010 and Low) 935-14-82/DB Semi-Standard PRT (Medium) 935-14-98/DB Semi-Standard PRT (High) 935-14-72/DB Semi-Standard T/C (High) 935-14-63/DB Standard Insert (Low and Medium) 907-02-03 Blank Insert (Low and Medium) 907-02-03b Special Insert (Low and Medium) 907-02-03c Standard Insert (High only) 907-02-03d...
