Service Manual
ES 150P/230V
Powered subwoofer
Released EU2008
Harman/kardon, Inc.
Rev 0, 1/2008
250 Crossways Park Dr.
Woodbury, New York, 11797
Page 1 of 30

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES 150P and is the answer not in the manual?

Questions and answers

Related Manuals for JBL ES 150P

Summary of Contents for JBL ES 150P

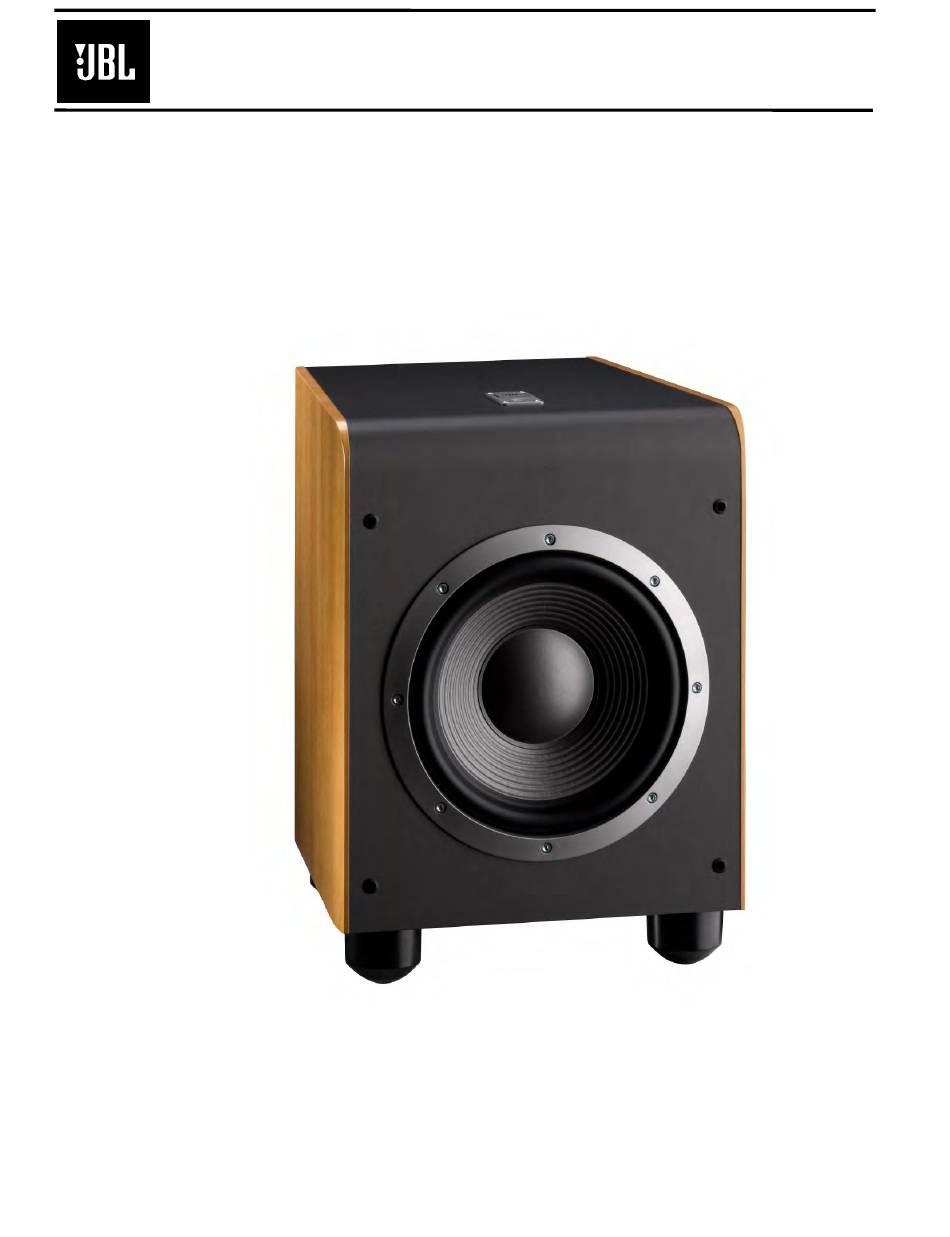

  • Page 1 Service Manual ES 150P/230V Powered subwoofer Released EU2008 Harman/kardon, Inc. Rev 0, 1/2008 250 Crossways Park Dr. Woodbury, New York, 11797 Page 1 of 30...
  • Page 2 Weight: 39 lb/17.7kg JBL continually strives to update and improve existing products, as well as create new ones. The specifications and details in this and related JBL publications are therefore subject to change without notice. The Peak Dynamic Power is measured by recording the highest center-to-peak voltage measured across the output of a resistive load equal to minimum impedance of the transducer, using a 50Hz sine wave burst, 3 cycles on, 17 cycles off.

  • Page 3: Line Voltage

    Service Manual ES150P JBL ES150P 225W Powered Sub Amp LINE VOLTAGE Yes/No Hi/Lo Line Nom. Unit Notes US 120vac/60Hz 108-132 Vrms Normal Operation EU 230vac/50-60Hz 207-253 Vrms Normal operation, MOMS required QA Test Parameter Specification Unit Limits Conditions Notes Amp Section Type (Class AB, D, other) Min.
  • Page 4 Service Manual ES150P QA Test Parameter Specification Unit Limits Conditions Notes Transients/Pops Amplifier activated by signal presence at the 0.5V @ Speaker Output Line input ATO Transient V-peak Turn-on Transient V-peak 0.8V @ Speaker Output AC Line cycled from OFF to ON Turn-off Transient V-peak 0.8V...

  • Page 5: Black Button

    JBL ES 150P/230V Service Manual MODEL NAME: ES150P/230 Part Number Description 241-100-05361-0RAE Cabinet, cherry 241-100-05361-0BAE Cabinet, black 241-100-05361-0YAE Cabinet, beech 327-010-00622-E BLACK Button 249-HPS-05178-0BAE HIPS port tube 328-000-05496-0WAE White damping material 244-100-05276-0BAE Plastic grille with logo 403-000-05489-E Paper board 25PR12FZL-DW04-E...
  • Page 6 Service Manual ES150P ES150P Test Set Up and Procedure Equipment needed: • Function/signal generator/sweep generator • Integrated Amplifier • Multimeter • Speaker cables General Unit Function (UUT = Unit Under Test) 1) From the signal generator, connect line level (RCA) cables to the Subwoofer Line Level Input jacks L/R on the UUT.
  • Page 7 JBL ES 150P/230V Service Manual ES150P Page 7 of 30...
  • Page 8 JBL ES 150P/230V Service Manual Page 8 of 30...
  • Page 9 Service Manual JBL ES 150P/230V Page 9 of 30...
  • Page 10 CAM350 V 8.0.6 : Thu Aug 30 09:40:24 2007 - (Untitled) JBL ES 150P/230V Service Manual Page 10 of 30...
  • Page 11 JBL ES 150P/230V Service Manual Page 11 of 30...
  • Page 12 JBL ES 150P/230V Service Manual Page 12 of 30...
  • Page 13 JBL ES 150P/230V Service Manual Page 13 of 30...
  • Page 14 JBL ES 150P/230V Service Manual Page 14 of 30...
  • Page 15 JBL ES 150P/230V Service Manual Page 15 of 30...
  • Page 16 JBL ES 150P/230V Service Manual Page 16 of 30...
  • Page 17 JBL ES 150P/230V Service Manual Page 17 of 30...
  • Page 18 JBL ES 150P/230V Service Manual Page 18 of 30...
  • Page 19 JBL ES 150P/230V Service Manual Page 19 of 30...
  • Page 20 JBL ES 150P/230V Service Manual Page 20 of 30...
  • Page 21 JBL ES 150P/230V Service Manual Page 21 of 30...
  • Page 22 JBL ES 150P/230V Service Manual Page 22 of 30...
  • Page 23 JBL ES 150P/230V Service Manual Page 23 of 30...
  • Page 24 JBL ES 150P/230V Service Manual Page 24 of 30...
  • Page 25 JBL ES 150P/230V Service Manual Page 25 of 30...
  • Page 26 JBL ES 150P/230V Service Manual Page 26 of 30...
  • Page 27 Service Manual JBL ES 150P/230V Page 27 of 30...
  • Page 28 JBL ES 150P/230V Service Manual Page 28 of 30...
  • Page 29 JBL ES 150P/230V Service Manual Page 29 of 30...
  • Page 30 JBL ES 150P/230V Service Manual Page 30 of 30...
