Twister Display Easy Dunker Assembly Instructions

Easy Dunker

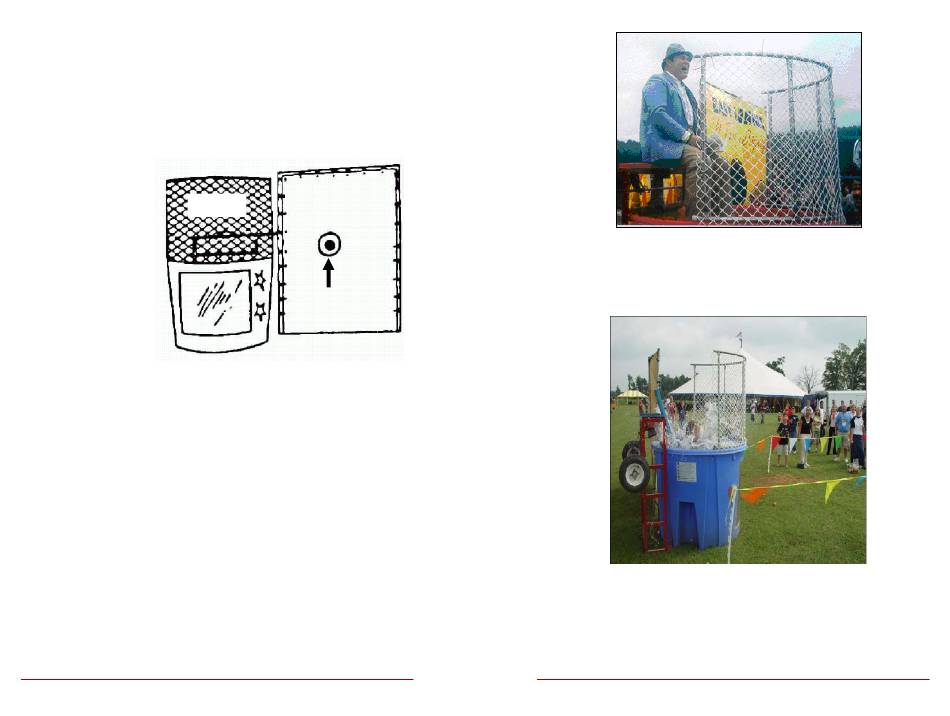

Initial Assembly Instructions

1. Remove all packing, and remove unit from pallet. NOTE: Trailer
and tank are one unit, do not try to separate!
2. Remove cage from front of tank. Turn cage over and line the holes in
the cage with the holes
along the top of the
tank. Drop a
Wing
1/4"carriage bolt
Cage
through each hole.
Then put on a flat
washer, lock washer,
Wear shoes, keep hands on knees,
and nut and tighten
down. NOTE: Start at
and sit forward.
one end of the cage
Target
and work your way
around to the other
end.
3. Place the unit on a
level surface. Put the wing perpendicular to the dunk tank (extending
from the side of the frame.) There are two brackets on the side of the
wing. Loosen the bottom one only so that it can be moved up and down
the pipe.
4. Protruding from the side of the frame are two posts (one pointing up
and one pointing down). Insert the top one into the top wing bracket.
(You will need to lift the tank slightly.) Drop the bottom bracket onto the
bottom post. Make sure that the wing is in line with the frame, then
tighten the bottom bracket.
5. Use the ball bungees to secure canvas to the wing.
6. Place the arm into the trigger mechanism. Make sure the
pivot point in the arm drops into the hole on the side of the frame. Insert
Move towards the front of the tank when
the end of the arm through the hole in the canvas. Insert the target into
coming up out of the water to avoid hitting
the end of the arm and rotate it clockwise until the target is tightened into
the arm. NOTE: Do not over tighten the target. Just tighten until
head on the seat.
snug.
