INSTALLATION INSTRUCTIONS
_____________________________________________________________________
Thank you for choosing STAINLESS STEEL BRAKES CORPORATION for your braking
needs. Please take the time to read and carefully follow these instructions to insure the ease of your
installation as well as the proper performance of the complete system.
Before beginning your installation, please verify you have received all the parts indicated on
the packing slip. If you believe anything to be missing or incorrect, please call our Customer Service
Department at 716-759-8666.
To assure your installation will go safely and smoothly, have the following items on hand to
assist you:
JACK & JACK STANDS
LUG WRENCH
TORQUE WRENCH
SOCKET SET
BRAKE CLEANER
Revised to level 3 4/17/12
Stainless Steel Brakes Corporation • 11470 Main Road • Clarence, NY 14031
PEROFRMANCE AT THE WHEELS KITS

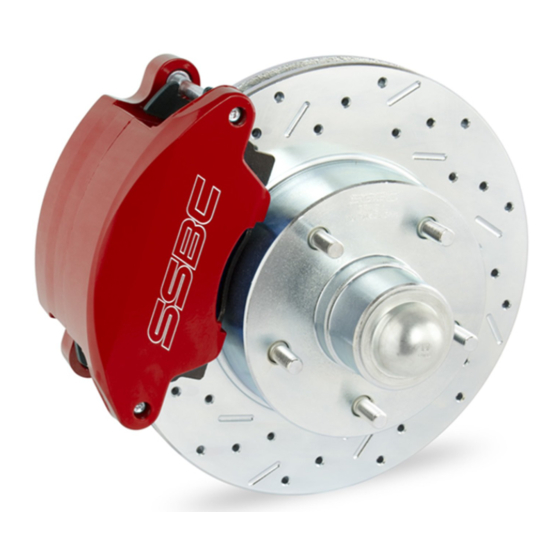

W123-ADS, W123-3ADS
1964 - 72 A-BODY
1967 - 69 F-BODY
1968 - 74 X-BODY
Phone: (800) 448-7722 • (716) 759-8666 • Fax: (716) 759-8688
www.ssbrakes.com • info@ssbrakes.com
WRENCH SET
TUBE WRENCHES
MALLET
WHEEL BEARING GREASE
BRAKE FLUID
These kits use the following pads:
SSBC#:
1015
FMSI#:
D-52
Advertisement
Related Manuals for SSBC W123-ADS
Summary of Contents for SSBC W123-ADS
- Page 1 INSTALLATION INSTRUCTIONS PEROFRMANCE AT THE WHEELS KITS W123-ADS, W123-3ADS 1964 - 72 A-BODY 1967 - 69 F-BODY 1968 - 74 X-BODY _____________________________________________________________________ Thank you for choosing STAINLESS STEEL BRAKES CORPORATION for your braking needs. Please take the time to read and carefully follow these instructions to insure the ease of your installation as well as the proper performance of the complete system.
- Page 2 AND THOROUGHLY READ THROUGH THIS INSTRUCTION MANUAL TO ENSURE THAT YOU HAVE ALL OF THE PARTS NEEDED TO COMPLETE THE INSTALL! IF YOU FIND YOU ARE MISSING ITEMS, PLEASE CONTACT SSBC IMMEDIATELY, REGARDLESS OF WHAT DEALER YOU PURCHASED THIS KIT FROM.
- Page 3 1/2”, the arms can be reused as is. If the holes are 7/16”, they will need to be drilled to 1/2” before they can be reused on the new spindles. SSBC strongly recommends the use of a drill press for this operation.
- Page 4 (This will minimize brake squeak). IF THE PAD DRAGS ON THE HUB OF THE ROTOR, YOU MAY NEED TO CLOSE THE TABS ON THE PADS THAT GO OVER THE OUTBOARD SIDE OF THE CALIPER W123-ADS, -3ADS Revision 3...
- Page 5 IS RELEASED. MAKE SURE ROTOR SPINS FREELY AND THERE ARE NO INTERFERENCES. To insure the proper function of your SSBC brake system several other parts will be required to complete the installation. If you did not purchase these parts at the same time as your brake kit they can be ordered from SSBC or your distributor.
- Page 6 INITIAL BRAKING TESTS SHOULD BE DONE IN A SAFE OPEN AREA! LOOK FOR LEAKS AND INTERFERENCES! If brake pedal "end-play" is excessive, adjust push-rod between the brake pedal and booster (to lengthen) in 1/4 turn increments until 1" of "end-play" is achieved. Final inspection W123-ADS, -3ADS Revision 3...
- Page 7 BRAKING TESTS SHOULD ALWAYS BE DONE IN A SAFE OPEN AREA! NOTE: For frequently asked questions and technical reference information please visit the tech section of our website at www.ssbrakes.com. TECH LINE -- If technical help is required, please call 716-759-8666. NOW ENJOY TRUE PERFORMANCE BRAKING!! W123-ADS, -3ADS Revision 3...
- Page 8 INSTALLATION PHOTOS SSBC 2” drop spindles supplied with kit Install the caliper mounting bracket and secure with supplied 5/8” x 1” and 1/2” x 2” bolts Install the greased inner bearing into the back of the rotor Install the grease seal into the back of the rotor...
- Page 9 (not the rim). Measure from the hub face of the wheel to the straight edge. This dimension must not exceed 4 ”. If this dimension is larger, possible solutions include: • Wheel Spacers • Narrower Tires • Different Wheel Backspace Photo #2 W123-ADS, -3ADS Revision 3...
- Page 10 5.33 1.05 DIMENSIONS ARE IN INCHES TEMPLATE NO. DO NOT SCALE T-032 DRAWING SSBC STAINLESS STEEL BRAKE CORP. CLARENCE, NEW YORK 14031-1720 Ph: 716-759-8666 / 800-448-7722 ~ Fx: 716-759-8688 WWW.SSBRAKES.COM...
