INSTALLATION INSTRUCTIONS
______________________________________________________________________
Thank you for choosing STAINLESS STEEL BRAKES CORPORATION for your braking
needs. Pleases take the time to read and carefully follow these instructions to insure the ease of
your installation as well as the proper performance of the complete system.
Before beginning your installation, please verify you have received all the parts indicated on
the packing slip. If you believe anything to be missing or incorrect, please call our Customer Service
Department at 716-759-8666.
To assure your installation will go safely and smoothly, have the following items on hand to
assist you:
Revision 3 3/28/12

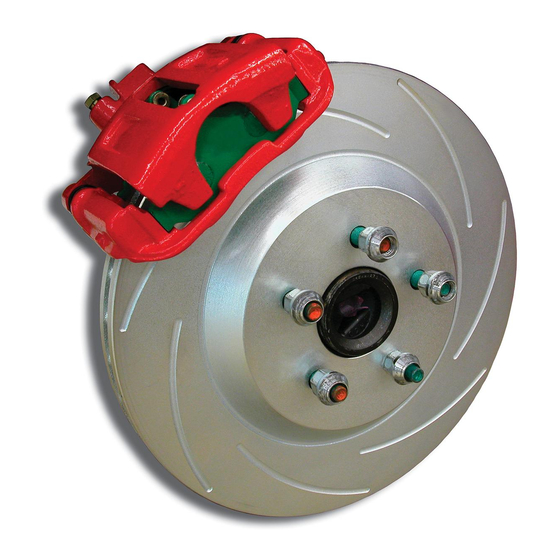

REAR DISC BRAKE CONVERSION KIT A163-1
Chevrolet Cavalier & Pontiac Sunfire
JACK & JACK STANDS
LUG WRENCH
TORQUE WRENCH
SOCKET SET
BRAKE CLEANER
Stainless Steel Brakes Corporation • 11470 Main Road • Clarence, NY 14031
Phone: (800) 448-7722 • (716) 759-8666 • Fax: (716) 759-8688
www.ssbrakes.com • info@ssbrakes.com
WRENCH SET
MALLET
TUBE WRENCHES
BRAKE FLUID
These kits use the following pads:
SSBC#:
FMSI#:
1047
D-347
Advertisement
Table of Contents
Related Manuals for SSBC A163-1
Summary of Contents for SSBC A163-1
- Page 1 INSTALLATION INSTRUCTIONS REAR DISC BRAKE CONVERSION KIT A163-1 Chevrolet Cavalier & Pontiac Sunfire ______________________________________________________________________ Thank you for choosing STAINLESS STEEL BRAKES CORPORATION for your braking needs. Pleases take the time to read and carefully follow these instructions to insure the ease of your installation as well as the proper performance of the complete system.
- Page 2 AND THOROUGHLY READ THROUGH THIS INSTRUCTION MANUAL TO ENSURE THAT YOU HAVE ALL OF THE PARTS NEEDED TO COMPLETE THE INSTALL! IF YOU FIND YOU ARE MISSING ITEMS, PLEASE CONTACT SSBC IMMEDIATELY, REGARDLESS OF WHAT DEALER YOU PURCHASED THIS KIT FROM.
- Page 3 Rotate the flex line behind the shock and connect it to the new steel line. Tighten using a tube wrench. Parking Brake Cables. a) Remove the original brake cables by loosening the cables at the adjuster located in the center of the axle. A163-1 Revision 3...
- Page 4 When you are sure there are no interferences and the pedal is firm, torque the lug nuts and lower the car back onto the ground. Test drive the car and apply the brakes frequently to seat the pads. A163-1 Revision 3...
- Page 5 BRAKING TESTS SHOULD ALWAYS BE DONE IN A SAFE OPEN AREA! NOTE: For frequently asked questions and technical reference information please visit the tech section of our website at www.ssbrakes.com. TECH LINE -- If technical help is required, please call 716-759-8666. NOW ENJOY TRUE PERFORMANCE BRAKING!! A163-1 Revision 3...
- Page 6 4.84 WHEEL MOUNTING SURFACE DIMENSIONS ARE IN INCHES TEMPLATE NO. DO NOT SCALE T-040 DRAWING SSBC STAINLESS STEEL BRAKE CORP. CLARENCE, NEW YORK 14031-1720 Ph: 716-759-8666 / 800-448-7722 ~ Fx: 716-759-8688 WWW.SSBRAKES.COM...
