INSTALLATION INSTRUCTIONS
_____________________________________________________________________
Thank you for choosing STAINLESS STEEL BRAKES CORPORATION for your braking
needs. Pleases take the time to read and carefully follow these instructions to insure the ease of
your installation as well as the proper performance of the complete system.
Before beginning your installation, please verify you have received all the parts indicated on
the packing slip. If you believe anything to be missing or incorrect, please call our Customer Service
Department at 716-759-8666.
To assure your installation will go safely and smoothly, have the following items on hand to
assist you:
Revision 3 4/3/12
Stainless Steel Brakes Corporation • 11470 Main Road • Clarence, NY 14031

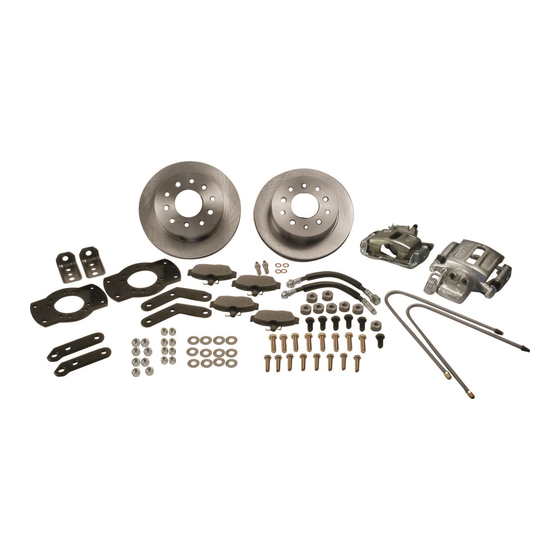

REAR DISC BRAKE CONVERSION KIT A117
GM S-SERIES TRUCKS & SUVS
JACK & JACK STANDS
LUG WRENCH
TORQUE WRENCH
SOCKET SET
BRAKE CLEANER
Phone: (800) 448-7722 • (716) 759-8666 • Fax: (716) 759-8688
www.ssbrakes.com • info@ssbrakes.com
WRENCH SET
TUBE WRENCH
MALLET
BRAKE FLUID
These kits use the following pads:
SSBC#:
1047
FMSI#:
D-347
Advertisement
Table of Contents
Related Manuals for SSBC A117
Summary of Contents for SSBC A117
- Page 1 INSTALLATION INSTRUCTIONS REAR DISC BRAKE CONVERSION KIT A117 GM S-SERIES TRUCKS & SUVS _____________________________________________________________________ Thank you for choosing STAINLESS STEEL BRAKES CORPORATION for your braking needs. Pleases take the time to read and carefully follow these instructions to insure the ease of your installation as well as the proper performance of the complete system.
- Page 2 AND THOROUGHLY READ THROUGH THIS INSTRUCTION MANUAL TO ENSURE THAT YOU HAVE ALL OF THE PARTS NEEDED TO COMPLETE THE INSTALL! IF YOU FIND YOU ARE MISSING ITEMS, PLEASE CONTACT SSBC IMMEDIATELY, REGARDLESS OF WHAT DEALER YOU PURCHASED THIS KIT FROM.
- Page 3 Nonetheless, in the event that splash shields are desired, they may be ordered from SSBC at an extra cost and secured with two 1/4-20x1/2" screws and lock washers per side. Torque to 5 ft/lbs.
- Page 4 If a valve is used, install it in the brake line from the master cylinder serving the rear brakes. The Out port goes to the rear brake side. When bleeding the system, adjust the valve by turning the knob clockwise until it stops. DO NOT OVERTIGHTEN, THIS COULD DAMAGE THE VALVE. A117 Revision 3...
- Page 5 Pedal end play can be adjusted by lengthening or shortening the pushrod between the pedal rod (or power brake output shaft) and the master cylinder. This is best accomplished under the dash on standard brake cars and between the booster and the master cylinder on power brake cars. A117 Revision 3...
- Page 6 If any interferences are detected, DO NOT drive vehicle until problem can be identified and corrected. An optional wheel spacer kit is available from SSBC (P/N A2309-1). If the caliper interferes with the wheel, it may be necessary to use the 3/16” wheel spacers to clear the wheels.
- Page 7 A117 Revision 3...
- Page 8 5.76 1.05 WHEEL MOUNTING SURFACE DIMENSIONS ARE IN INCHES TEMPLATE NO. DO NOT SCALE T-041 DRAWING SSBC STAINLESS STEEL BRAKE CORP. CLARENCE, NEW YORK 14031-1720 Ph: 716-759-8666 / 800-448-7722 ~ Fx: 716-759-8688 WWW.SSBRAKES.COM...
