Steinbach 061014 Original Owner's Manual

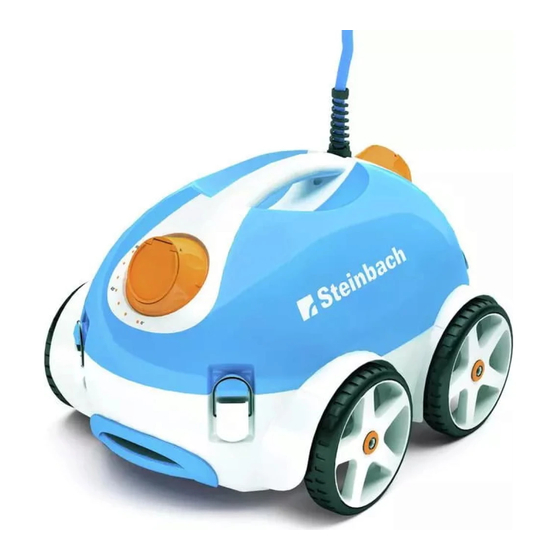

Pool cleaner
Hide thumbs Also See for 061014:
Table of Contents

Advertisement

Quick Links

Download this manual
Originalbetriebsanleitung / Original owner's manual / Notice originale / Istruzioni originali / Manual original / Původní
návod k používání / Eredeti használati utasítás / Izvirna navodila / Pôvodný návod na použitie / Instrukcja oryginalna /
Instrucțiuni originale / Originalne upute / Оригинална инструкция / Orijinal kullanım talimatları
Schwimmbadreiniger
Poolrunner
Schwimmbadreiniger......................................... 4
de
Nettoyeur de piscine........................................52
fr
Limpiafondos de piscina................................ 101
es
Úszómedence tisztító..................................... 148
hu
Čistič bazénu.................................................. 195
sk
Dispozitiv de curățare a piscinei.................. 243
ro
Уред за почистване на басейни................290
bg
Pool cleaner......................................................29
en
Pulitore per piscina...........................................77
it
Čistič bazénů.................................................. 125
cs
Čistilnik bazena.............................................. 172
sl
Odkurzacz basenowy....................................218
pl
Čistač bazena................................................ 267
hr
Yüzme havuzu temizleyicisi........................... 315
tr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 061014 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steinbach 061014

Summary of Contents for Steinbach 061014

  • Page 1 Originalbetriebsanleitung / Original owner's manual / Notice originale / Istruzioni originali / Manual original / Původní návod k používání / Eredeti használati utasítás / Izvirna navodila / Pôvodný návod na použitie / Instrukcja oryginalna / Instrucțiuni originale / Originalne upute / Оригинална инструкция / Orijinal kullanım talimatları Schwimmbadreiniger Poolrunner Schwimmbadreiniger.........
  • Page 3 Lieferumfang/Geräteteile Schwimmkabel Oberteil Filtereinheit Unterteil Steuereinheit Bürste Sicherungsseil Griff Düse Betriebsanleitung (ohne Abbildung)

  • Page 4: Package Contents/Components

    Package contents/components Floating cable Top part Filter unit Bottom part Control unit Brush Safety rope Handle Nozzle Operating instructions (without illustration)

  • Page 5: Table Of Contents

    Contents Overview........................2 Package contents/components..................28 General Information....................30 Explanation of Symbols....................30 Safety.......................... 31 Unpacking and checking the package contents............34 Description........................35 Description of the pool cleaner..................35 Functions of the control unit..................35 Basic settings.......................36 Adjusting the nozzles....................36 Attaching the brush...................... 37 Removing the brush.....................

  • Page 6: General Information

    General Information Read and keep the operating instructions These operating instructions are part of the "Pool Runner" pool cleaner (in the following also called "device"). It contains important information about startup and operation. Read the operating instructions and especially the safety instructions carefully before using the device.

  • Page 7: Safety

    Weight of the packaging unit. Dimensions of the packaging unit. Safety The following signal words are used in this user manual. This signal symbol/word denotes a hazard with an WARNING! average risk level that could lead to death or severe injury if it is not avoided.
  • Page 8 - Do not open the device; leave repairs to an expert. Contact the service address on the back of the instruction manual for this purpose. All liability and warranty claims will be void in the case of arbitrary repairs, improper connection or wrong operation. - Never touch the power cable with wet hands.
  • Page 9 - Never let the device run outside of the water as this can cause damage even after a short time. Safety instructions for persons WARNING! Danger to children and persons with reduced physical, sensory or mental capacities (such as partially disabled persons/older persons with reduced physical and mental capacities) or persons lacking experience and knowledge (such as older children).

  • Page 10: Unpacking And Checking The Package Contents

    WARNING! Risk of injury through insufficient qualification! Insufficient experience or skills for handling the required tools and insufficient knowledge of regional or normative regulations for the required work can lead to severe injuries or material damage. - Assign all work whose risks you cannot estimate due to insufficient personal experience to a qualified expert.

  • Page 11: Description

    Checking the delivery for completeness and damage 1. Open the packaging carefully. 2. Take all parts out of the packaging. 3. Check the completeness of the delivery. 4. Check the delivery for damage. Description Description of the pool cleaner The pool cleaner cleans your filled pool in automatic mode. The floating cable supplies the pool cleaner in the water with the required power and information.

  • Page 12: Basic Settings

    CYCLE function Use this function to set the cleaning cycle. Use the CYCLE button to switch between the cleaning cycles. ON/OFF function Use this function to switch the device ON and OFF. Use the ON/OFF button to switch between the following functions: - ON (Switches the device on and starts the selected cleaning cycle.) - OFF (Stops the selected cleaning cycle and switches the device off at the same time.) Basic settings...

  • Page 13: Attaching The Brush

    Attaching the brush Only attach the brush if it can assist cleaning (e.g. for removing a biofilm). In the case of an incline, unevenness or too much dirt on the floor, the brush may have an adverse effect on the cleaning result. 1.

  • Page 14: Operation

    4. Unlatch the hook of the brush strip from the inside and press the brush strip out of the bottom part of the filter unit at the same time. 5. Take out the brush strip The brush is taken out. Operation Check the following before each use: - Is there visible damage on the device?
  • Page 15 Inserting the filter unit 1. Place the filter unit in the recess of the bottom part 2. Press and hold the snap lock on one side to open it. 3. Press down the filter unit and let go of the snap lock. 4.
  • Page 16 NOTICE! A lawnmower can damage a cable placed on the ground. - Route the cable so that it cannot be damaged by a lawnmower or similar device. 1. Completely unroll the cable and place it next to the pool without twisting. 2.

  • Page 17: Switching Off The Device

    2. Connect the plug of the floating cable in the right position to the control unit and screw the connection together. 3. Attach the control unit at a distance of at least A=3.5 m to the pool with the safety rope so that it cannot be pulled into the water.
  • Page 18 1. Switch off the device after the end of the cleaning program. 2. Disconnect the control unit from the power supply and the device. 3. Lift the device out of the pool. 4. Clean the filter unit and the device. Switching off the device 1.

  • Page 19: Cleaning

    Lifting the device out of the pool WARNING! Risk of electric shock! Risk of electric shock if the control unit drops into the filled pool while it is connected to the power supply. - Pull the power plug out of the socket before lifting the device out of the pool.
  • Page 20 1. Open all snap locks. 2. Lift the top part off the bottom part 3. Press and hold the snap lock on the bottom part on one side to open it. 4. Slightly lift the filter unit and let go of the snap lock.

  • Page 21: Storage

    8. Separate the top and the bottom part of the filter unit. 9. Thoroughly rinse the bottom part and the top part with the filter bag with plain tap water. 10. Connect the top and the bottom part of the filter unit and close all latches. 11.
  • Page 22 Fault description Cause Remedy The device cannot reach all The nozzle setting is not Change the setting of the spots. suitable. nozzles. The cable is too short. Let a sufficient length of cable into the pool so that the device can reach all spots in the pool.

  • Page 23: Technical Data

    Technical data Model 061014 Input voltage 24 V Ambient temperature 10 °C to 40 °C Operating temperature (water) 10 °C to 35 °C pH value 7.0 to 7.4 Salt content of water (salt electrolysis) <0.5% Safety class IPX8 Cable length...

  • Page 24: Spare Parts

    Spare parts...
  • Page 25 061905 - snap lock for filter unit 061072 - cover lock 061073 - wheel 061074 - fixing screw for wheel 061911A - control unit for Steinbach Pool Runner 061942 - brush 061908 - spring for filter valve 061071 - carrier handle front/back...

  • Page 26: Declaration Of Conformity

    Declaration of Conformity Steinbach International GmbH hereby declares that the device meets the following directives: - 2014/35/EU (EN 60335‑1:2012+A11:2014; EN 60335‑2‑41:2003+A1:2004+A2:2010; EN 62233:2008) - 2014/30/EU (EN 55014‑1:2006+A1:2009+A2:2011; EN 55014‑2:2015; EN 61000‑3‑2:2014; EN 61000‑3‑3:2013) You can request the complete text of the EU Declaration of Conformity from the address stated at the end of this instruction manual.
