Summary of Contents for blupura TOP CONTROL

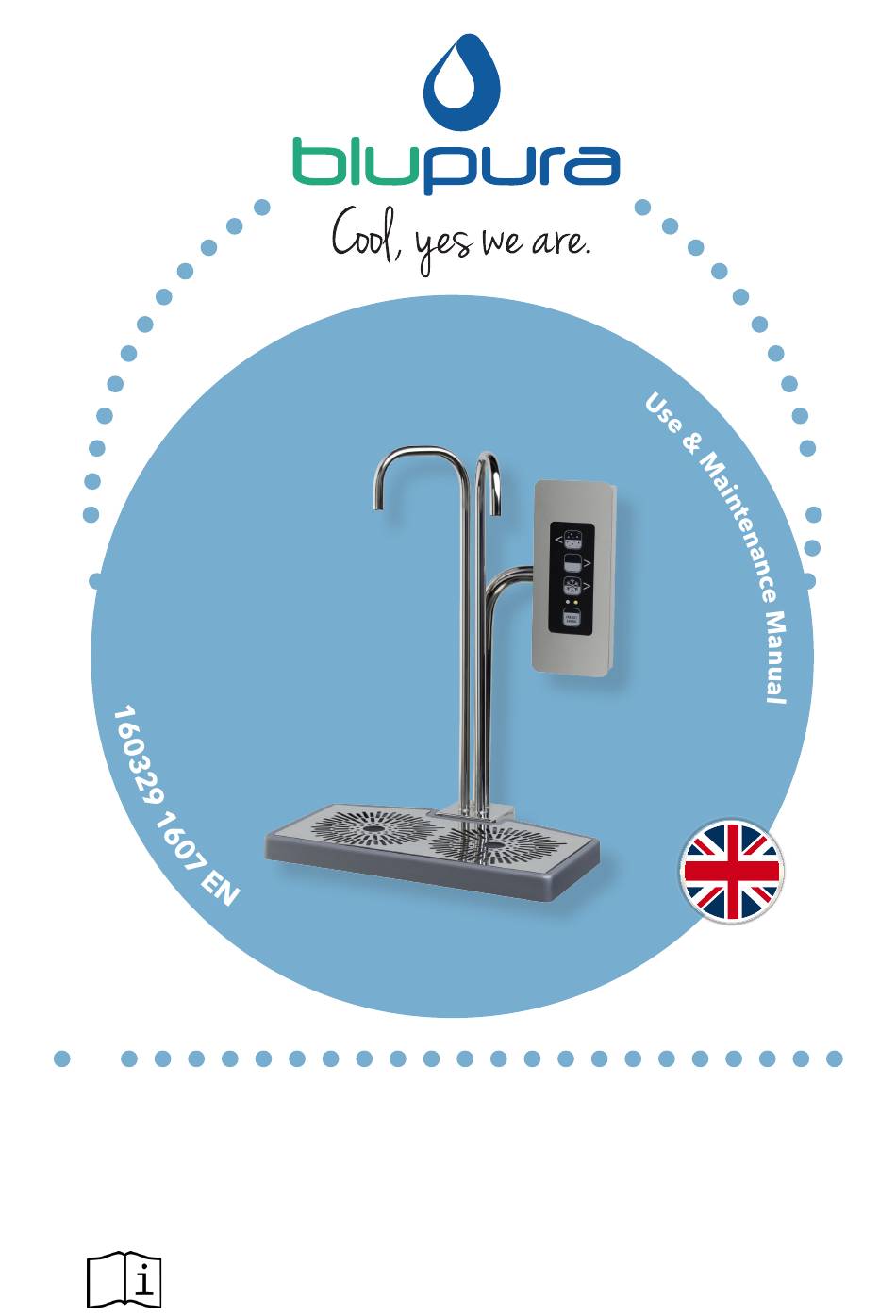

- Page 1 TOP CONTROL Before Install or use the product read to the precautions and general recommendations inside.
- Page 3 Precautions and general recommendations This appliance is intended to be used in household and similar applications such. Appliance for internal use only. Place the unit away from water jets. Always connect the product to a water cooler connected to a water main that supplies drinking water only.
-
Page 4: Table Of Contents
Index • BEFORE INSTALLING THE PRODUCT • RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT • CERTIFIED • ASSOCIATIONS • INTERNATIONAL AWARDS • DESCRIPTION OF THE UNIT • DESCRIPTION OF THE TOUCH CONTROL KEYPAD • FUNCTIONS OF THE VOLUMETRIC KEYPAD • TECHNICAL FEATURES – TECHNICAL DATA PLATE •... -
Page 5: Before Installing The Product
Before installing the product Congratulations for choosing a BLUPURA product. We have designed and manufactured this product with great care to ensure that it will dispense water of the highest quality. In order to get the most out of your product, please read the instructions in this... -
Page 6: Recommendations For Safeguarding The Environment
Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE). -
Page 7: Certified
Certified See official list ANSI/UL 399 D.M. 174 rosso 032 c UNI EN ISO 9001:2015 UNI EN ISO 14001:2015 Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation. -
Page 8: Associations
Associations International Awards 2015 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME 2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE EUROPEAN AQUA AWARDS 2015, ROME 2014 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2014, BUDAPEST 2013 - BEST PRODUCT INNOVATION EUROPEAN AQUA AWARDS 2013, BERLIN 2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE... -
Page 9: Description Of The Unit
Description of the unit TOP CONTROL — The most slender counter cooler dispenser in stainless steel with touch screen and differentiated dual supply. Less space, more features: a new valid alternative on the bench to replace the traditional manual beer taps. - Page 10 Front view Sparkling water dispensing Drip tray grid nozzle Cold/room temperature water Drip tray dispensing nozzle Touch screen control keyboard...
- Page 11 Bottom view Sparkling water inlet pipe joint Volumetric box connector Ø6mm Cold/room temperature water Locking nut M5x30 inlet pipe joint Ø6mm Sealing washer...
- Page 12 Volumetric Box Cold/room temperature water Sparkling water outlet pipe joint outlet pipe joint Ø6mm Ø6mm Cold water inlet pipe joint Sparkling water flow regulator Ø8mm Room temperature water inlet Tap connector pipe joint Ø8mm Sparkling water inlet pipe joint Power cable Ø8mm...
-
Page 13: Description Of The Touch Control Keypad
Description of the Touch Control keypad Cold sparkling water dispensing button Room-temperature water dispensing button Cold still water dispensing button Energy Saving button... -
Page 14: Functions Of The Volumetric Keypad
Functions of the volumetric keypad The supply head is provided with a touch screen panel with 4 back-lit commands: 3 commands control the supply of water, 1 controls the programming of the doses (P.4). All buttons are back-lit and always on. The supply head is equipped with a VOLUMETRIC dispensing system. - Page 15 KEY LOCK: Pressing and holding button P4 (ENERGY SAVING/ STAND BY) for more than 4 seconds will activate/deactivate the key lock (e.g. for use when you want to clean the keypad). When locked, all of the dispensing buttons are deactivated and the lights associated with the dispensing buttons flash alternately.
-
Page 16: Technical Features - Technical Data Plate
Technical Features – Technical Data Plate [mod. TOP CONTROL] 16 Year of manufacture 06 Month of manufacture 07600 Serial number... - Page 17 Technical Features - dimensions (mm) [mod. TOP CONTROL] 153,2 143,2...
- Page 18 Technical data sheet TOP CONTROL 230 V - 50 Hz Power supply Power consumption Ø 8 x 1 mm Inlet pipe connection 3,5 bar Max pressure inlet water 335 x 232 x 435 Dimensions LxDxH (mm) Net weight (kg) Gross weight (kg)
-
Page 19: Installation
Installation * Installation. All of the operations must be carried out exclusively by qualified technical personnel. To view the video tutorial, scan the QR code. Unpacking Remove the two plastic tape and the internal packing. Carefully check that the unit has not been damaged during transport. - Page 20 SHEET 1 OF 1 PRODUZIONE Connect the undercounter water Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modifiche o correzioni manuali cooler exits to the volumetric box inlets (Ø8mm). Once the pipes are attached, open the main water valve.
- Page 21 Electrical connection The connections must comply with local regulations. The grounding of the unit is a legal requirement. Connect the supply head to the volumetric box using the provided cable (1) and connect the power cable (2) to a socket. The supply head is now active and the keypad is on.
-
Page 22: Sanitization - Notes
This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization. -
Page 23: Ordinary Maintenance
Ordinary maintenance External cleaning of the unit Cleaning and user maintenance shall not be made by children without supervision. To clean the unit, use the BLUSTEEL ULTRAMICROFIBRA cloth (code 190094), which is specifically designed for our products. Alternatively, you can use a soft cloth and a dedicated product for the cleaning of stainless steel. -
Page 24: Service History
Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature... -
Page 25: Warranty Conditions
Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects. - Page 27 160329 - Rev. 00 - 20/06/2017 - 17:03...
- Page 28 Blupura srl - Registered office - Via F.lli Brancondi, 56 60025 Loreto (AN) Italy - Headquarters - Via Erideo Marinucci, 2/4 62019 Recanati (MC) Italy Tel +39 071 9710080 Fax +39 071 9710084 info@blupura.com www.blupura.com...
