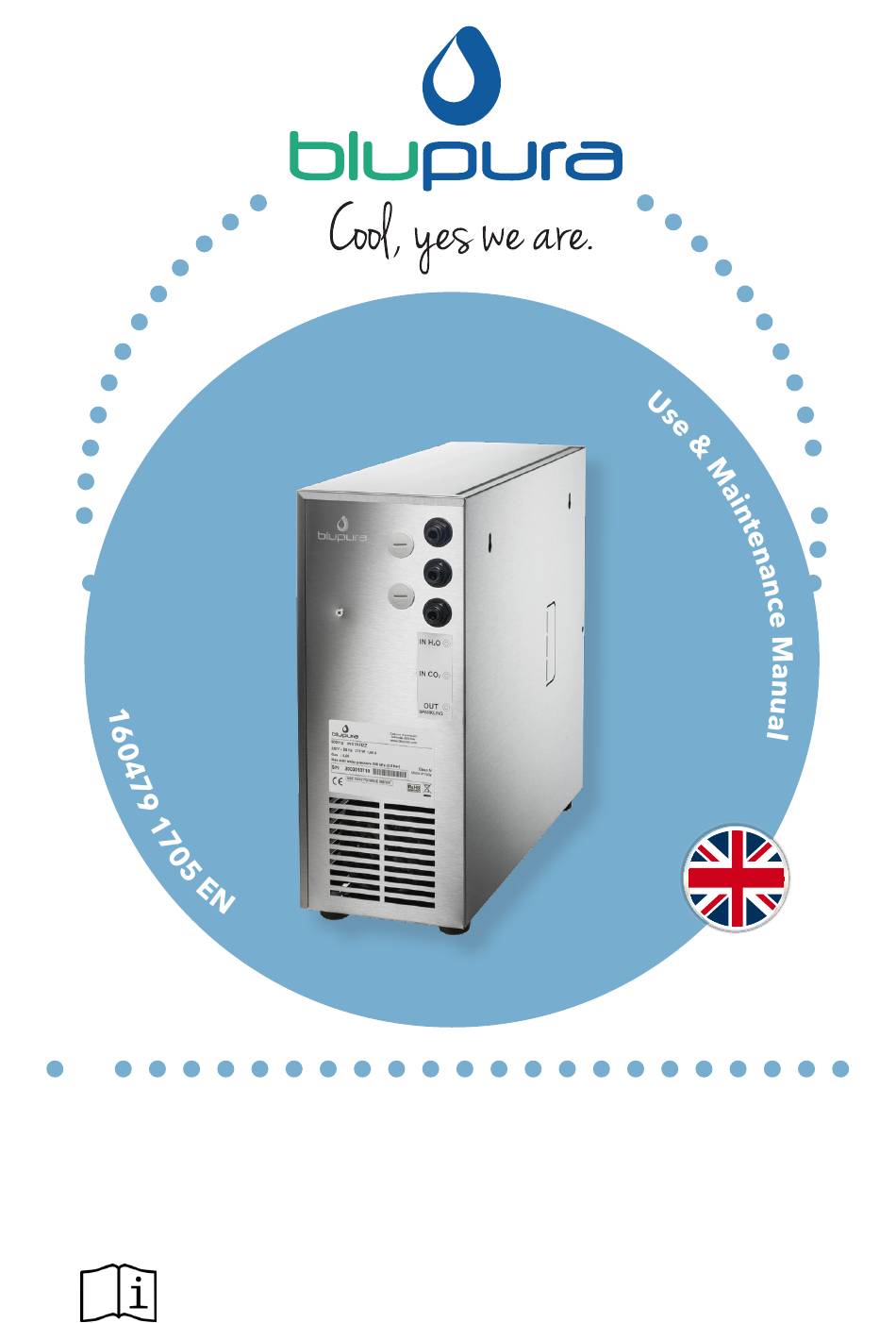

- Page 1 INSTAFIZZ Before installing or using the product read the precautions and general recommendations inside.
-
Page 3: Precautions And General Recommendations
Precautions and general recommendations This appliance is intended to be used in household and similar applications such. Appliance for internal use only. Place the unit away from water jets. Always connect the water cooler to a water main that supplies drinking water only. - Page 4 Index • BEFORE INSTALLING THE WATER COOLER • RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT • CERTIFIED • ASSOCIATIONS • INTERNATIONAL AWARDS • DESCRIPTION OF THE UNIT • TECHNICAL FEATURES – TECHNICAL DATA PLATE • INSTALLATION • INSTALLATION OF THE CO CYLINDER •...
-
Page 5: Before Installing The Water Cooler
The original text of this publication, written in Italian, is the only reference for settling any interpretative disputes regarding the translations of EU languages. Blupura reserves the right to change or modify the stated features without prior notice. 160479 - Rev. 02 - 03/2020... -
Page 6: Recommendations For Safeguarding The Environment
Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE). -
Page 7: Electrical Safety
Certified See official list ANSI/UL 399 D.M. 174 rosso 032 c UNI EN ISO 9001:2015 UNI EN ISO 14001:2015 Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation. - Page 8 Associations International Awards BEST MARKETING CAMPAIGN BEST ENVIRONMENTAL PRACTICE BEST PROMOTION OF HEALTH AND HYDRATION BEST SERVICE PERSON EUROPEAN AQUA AWARDS 2019, BERLIN BEST WEBSITE EUROPEAN AQUA AWARDS 2018, DUBLIN BEST MARKETING CAMPAIGN EUROPEAN AQUA AWARDS 2017, KRAKOW BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME BEST PROMOTION OF HEALTH AND HYDRATION...
-
Page 9: Description Of The Unit
Description of the unit INSTAFIZZ - Warm carbonator for the production of water at room temperature, suitable for combination with an external chiller. The main features of the unit are as follows: • 1 liter professional carbonator. • Compact design in robust skinplate sheet. -
Page 10: Front View
Front view Drinking water inlet pipe joint Sparkling water outlet pipe joint Ø8mm (5/16”) Ø8mm (5/16”) inlet pipe joint Ø8mm (5/16”) 160479 - Rev. 02 - 03/2020... - Page 11 Technical Features – Technical Data Plate [mod. INSTAFIZZ] 16 Year of manufacture 12 Month of manufacture 014212 Serial number 160479 - Rev. 02 - 03/2020...
-
Page 12: Technical Data Sheet
Technical Features - dimensions (mm) [mod. INSTAFIZZ] Technical data INSTAFIZZ sheet Carbonator capacity 1 lt Pump Professional carbonator pump 200 Lt/h Supply 230 V - 50 Hz Power 370 W - 1,6 A Inlet water and CO Ø 8 mm (5/16”) Outlet H Ø... -
Page 13: Installation
Installation Unpacking Pull up the cardboard box and the inner caps. Carefully check that the watercooler has not been damaged during transport. Any signs of damage must be reported to the Agent immediately. Ensure that a qualified technician connects it to the electric supply following the manufacturer’s instructions and according to the local safety regulations The end user is not permitted to access... -
Page 14: Connection To The Mains Water Supply
Connection to the mains water supply CAUTION! To connect the water cooler to the mains water supply, you will need to use a new set of connectors (joints, gaskets and pipes). Do not use a set of connectors that has already been used elsewhere. - Page 15 Installation of the CO cylinder Once the unit is connected to the mains water and electricity, you can install the E290 food-grade carbon dioxide (CO cylinder. On request, a CO pressure reducer with its cylinder to assemble outside the machine can be supplied. Insert the CO inlet tube from the cylinder into the joint (1).
-
Page 16: Handling The Gas Cylinders
Handling the gas cylinders All of the cylinders must be fitted with a valve protector cap, which must be on tight at all times when the cylinder is not in use. Valve connection The cylinders must be handled with care. It is essential to avoid: clashes with other cylinders or surfaces;... -
Page 17: Sanitization - Notes
This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization. -
Page 18: Service History
Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature 160479 - Rev. 02 - 03/2020... -
Page 19: Warranty Conditions
Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects. - Page 20 Blupura srl Via Gandolfi, 6 40057 Cadriano Di Granarolo Dell’Emilia (BO) Italy Headquarters: Via Erideo Marinucci, 2/4 62019 Recanati (MC) Italy Tel +39 071 9710080 Fax +39 071 9710084 info@blupura.com www.blupura.com...
