Summary of Contents for blupura PANTAREI

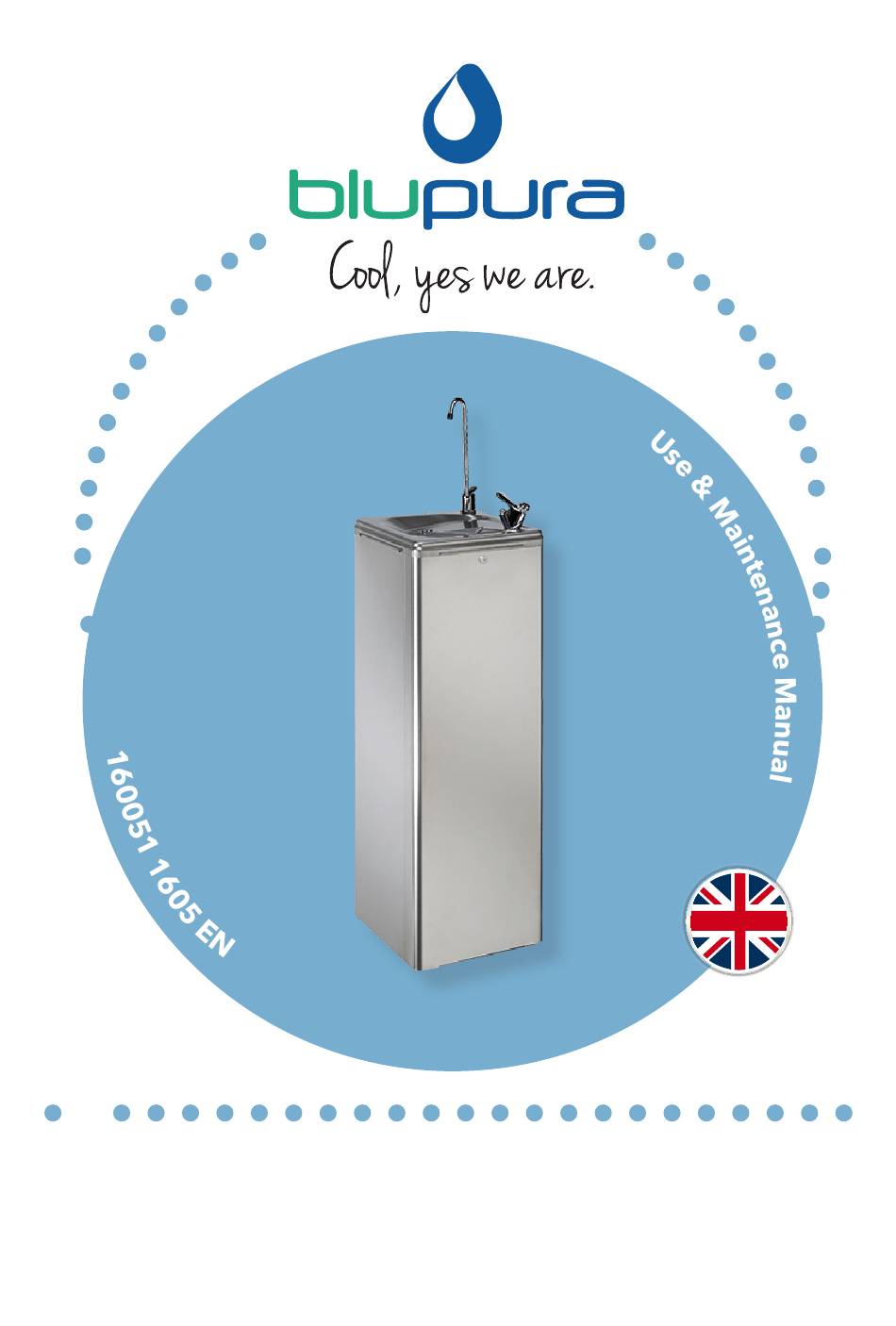

- Page 1 PANTAREI...
- Page 3 Index • BEFORE INSTALLING THE WATER COOLER • RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT • DECLARATION OF CONFORMITY • ASSOCIATIONS • INTERNATIONAL AWARDS • PRECAUTIONS AND GENERAL RECOMMENDATIONS • DESCRIPTION OF THE UNIT • TECHNICAL FEATURES • INSTALLATION • INSTALLATION OF THE CO CYLINDER (FIZZ MODEL) •...
-
Page 4: Before Installing The Water Cooler
Before installing the water cooler Congratulations for choosing a BLUPURA product. We have designed and manufactured this product with great care to ensure that it will dispense water of the highest quality. In order to get the most out of your water cooler, please read the instructions in... -
Page 5: Recommendations For Safeguarding The Environment
Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). -
Page 6: Declaration Of Conformity
Declaration of conformity D.M. 174 UNI EN ISO 9001:2015 UNI EN ISO 14001:2015 rosso 032 c Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation. - Page 7 Associations International Awards 2015 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME 2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE EUROPEAN AQUA AWARDS 2015, ROME 2014 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2014, BUDAPEST 2013 - BEST PRODUCT INNOVATION EUROPEAN AQUA AWARDS 2013, BERLIN 2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE...
-
Page 8: Precautions And General Recommendations
Precautions and general recommendations Always connect the water cooler to a water main that supplies drinking water only. Before each installation, the unit must be sanitized by an authorized technician. After installation, ensure that the unit is not resting on the power cable. -
Page 9: Description Of The Unit
Description of the unit PANTAREI - The first water-fountain water-cooler on the market with the sparkling water option! Available, on request, with natural refrigerant gas. The main features of the unit are as follows: • Modern design and natural materials like ecological gas, high quality construction, front opening. -
Page 10: Front View
Front view Stainless steel sink Front panel security lock Still water dispensing swan neck Removable stainless steel door tap (removable) or sparkling water tap (removable) Water dispensing bubbler tap Feet (removable) -
Page 11: Rear View
Rear view Power cable Sink drain Ø18mm... - Page 12 Technical Features – Technical Data Plate [mod. Pantarei] 13 Year of manufacture 12 Month of manufacture 00000 Serial number...
- Page 13 Technical Features - dimensions (mm) [mod. Pantarei] Dimensions Mod. PANTAREI Mod. PANTAREI FIZZ L x W x H (mm) 310 x 310x h 1270 310 x 310 x h 1270...
-
Page 14: Forced Ventilation
Technical data Pantarei Pantarei FIZZ sheet 20 lt/h Cooling capacity Max continuous 3 lt dispensing 5°-12°C * Water temperature Direct cooling tank Cooling system 4 lt Tank capacity Single-phase 230V-50Hz Power supply 185 W 205 W Power consumption 150 W... -
Page 15: Installation
Installation Unpacking Remove the two plastic tape. Remove the cardboard box and the internal protective packaging by sliding them up and over the top. Once you have unpacked the unit, ensure that it is not damaged. You must inform the reseller about any damages as soon as possible after delivery. -
Page 16: Connection To The Mains Water Supply
Connection to the mains water supply Caution! To connect the water cooler to the mains water supply, you will need to use a new set of connectors (joints, gaskets and pipes). Do not use a set of connectors that has already been used elsewhere. -
Page 17: Electrical Connection
Electrical connection The connections must comply with local regulations. The grounding of the unit is a legal requirement. Connect the power cable (1) to a socket. The compressor and fan are now activated. On the FIZZ models, the pump for filling the carbonator with water is also activated. - Page 18 Installation of the CO cylinder (FIZZ model) Once the unit is connected to the mains water and electricity, and the cooling tank has been filled, you can install the E290 food-grade carbon dioxide (CO cylinder. The machine is NOT equipped with the CO pressure reductor, which must be ordered separately.
-
Page 19: Handling The Gas Cylinders
Handling the gas cylinders All of the cylinders must be fitted with a valve protector cap, which must be on tight at all times when the cylinder is not in use. Valve connection The cylinders must be handled with care. It is essential to avoid: clashes with other cylinders or surfaces;... - Page 20 Filtration (optional) Everpure 4C filter On request, the unit can be fitted with an Everpure 4C filter. MAIN FEATURES This filter removes the odour and flavour of chlorine and other contaminants that can alter the taste of the water. The Precoat microfiltration system removes impurities and particles with dimensions of 0.5 microns and above.
- Page 21 Filtration (optional) UV sterilizing filter Alongside the Everpure 4C filter, it is also possible to install an UV sterilizing filter on the water exit point to avoid backflow contamination and a sterilizing filter on the water entry point. The UV-C light emitted by the special 12W mercury vapour lamp is lethal for all micro- organisms (bacteria, viruses, mould, algae, etc.);...
-
Page 22: Sanitization - Notes
This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization. -
Page 23: Ordinary Maintenance
Ordinary maintenance External cleaning of the unit To clean the unit, use the BLUSTEEL ULTRAMICROFIBRA cloth (code 190094), which is specifically designed for our products. Alternatively, you can use a soft cloth and a dedicated product for the cleaning of stainless steel. To remove limescale, use DAILY CLEANER SPRAY (cod. -
Page 24: Service History
Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature... -
Page 25: Warranty Conditions
Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects. - Page 27 160051 - Rev. 00 - 18/04/2017 - 16:56...
- Page 28 Blupura srl - Registered office - Via F.lli Brancondi, 56 60025 Loreto (AN) Italy - Headquarters - Via Erideo Marinucci, 2/4 62019 Recanati (MC) Italy Tel +39 071 9710080 Fax +39 071 9710084 info@blupura.com www.blupura.com...
