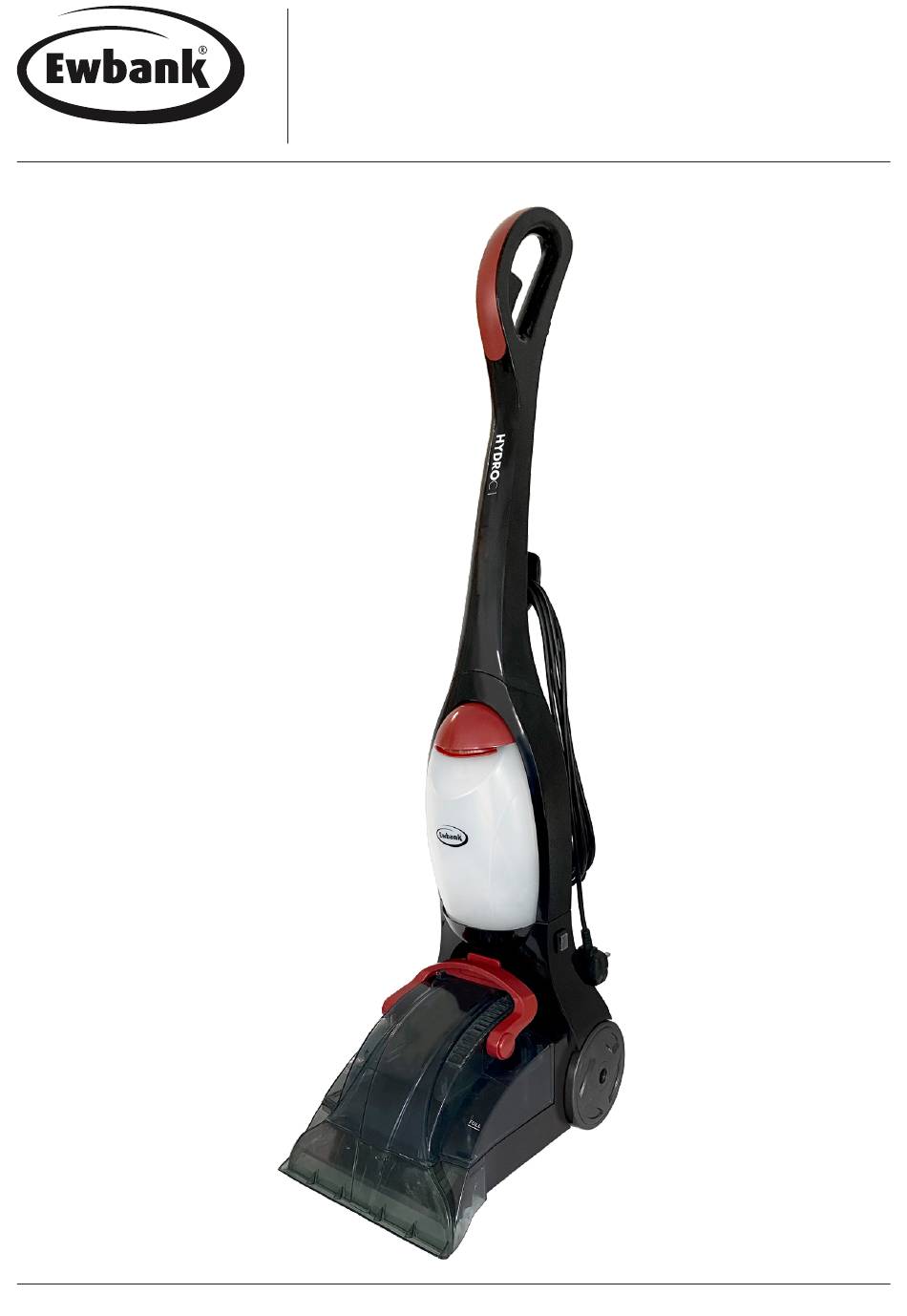

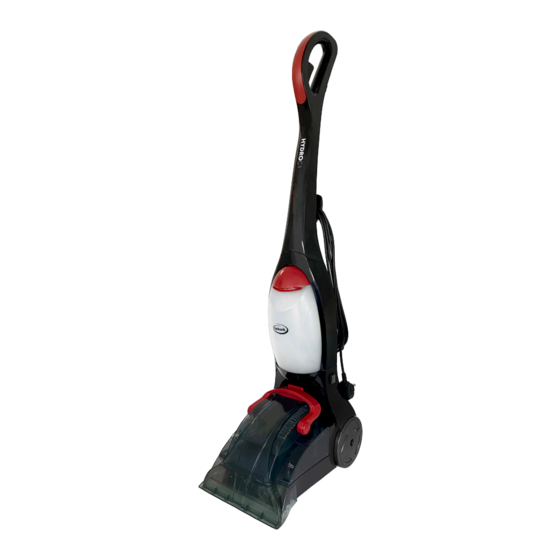

- Page 1 INSTRUCTION MANUAL EW3070 HYDROC1 Corded Compact Carpet Cleaner Ewbank has a British heritage to be proud of. It’s a household favourite and much loved brand that has been providing innovative cleaning solutions for over 140 years.
- Page 2 Safety Instructions ................... 3 - 6 Appliance Overview ...................7 Product Assembly ....................8 Operating Instructions ................... 9 - 11 Cleaning & Maintenance ................12 - 13 Troubleshooting ..................14 - 15 Specifications ....................16 Fuse Replacement....................17 Disposal of the Appliance ..................17 Warranty Terms & Conditions ................18...
- Page 3 • Do not use the appliance for anything other than its intended purpose, and only use it as described in this manual • Do not use any accessories with the appliance that are not supplied or specifically recommended Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272...
- Page 4 • When using electric appliances always observe safety regulations where applicable to reduce the risk of fire, electric shock and personal injury • Always check that the power supply corresponds to the voltage on the rating plate Supply Cord and Plug •...
- Page 5 • Children should be supervised to ensure that they do not play with the appliance Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272...
- Page 6 Damaged or Dropped • Always inspect your appliance before use. Check parts are correctly attached • Do not use this appliance if it has been damaged, dropped, left outdoors or dropped in water; return it to an authorised service dealer for examination and repair Water •...
- Page 7 19. Dirty Water Tank Cap Dirty Water Tank Handle 20. Filter 10. Dirty Water Tank Locking Hatch 21. Motor Filter 11. Clean Water Tank Required Tools (not included): Phillips Screwdriver Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272...
- Page 8 Improper handling of the product may cause injury. • Do not connect the product to a mains socket until it is fully assembled • Do not operate the product without the handle being firmly screwed into place Set the product in an upright position Place the handle (1) firmly onto the main body of the product (see below).
-
Page 9: Filling The Clean Water Tank
Place the clean water tank back into position by pushing it down until it clicks into place Repeat the steps above (except step 4) to empty the clean water tank after use and before storage Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272... - Page 10 CLEANING A CARPET Before cleaning, determine where to start and stop, making sure you will not walk over previously cleaned areas. • Do not oversaturate the carpet with the cleaning solution • For heavily soiled areas, additional applications may be necessary Plug the mains cord (16) into a mains socket and turn the product on by setting the on/off switch 5 to the ON position (I) Step on the handle top release pedal (17) to lower the handle (1) into the...
-
Page 11: Emptying The Dirty Water Tank
“lock” position. Then place the dirty water tank back into the product (see Fig. C) Push the dirty water tank handle down until the dirty water tank locking latch clicks into place Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272... -
Page 12: Cleaning The Filters
Risk of injury! Improper handling of the product may cause injury. • Always unplug the product when not in use, refilling the tanks, cleaning it, or performing maintenance Risk of damage! Improper handling of the product may cause damage. • Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like. - Page 13 You can lift and carry the carpet washer using the carrying handle. Never pull or lift the appliance by the cord • Before putting the appliance away, Switch off the socket, unplug, and wrap the cord around the storage hooks Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272...
- Page 14 If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: SOLUTIONS/TIPS PROBLEM POSSIBLE CAUSES Brush malfunction Make sure brush roll and brush roll cover installed correctly, clean brush roll and debris channel The sponge for pre-filter Clean the pre-filter is dirty...
- Page 15 Danger! Never try to repair a defective appliance yourself. You can put yourself and/ or future users in danger. Repairs must only be done by a service engineer. Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272...
- Page 16 Model: EW3070 HYDROC1 Rated Voltage: 220-240V~50-60Hz Power Consumption: 500W Protection Class: IP Protection: IPX4 Clean Water Tank: 1.6L to FULL line (Max. capacity 2.3L) Dirty Water Tank: 1.8L to FULL line (Max. capacity 2.5L) Product Dimensions: H:1080 x W:420 x D:250mm Net Weight: 5.7 kg...
- Page 17 Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272...
- Page 18 Ewbank Warranty Terms & Conditions This product is guaranteed for a period of 24 months as standard from the date of purchase against mechanical and electrical defects. To qualify for the warranty, the product must be used for domestic household use only and in accordance with the instructions in the user manual.
- Page 19 Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272...
- Page 20 EU: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR Tel: 01473 271 272 Disclaimer: Ewbank operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice.
