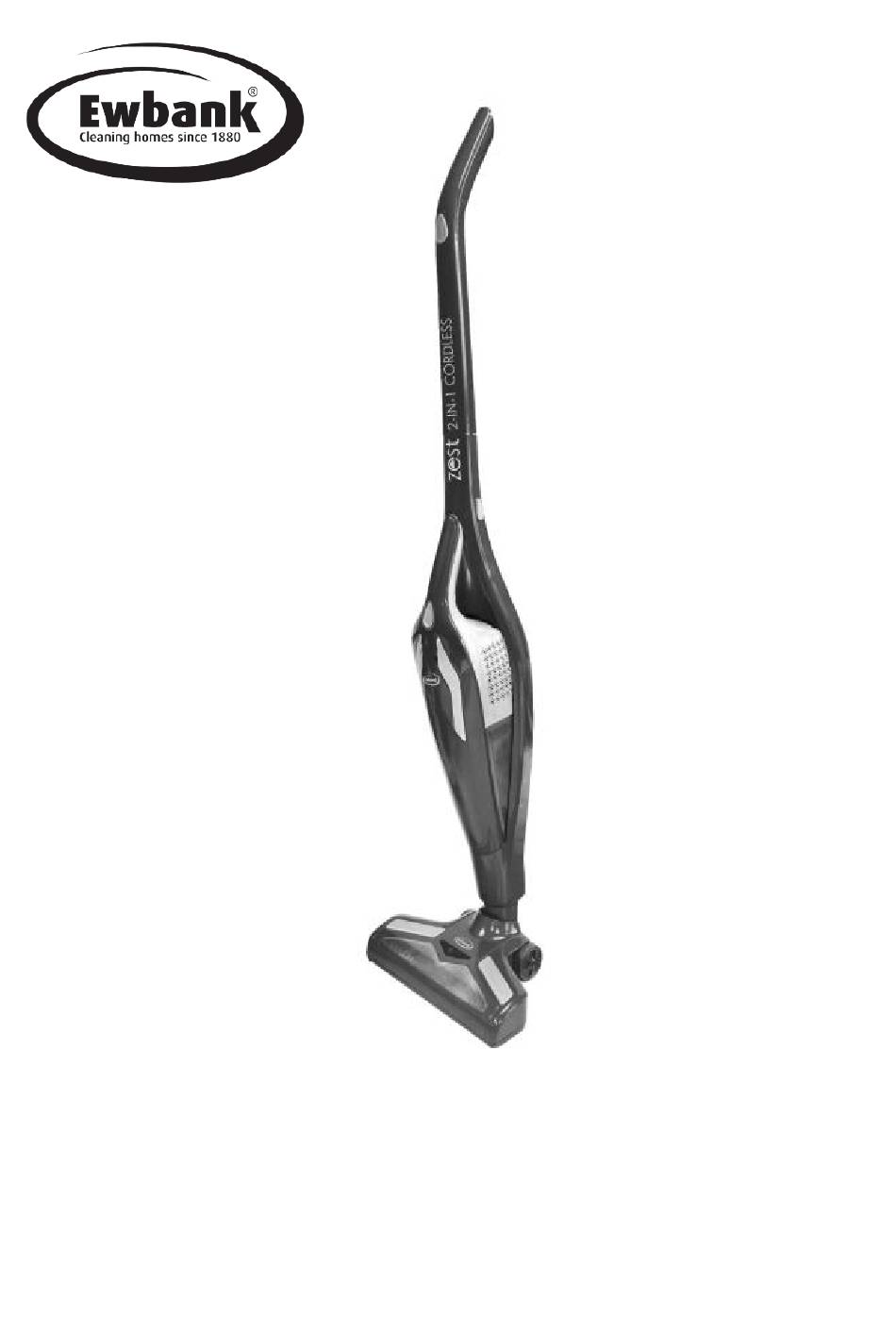

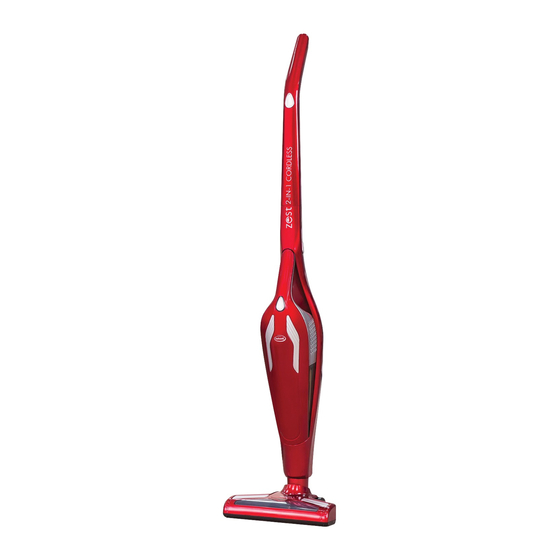

- Page 1 Zest Model CVZ135 DC22V 2200 mAh output Lithium Ion battery Care and Use Instructions Ewbank LLC, 8261 Highway 73, Suite F, Stanley, NC 28164, USA Tel: 855-439-2265 Email: enquiries@ewbankus.com www.ewbankus.com DO NOT VACUUM LIQUIDS WITH THIS PRODUCT...
- Page 2 Thank you for buying your Ewbank Zest®, we hope you enjoy using it. Please read these instructions carefully before using your Zest® cordless vacuum and retain these instructions for future reference. Pack Contents: Handheld unit Upright body/handle assembly Motorized floor brush...
- Page 3 The product must only be used with the charging adaptor supplied with the product or a replacement purchased from Ewbank or one of our distributors. Never use the charging station with multiple plug or extended power cord. The charging plug needs to fit directly into the socket.
- Page 4 23. If you are replacing the batteries, the old batteries must be correctly recycled. 24. Please use the product according to these instructions and use only Ewbank accessories. 25. The battery is Lithium-Ion, rechargeable. Each of the 6 cells is 3.7V these are packaged into a single unit.
- Page 5 The battery should be fully charged before first use. Fig.2 On/off switch 1 Main body Handheld unit release button On/off switch 2 & indicator light Handheld unit Motorized Charger cable/plug floor brush Charger base plate Charging your Zest Fix the handle to the main body by using the locking “screw” to secure the handle in place. Attach the motorized floor brush onto the base of the main unit/body.
- Page 6 Operation instruction The product has dual speed, press switch once for standard, a second time for high speed and a third to turn off. When the product is in use, the switch indicator lights continuously, when the light starts to flash the battery is nearly exhausted. If there is no suction or the motor is not rotating, then the battery needs to be charged.
- Page 7 Emptying the waste chamber & cleaning The handheld unit is fitted with the dust chamber and filters in place, so to disassemble the unit follow the instructions below to empty the waste chamber and clean the filters. The dust chamber is removed by pressing the button on the underside of the dust chamber. This can now be lifted and pulled away from the rest of the unit.
- Page 8 Air freshener inserts assembly / use To give your home a clean fresh fragrance while vacuuming, Ewbank fragranced filter inserts are available for your Zest, simply remove the chosen fragranced filter inserts from the plastic sleeve and insert as directed into the metal basket filter before refitting the assembled dust chamber.
-
Page 9: Cleaning And Maintenance
Cleaning and Maintenance Separate the filter/waste chamber into the component parts and empty the dust chamber. Fig.9 Warm soapy water can be used for the plastic/metal parts. ALL filter and cyclone parts must be completely dry before re-use. We recommend the dust chamber is emptied before the level of dirt reaches the max scale line on the outer waste chamber. -
Page 10: Troubleshooting
Troubleshooting Fault Reason Treatment The unit isn’t The battery is not charged or has Charge the battery. When charging working cut out due to reaching its the neon light behind the on/off minimal voltage switch 1 and 2 flashes. Check the charger unit is not damaged and plugged into charging station The brush roller... -
Page 11: Use Of Accessories
Use of Accessories Fig.13 Accessories and Spares To keep your Zest in best working condition and to maintain fragrance during operation you will need to purchase replacement parts. These are available either from your dealer or direct from us at www.ewbankus.com Fragranced Air Freshener Inserts We currently offer two fragrance varieties –... -
Page 12: Your Warranty
This product is guaranteed for a period of 12 months against faulty materials and workmanship. While every possible care is taken by Ewbank LLC to ensure that our products leave the factory in good working order, Ewbank LLC cannot under any circumstances accept liability for problems or damage caused by their subsequent use.
