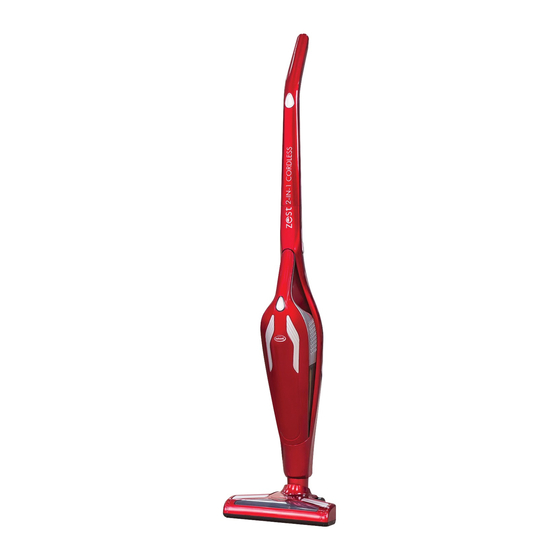

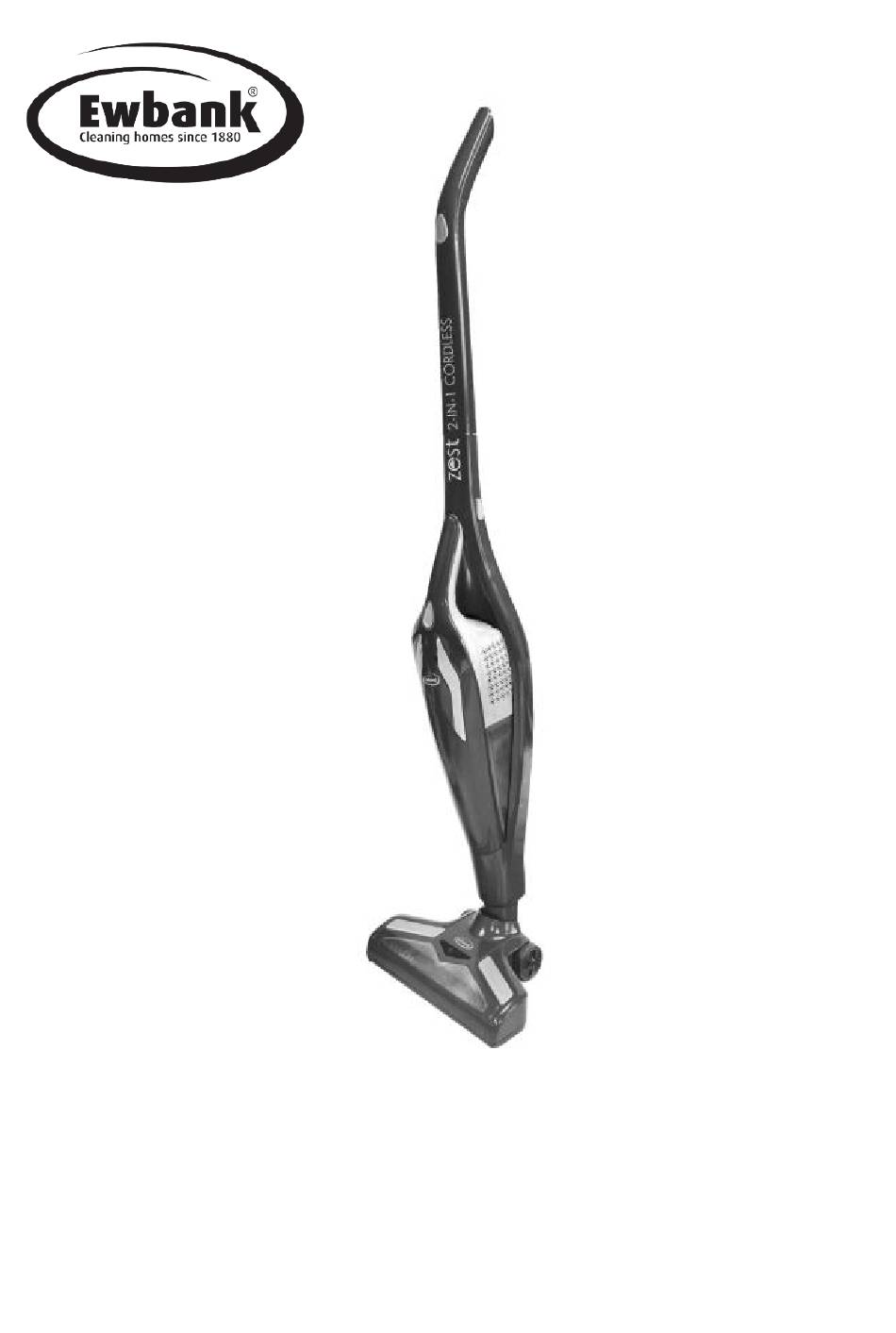

- Page 1 Zest Model CVZ135 DC22V 2200 mAh output Lithium Ion battery Care and Use Instructions Ewbank Products Ltd Ashcombe Court, Woolsack Way Godalming, Surrey, GU7 1LQ Telephone: +44 (0) 1483 663050 Email: enquiries@ewbank.co.uk Website: www.ewbank.co.uk DO NOT VACUUM LIQUIDS WITH THIS PRODUCT...
- Page 2 Thank you for buying your Ewbank Zest®, we hope you enjoy using it. Please read these instructions carefully before using your Zest® cordless vacuum and retain these instructions for future reference. Pack Contents: Handheld unit Upright body/handle assembly Motorised floor brush...
- Page 3 The appliance must only be used with the charging adaptor supplied with the product or a replacement purchased from Ewbank or one of our distributors. Never use the charging station with multiple plug or extended power cord. The charging plug needs to fit direct into the socket.
- Page 4 23. If you are replacing the batteries, the old batteries must be correctly recycled. 24. Please use the vacuum cleaner according to these instructions and use only Ewbank accessories. 25. The battery is Lithium-Ion, rechargeable. Each of the 6 cells is 3.7V these are packaged into a single unit.
- Page 5 The battery should be fully charged before first use. Fig.2 On/off switch 1 Main body Handheld unit release button On/off switch 2 & indicator light Handheld unit Motorised floor brush Charger cable/plug Charger base plate Charging your Zest Fix the handle to the main body by using the locking “screw” to secure the handle in place. Attach the motorised floor brush onto the base of the main unit/body.
- Page 6 Operation instruction The unit has dual speed, press switch once for standard, a second time for high speed and a third to turn off. When the unit is in use, the switch indicator lights continuously, when the light starts to flash the battery is nearly exhausted. If there is no suction or the brush is not rotating, then the battery needs to be charged.
- Page 7 Emptying the waste chamber & cleaning The handheld unit is fitted with dust chamber and filters in place on delivery, so to disassemble the unit follow the instructions below to empty the waste chamber and clean the filters. The dust chamber is removed by pressing the button on the underside of the dust chamber.
- Page 8 Air freshener card assembly / use To give your home a clean fresh fragrance whilst vacuuming, Ewbank fragrance cards are available for your Zest, simply remove the chosen fragrance card from the plastic sleeve and insert as directed into the metal basket filter before refitting the assembled dust chamber.
-
Page 9: Cleaning And Maintenance
Cleaning and Maintenance Separate the filter and waste chamber into the component parts and empty the dust chamber. Fig.9 Warm soapy water can be used for the plastic and metal parts. ALL filter and cyclone parts must be dry before re-use. We recommend the dust chamber is emptied before the level of dirt reaches the max scale line on the outer waste chamber. -
Page 10: Troubleshooting
If you experience any quality issues please contact our Quality Department on 01260 272132. For further information on this product and viewing the product in use, please visit our website: www.ewbank.co.uk Disposal of battery Remove the built-in rechargeable battery before disposal of the appliance. Please make sure that the batteries are disposed of at an officially assigned location, it should not be mixed with general household waste. -
Page 11: Use Of Accessories
To keep your Zest in best working condition and to maintain fragrance during operation you will need to purchase replacement parts. These are available either from your retailer or direct from us at www.ewbank.co.uk Fragrance Cards We currently offer two fragrance varieties – Fresh Cotton or Vanilla Zest. These are supplied in packs of 6 of each fragrance or a mixed pack with three of each. -
Page 12: Your Guarantee
This guarantee does not affect your statutory rights. For spares, service and further information please contact; Ewbank Products Ltd, Ashcombe Court, Woolsack Way, Godalming, GU7 1LQ, UK Tel: 01483 663050. Opening hours Mon-Thu 8:30am – 5.00pm / Fri 8:30am – 4.00pm www.ewbank.co.uk...
