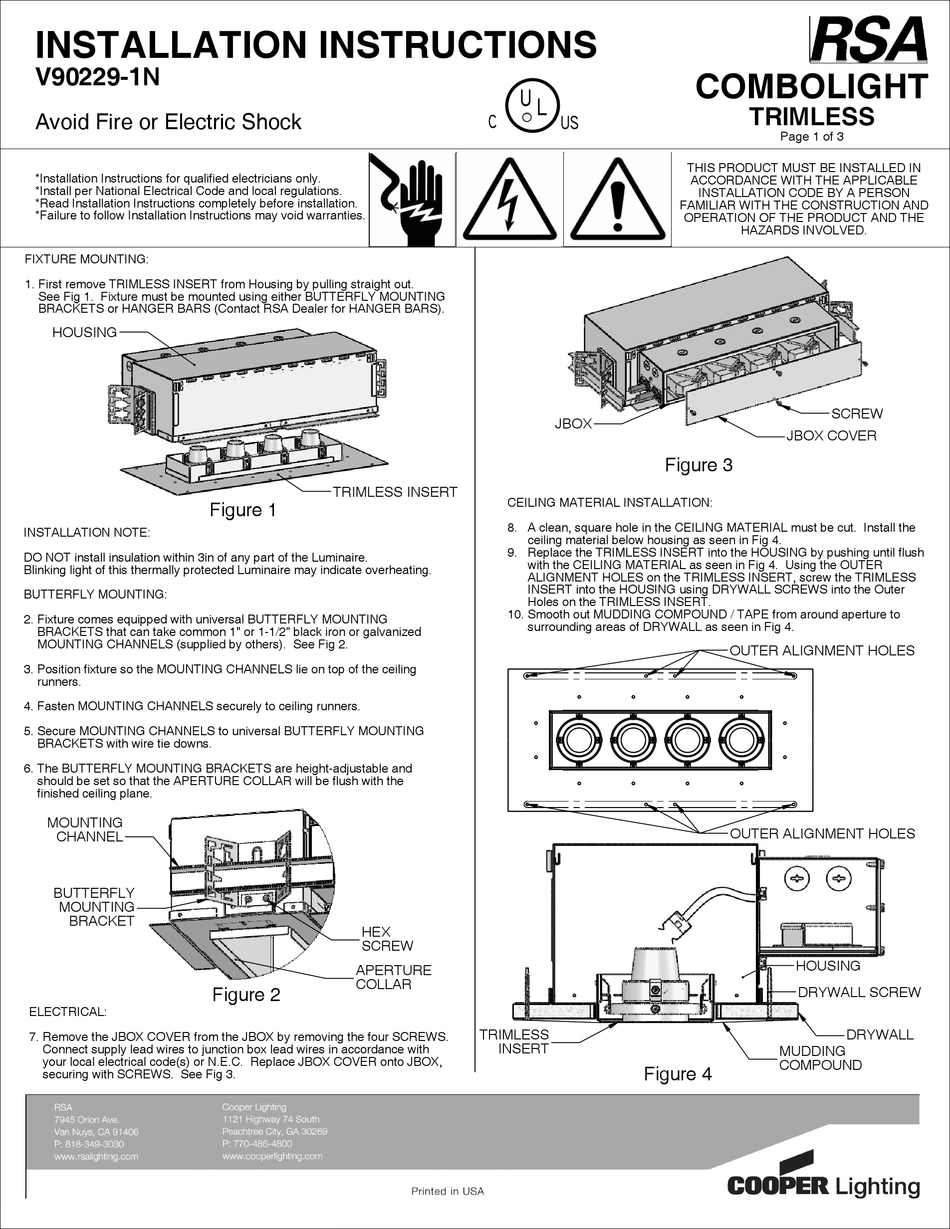

Cooper Lighting Combolight Trimless V90229-1N Installation Instructions

INSTALLATION INSTRUCTIONS

V90229-1N
Avoid Fire or Electric Shock
*Installation Instructions for qualified electricians only.
*Install per National Electrical Code and local regulations.
*Read Installation Instructions completely before installation.
*Failure to follow Installation Instructions may void warranties.
FIXTURE MOUNTING:
1. First remove TRIMLESS INSERT from Housing by pulling straight out.
See Fig 1. Fixture must be mounted using either BUTTERFLY MOUNTING
BRACKETS or HANGER BARS (Contact RSA Dealer for HANGER BARS).
HOUSING
INSTALLATION NOTE:
DO NOT install insulation within 3in of any part of the Luminaire.
Blinking light of this thermally protected Luminaire may indicate overheating.
BUTTERFLY MOUNTING:
2. Fixture comes equipped with universal BUTTERFLY MOUNTING
BRACKETS that can take common 1" or 1-1/2" black iron or galvanized
MOUNTING CHANNELS (supplied by others). See Fig 2.
3. Position fixture so the MOUNTING CHANNELS lie on top of the ceiling
runners.
4. Fasten MOUNTING CHANNELS securely to ceiling runners.
5. Secure MOUNTING CHANNELS to universal BUTTERFLY MOUNTING
BRACKETS with wire tie downs.
6. The BUTTERFLY MOUNTING BRACKETS are height-adjustable and
should be set so that the APERTURE COLLAR will be flush with the
finished ceiling plane.
MOUNTING
CHANNEL
BUTTERFLY
MOUNTING
BRACKET
ELECTRICAL:
7. Remove the JBOX COVER from the JBOX by removing the four SCREWS.
Connect supply lead wires to junction box lead wires in accordance with
your local electrical code(s) or N.E.C. Replace JBOX COVER onto JBOX,
securing with SCREWS. See Fig 3.
TRIMLESS INSERT
Figure 1
HEX
SCREW
APERTURE
COLLAR
Figure 2




R
JBOX
CEILING MATERIAL INSTALLATION:
8. A clean, square hole in the CEILING MATERIAL must be cut. Install the
ceiling material below housing as seen in Fig 4.
9. Replace the TRIMLESS INSERT into the HOUSING by pushing until flush
with the CEILING MATERIAL as seen in Fig 4. Using the OUTER
ALIGNMENT HOLES on the TRIMLESS INSERT, screw the TRIMLESS
INSERT into the HOUSING using DRYWALL SCREWS into the Outer
Holes on the TRIMLESS INSERT.
10. Smooth out MUDDING COMPOUND / TAPE from around aperture to
surrounding areas of DRYWALL as seen in Fig 4.
TRIMLESS
INSERT
Figure 4
COMBOLIGHT
TRIMLESS
Page 1 of 3
THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
SCREW
JBOX COVER
Figure 3
OUTER ALIGNMENT HOLES
OUTER ALIGNMENT HOLES
HOUSING
DRYWALL SCREW
MUDDING
COMPOUND
DRYWALL
