MOUNTING

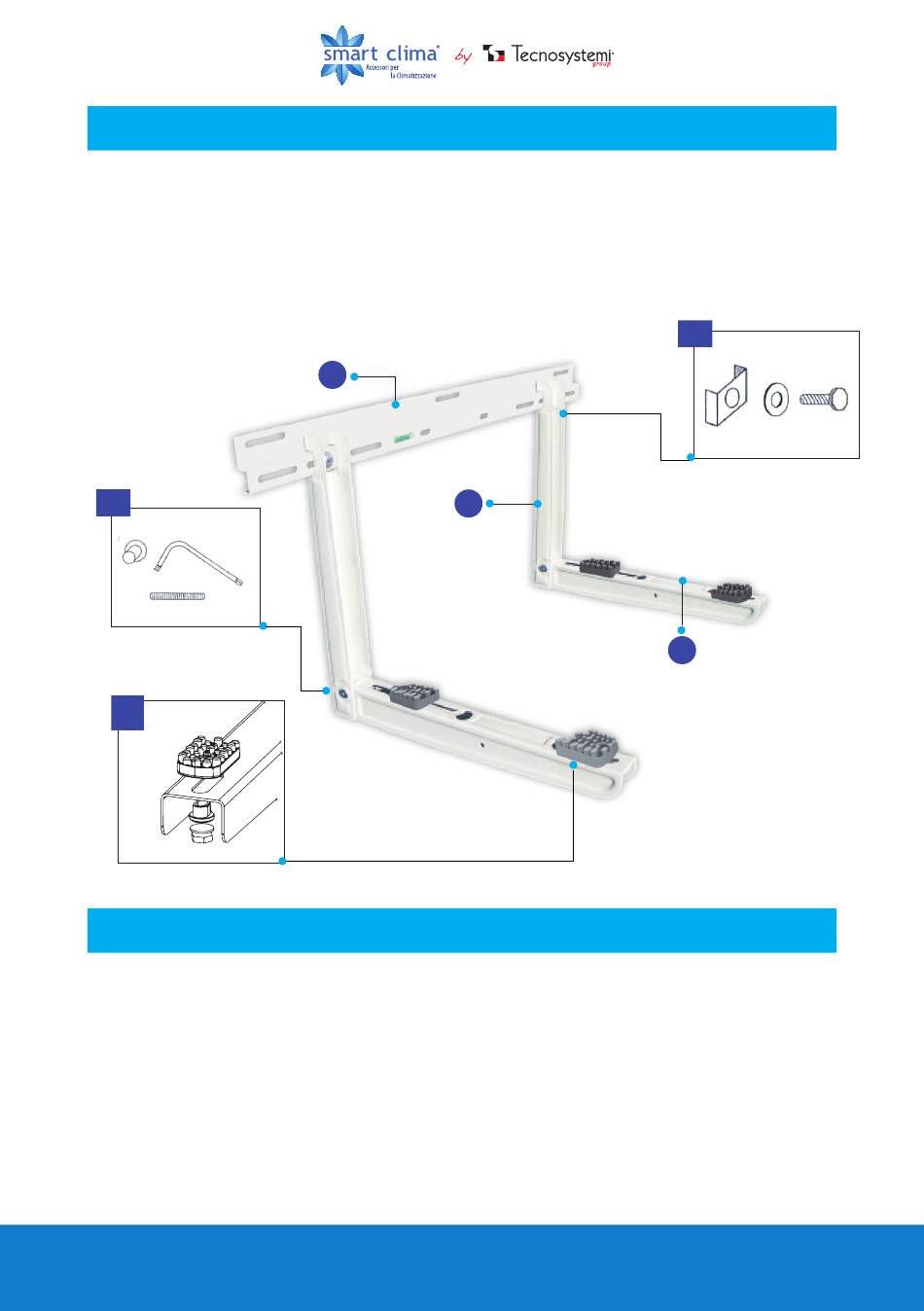

1. To fix the arm (1) to the bracket (2), use the supplied threaded bars and Allen inserts (A)
2. To fix the arm to the bar (3) use the supplied 8 x 35 bolts, plates and washers 8 x 24 (B)
3. Fix the "SOFT" anti-vibration mounts (C) in the fan part for max. of 60kg and "HARD" vibration
dampers under the engine part for a max. of 120 kg
A
C

FEATURES

• ELECTRO-GALVANISED SHEET METAL
• BRACKET COMES PRE-ASSEMBLED
• FITTED WITH SPIRIT LEVEL
• ADJUSTABLE ARTICULATED REAR FEET
• EXTERIOR-GRADE POLYESTER POWDER COATING
• DESIGNED TO ACCOMMODATE TRAY
• ANTI-VIBRATION MOUNTS PROVIDED
• ANCHOR BOLTS
• DESIGNED TO ACCOMMODATE ELECTRIC HOIST
