Goobay 58401 User Manual

Goobay 58401 User Manual

Lightning / usb-c pd charging kit 20w

Advertisement

Quick Links

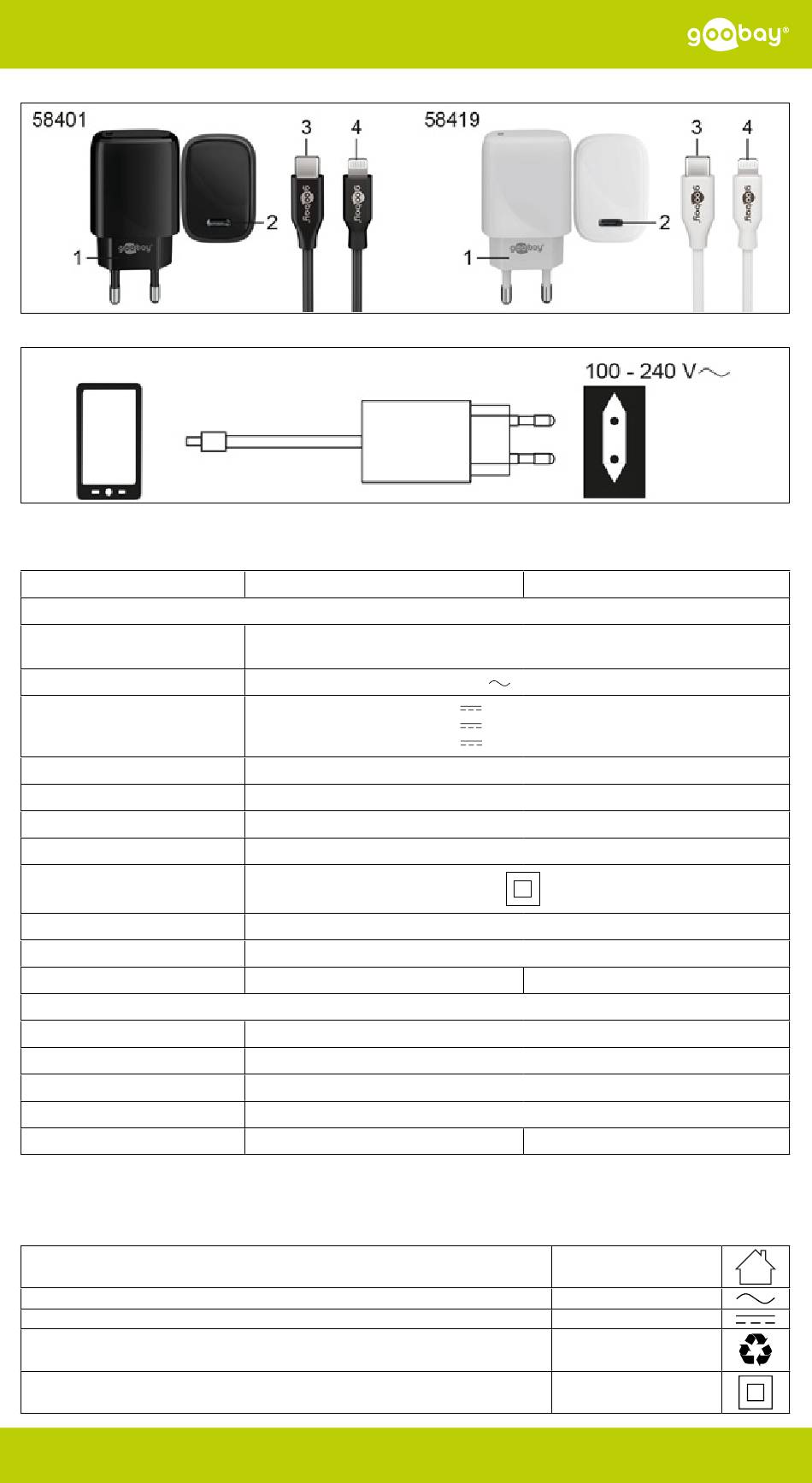

Fig. 1.
Fig. 2.
Technische Daten / Specifications / Spécifications / Specifiche / Datos técnicos /
Technische gegevens / Tekniske data / Tekniska data / Technická data / Dane techniczne
Article number
Connections
Input
Output USB-C™ PD
Average active efficiency
Efficiency at low load (10 %)
No-load power consumption
Protection level
Protection class
Dimensions
Weight
Colour
Connections
Max. data transmission rate
Cable length
Weight
Colour
Verwendete Symbole / Symbols used / Symboles utilisés / Simboli utilizzati /
Símbolos utilizados / Gebruikte symbolen / Brugte symboler / Använda symboler /
Použité symboly / Stosowane symbole
For indoor use only
Alternating current
Direct current
Recycling
Class II equipment
REV2021-10-14
Änderungen und Irrtümer vorbehalten.
V1.0aw
58401
Charger
Euro plug (Type C, CEE 7/16),
USB-C™ PD (Power Delivery) socket
100-240 V
5.0 V
, 3.0 A, 15.0 W max. or
9.0 V
, 2.22 A, 20.0 W max. or
12.0 V
, 1.67 A, 20.0 W max.
83.9 %
80.3 %
0.04 W
IP20
II
80 x 42.7 x 30.3 mm
51 g
black
Charging cable
USB-C™ plug, Apple Lightning plug
480 Mbit/s
1 m
20 g
black
- 1 -
Pillmannstraße 12 | 38112 Braunschweig | Germany
58401, 58419
58419
, 50/60 Hz, 0.5 A
white
white
IEC 60417- 5957
IEC 60417- 5032
IEC 60417- 5031
ISO 7001 - PI PF 066
IEC 60417- 5172
Goobay® by Wentronic GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 58401 and is the answer not in the manual?

Questions and answers

Summary of Contents for Goobay 58401

  • Page 1 IEC 60417- 5032 Direct current IEC 60417- 5031 Recycling ISO 7001 - PI PF 066 Class II equipment IEC 60417- 5172 REV2021-10-14 Änderungen und Irrtümer vorbehalten. Goobay® by Wentronic GmbH - 1 - V1.0aw Pillmannstraße 12 | 38112 Braunschweig | Germany...
  • Page 2: Eu-Konformitätserklärung

    DE4535302615620 Siehe Fig. 1. 1 Eurostecker 8 EU-Konformitätserklärung 2 USB-C™-PD-Buchse Mit dem CE-Zeichen erklärt Goobay®, eine re- 3 USB-C™-Stecker gistrierte Marke der Wentronic GmbH, dass 4 Apple Lightning Stecker das Produkt die grundlegenden Anforderungen und Richtlinien der europäischen Bestimmungen erfüllt.
  • Page 3: Description And Function

    8 EU Declaration of conformity 2.2 Scope of delivery USB-C™ PD (Power Delivery) Fast charger, Lightning / With the CE sign Goobay®, a registered trade- USB-C™ charging and sync cable, User Manual mark of the Wentronic GmbH ensures, that the product is conformed to the basic European 2.3 Operating Elements...
  • Page 4: Description Et Fonction

    Voir la Fig. 1. 8 Déclaration UE de conformité 1 Fiche Euro 2 Prise USB-C™ PD En utilisant le marquage CE, Goobay®, nom 3 Fiche USB-C™ commercial déposé de Wentronic GmbH, dé- 4 Fiche Apple Lightning clare que l‘appareil est conforme aux conditi- ons et directives de base de la réglementation européenne.
  • Page 5: Uso Previsto

    Set de carga Lightning / USB-C™ PD 20W 8 Dichiarazione di conformità UE 2.3 Elementi di comando Vedi Fig. 1. Usando il marchio CE, Goobay®, un marchio 1 Spina Euro registrato della Wentronic GmbH, dichiarache il 2 Presa USB-C™ PD dispositivo è...
  • Page 6: Beschrijving En Werking

    Dit product mag alleen worden gebruikt in droge binnenruimten. Het niet in Al utilizar la marca CE, Goobay®, una marca acht nemen en niet opvolgen van deze instructies en veilig- registrada de Wentronic GmbH, declara que...
  • Page 7: Eu-Conformiteitsverklaring

    1. Kontrollér, at du har modtaget alle dele, og at de er in- 8 EU-conformiteitsverklaring takte. Met het CE-teken verklaart Goobay®, een ge- 2. Sammenlign de tekniske data for alle de apparater, som registreerd handelsmerk van Wentronic GmbH, skal anvendes, og forvis dig om, at de er kompatible.
  • Page 8: Eu-Overensstemmelseserklæring

    4 Förberedelse Ved at anvende CE-mærkningen erklærer 1. Kontrollera att leveransen är fullständig och inte är ska- Goobay®, som er et registreret mærkenavn dad. tilhørende Wentronic GmbH, at udstyret over- 2. Jämför tekniska data för alla produkter som ska använ- holder de europæiske regulativers mindstekrav og retnings-...
  • Page 9: Pokyny K Likvidaci

    1. Zkontrolujte úplnost a neporušenost obsahu dodávky. Genom att använda CE-märkningen deklarerar 2. Porovnejte technická data všech používaných přístrojů Goobay®, ett registrerat varumärke för Wen- a zajistěte kompatibilitu. tronic GmbH, att enheten uppfyller de grund- läggande kraven och riktlinjerna enligt Europeiska bestäm- 5 Připojení...
  • Page 10: Zasady Bezpieczeństwa

    3 Zastosowanie zgodne z przeznac- 8 Deklaracja zgodności z normami zeniem Użytkowanie w sposób inny niż opisano Za pomocą oznakowania CE Goobay®, zare- w rozdziałach „Opis i funkcje” oraz „Wskazówki jestrowana marka Wentronic GmbH, deklaruje, dotyczące bezpieczeństwa” jest niedopuszczalne. że produkt spełnia zasadnicze wymagania Niniejszy produkt może być...
