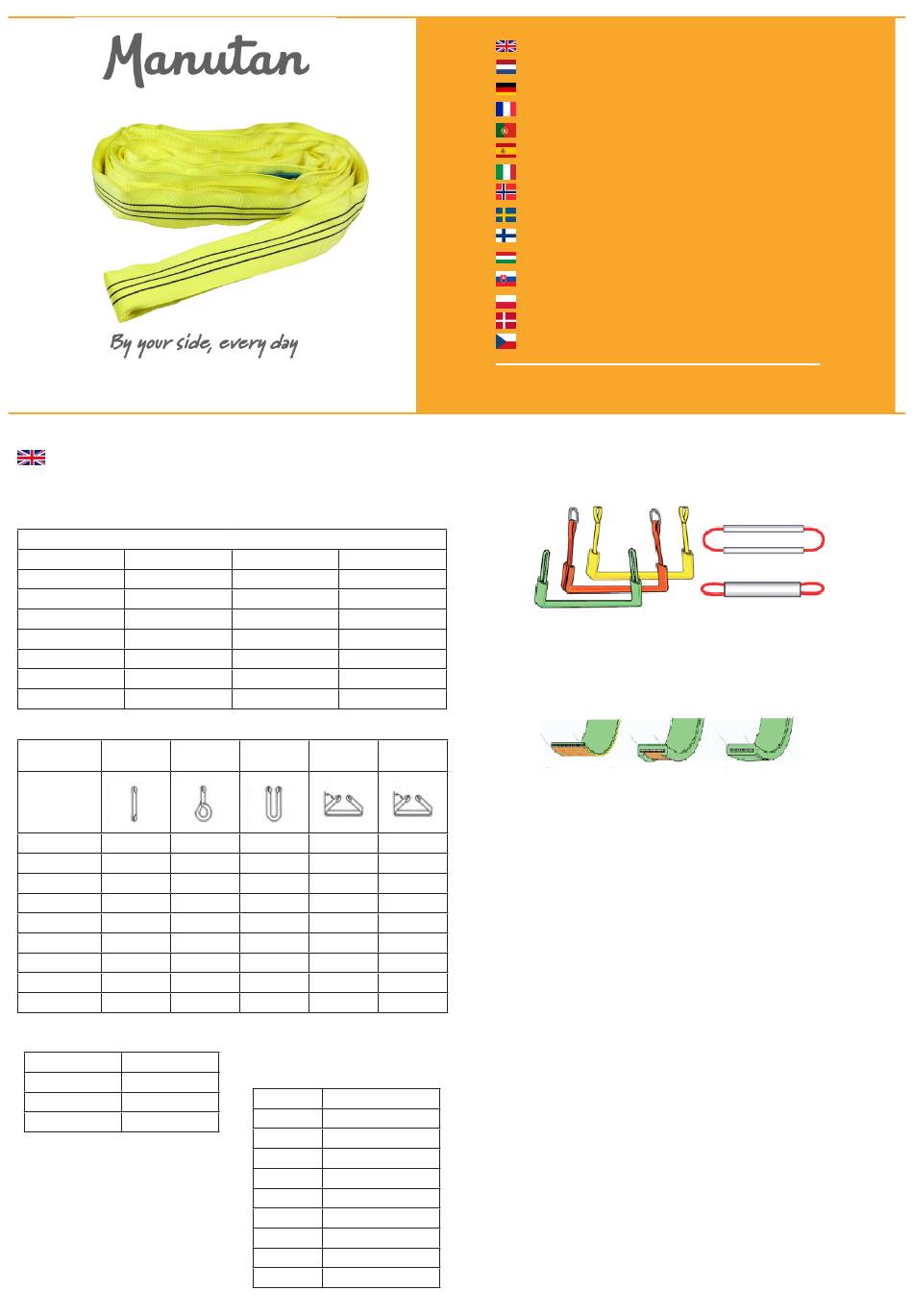

Manutan A148140 User Manual

A148140 - A148125 - A148137
EN
TEXTILES SLINGS
Technical information
Product code A148140
Description Flat sling 3000kg
Color Yellow
Safe Working Load 3000kg
Effective length 2m
Material PES
Width
90mm(±3%)
Safety Factor 7
WORKING LOAD LIMIT - Safety Factor
Straigt
Webbing colour
(Tons)
Slinging method
1 - Purple 1.0
2 - Creen 2.0
3 - Yellow 3.0
4 - Grey 4.0
5 - Red 5.0
6 - Brown 6.0
8 - Blue 8.0
10 - Orange 10.0
12 - Orange 12.0
Identification - Label
Colour: Material:
Blue Polyester
Green Polyamide
Brown Polypropylene
It contains:
• the CMU
• The material used and the accessories class
(buckles...)
• The nominal length in metres
• The Manufacturer's name
• The traceability code
• The Standard number
• The EC marking

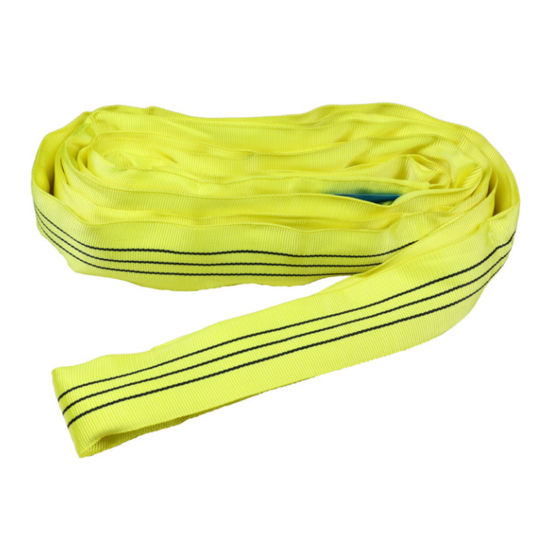

Round sling
A148125
Flat sling 3000kg Flat sling 3000kg
Yellow
3000kg
3m
PES
90mm(±3%)
7
Choker Basket Basket
(Tons) (Tons) w/45°(Tons)
0.8 2.0 1.8
1.6 4.0 3.6
2.4 6.0 5.4
3.2 8.0 7.2
4.0 10.0 9.0
4.8 12.0 10.8
6.4 16.0 14.4
8.0 20.0 18.0
9.6 24.0 21.6
Identification of the textile sling
The colour of the textile sling or strap (colour
issuing from the harmonised standard), varies
according to the Maximum Working Load:
Colour Corresponding capacity
Purple
Green
Yellow
Grey
Red
Brown
Blue
Orange
Orange More than 10,000 kg.
EN
NL
DE
FR
PT
ES
IT
NO
SV
FI
HU
SK
PL
DA
CS
PROTECT THE SLING AGAINST SHARP EDGES
• For textile slings, a strap can be used with:
A148137
Yellow
3000kg
4m
PES
90mm(±3%)
7
Basket
w/90°(Tons)
NB:
The lifting system is not guaranteed to work properly if these VERY IMPORTANT INSTRUCTIONS are not
1.4
followed. Serious accidents can lead to injuries, even fatalities.
2.8
General user instructions
• Lifting operations must be done by competent persons only.
4.2
• Use of the round slings and lifting straps for any purpose other than a lifting operation is forbidden.
• Use in chemical environments, like acid or alkaline solutions for example, must be avoided!
5.6
• Use of the round slings and lifting straps is only authorised within certain temperature ranges: PES/PA
from -30° C to +100° C, PP from -30° C to +80° C.
7.0
• Remove from service all round slings and lifting straps with illegible or missing labels. Lack of safety
8.4
instructions can lead to incorrect use.
• The round slings and lifting straps must not be stretched over sharp angles or sharp edges because
11.2
they could be cut.
• Opening the strap loop to an angle of over 20º is strictly forbidden.
14.0
Remove the sling from service in the event of:
16.8
• Localised deterioration of the strap, other than general wear
• Transversal or longitudinal cut, damage to edges by cutting or heating, cutting of seams or buckles
• Cutting of the sling sheath revealing the carrying threads
• Chemical attack causing the material to weaken or soften (indicated by a flaking of the surface of the
sheath, torn off or removed by rubbing)
• Damage due to heat or friction, indicated by the glossy appearance of the fibres
• Deformation of the end accessory
• Absence of identification plate or label
• Sun-sensitive textile slings can be damaged by ultra-violet rays and therefore be weakened without
1,000 kg altering their appearance; be careful with slings often exposed to sunlight.
2,000 kg HANDLING / LIFTING THE LOAD
• Before handling, identify the route and set-down point,; clear gangways;
3,000 kg
• Make sure that no tool or object has been left on the load and that it will not "fly over" anyone when
4,000 kg travelling!
• Check that the rise, fall and transfer of the load will be done freely and safely.
5,000 kg
• During the operation, the sling operator-driver must be positioned so as to accompany the load. He
mustn't move backwards!
6,000 kg
• If the device is driven by another operator, the sling operator informs the driver what movements he
must execute: he must move within the driver's field of vision at all times; communication can be
8,000 kg
done with a suitable sound system or by command gestures that both of them perfectly understand.
10,000 kg • The load must be lifted vertically (pulling it at an oblique angle is dangerous!) , it must be moved at
a moderate pace and without stops and starts, staying close to the ground, high enough above it to
avoid obstacles and avoiding swaying the load!
• No worker must be under the load and the load must never be passed over the heads of staff.
