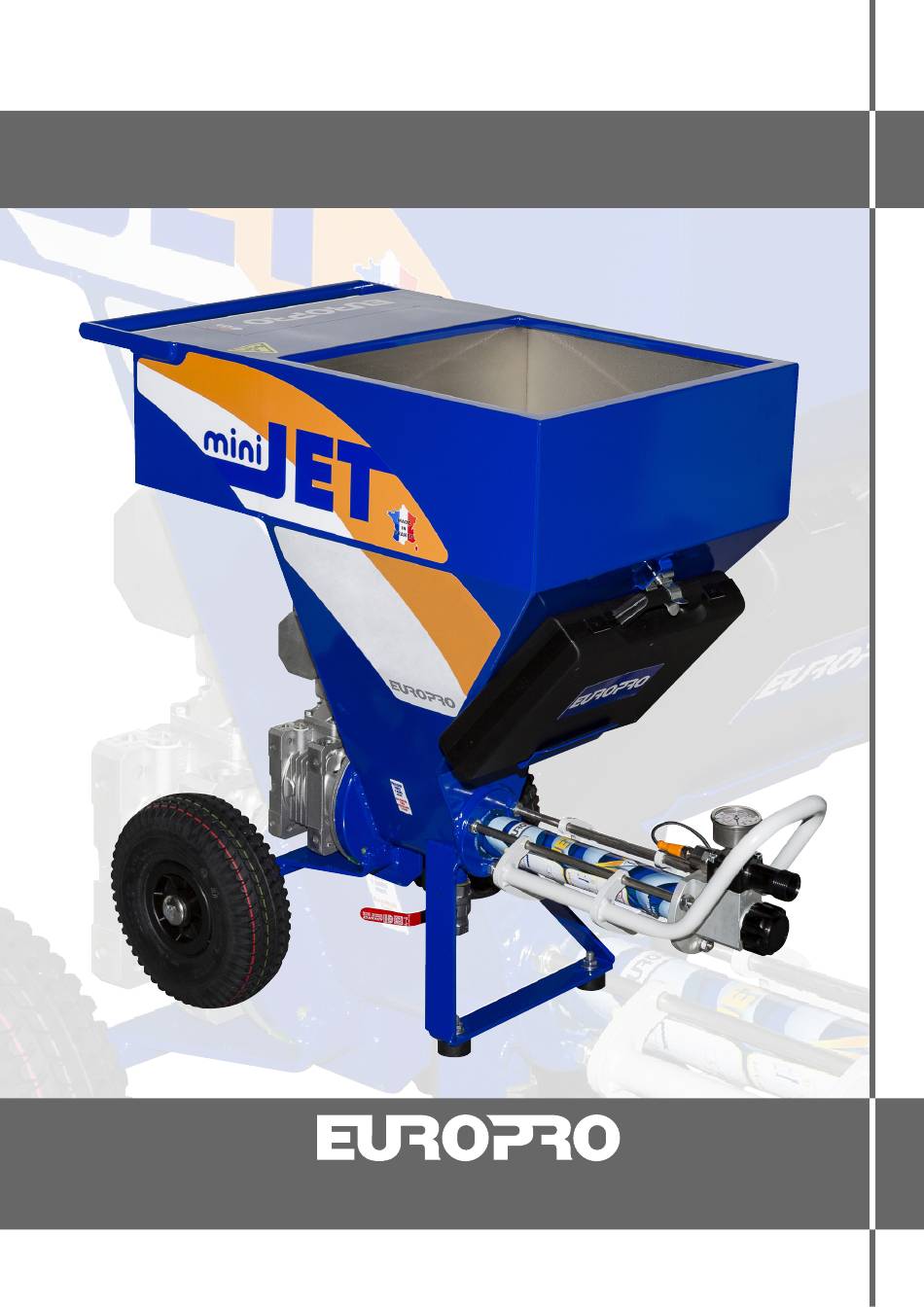

User manual
Minijet 80 - 110 V
Réf. 30981
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
Edition of 23/12/2021
More information on www.euromair.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Minijet 80 110 V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EUROPRO Minijet 80 110 V

Summary of Contents for EUROPRO Minijet 80 110 V

  • Page 1 User manual Minijet 80 - 110 V Réf. 30981 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 Edition of 23/12/2021 More information on www.euromair.com...

  • Page 2: Table Of Contents

    SUMMARY You just acquired one of our machines and all the team of Europe Projection thanks confidence 1. USER MANUAL ............. p. 3 have granted 1.1. Importance of the manual .........p. 3 Manufacturer of professional 1.2. Receivers of the manual ..........p. 3 equipments for paint and fillers, we have put our know-how for 25 years...

  • Page 3: User Manual

    1. USER MANUAL 1.1. IMPORTANCE OF THE MANUAL This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning and maintenance of the device and also the safety instructions you need to observe. Read carefully all the working and safety instructions and the warnings included in this manual before starting your machine.

  • Page 4: Warning

    2. WARNING 2.1. SAFETY Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in this manual can cause death or serious injuries. Read carefully all the working and safety instructions and the warnings contained in this manual before starting your machine.
  • Page 5 2. WARNING (continued) 2.1. SAFETY (continued) WORKSPACE • Maintain the workspace clean and clear. • Ambient operating temperature must be from 5°C and 35°C. • Do not use the equipment in a potentially explosive area. • Do not place any potentially inflammable objects in close proximity to the machine. •...

  • Page 6: Electric Connection

    2. WARNING (continued) 2.2. ELECTRIC CONNECTION The electric connection of the machine must be on a 32A - 110V plug with a differential circuit breaker. Before any intervention on the machine, make sure that every energy supply is cut (air and electricity).

  • Page 7: Your Machine

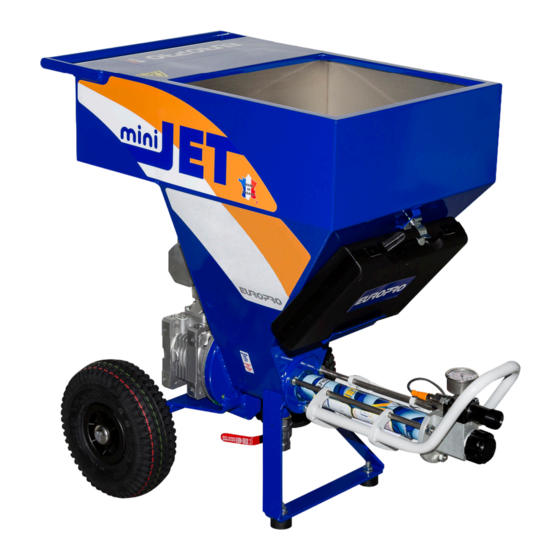

    3. YOUR MACHINE 3.1. DESCRIPTION MINIJET enables application of all types of pasty film fillers. It is a compact, quiet and light machine. It can be moved up and down stairs by only one person, thanks to its trolley-type chassis. Cleaning can be made rapidly, only at the very end of the poject and the pump can be changed in 5 minutes directly on the construction site..

  • Page 8: Identification Of The Components

    3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS Product outlet Filter-holder Pump Drain valve Spray-gun Nozzle Manometer Control panel (see next page) User manual - Minijet 80 -110 V 202007-469B-ENG...
  • Page 9 3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS (continued) Under voltage button Speed / pressure variation Run / stop / reverse mode button Droplet kit connection plug Emergency stop 202007-469B-ENG User manual - Minijet 80 -110 V...

  • Page 10: Use Of The Machine

    4. USE OF THE MACHINE 4.1. PREREQUISITES • The electric connection has to be 110 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m maximum, completely unreeled. • The selection of the working mode is done by pushing the (K) button. •...

  • Page 11: Starting Up - Use Of Plaster/Paint

    4. USE OF THE MACHINE (continued) 4.2. STARTING UP - USE OF PLASTER/PAINT Put soapy water into the tank. Press the button (I) to switch the machine on. Open the spray-gun, without nozzle nor nozzle holder. Set the pump speed to 3 using the variator (J). Turn the button (K) to the RUN position, the screw at the bottom of the tank shall turn (if it does not turn, see procedure 4.1.) When the water comes out of the spray-gun, turn the button (K) to the STOP position to stop the...

  • Page 12: Starting Up - Use Of Droplet

    4. USE OF THE MACHINE (continued) 4.3. STARTING UP - USE OF DROPLET For droplet applications, it is imperative to use a suitable compressor. If in doubt about which compressor to use, contact our services: +33 4 42 29 08 96. Put soapy water into the tank.

  • Page 13: Defects And Remedies

    5. DEFECTS AND REMEDIES Defects Remedies • Light (I) does not light up. • Check the power supply. • After a prolonged shutdown, the pump may be blocked. • The pump is blocked. See procedure 4.1. • Check that the setting is strong enough. •...

  • Page 14: Cleaning Procedure

    6. CLEANING PROCEDURE 6.1. AFTER PLASTER/PAINT USE Before unscrewing the hose, make sure it is not under pressure anymore. Remove the nozzle and place it in a bucket of water. With the spray-gun open and button (J) in position 3, turn button (K) to the RUN position to empty the tank to the maximum.

  • Page 15: After Droplet Use

    6. CLEANING PROCEDURE 6.2. AFTER DROPLET USE Before unscrewing the hose, make sure it is not under pressure anymore. Remove the nozzle and place it in a bucket of water. With the lance open and button (J) in position 3, turn button (K) to the RUN position to empty the tank to the maximum.
  • Page 16 7. DECLARATION OF CONFORMITY THE MANUFACTURER : EUROPE PROJECTION 228, avenue Olivier Perroy 13790 ROUSSET DECLARES THAT THE EQUIPMENT DESIGNATED BELOW: Trademark : EUROPE PROJECTION Type : Atomizer Model : MINIJET 80 - 110 V COMPLIES WITH THE DIRECTIVES: • Machines 2006/42/CE •...

  • Page 17: Spray-Gun Declaration Of Conformity

    8. SPRAY-GUN DECLARATION OF CONFORMITY THE MANUFACTURER : EUROPE PROJECTION 228, avenue Olivier Perroy 13790 ROUSSET DECLARES THAT THE EQUIPMENT DESIGNATED BELOW: Trademark: EUROPE PROJECTION Model: Spray-gun Working pressure: 19 MPa COMPLIES WITH THE DIRECTIVE: • Machines 2006/42/CE ROUSSET, JANUARY 20th 2021 Patrick BOREL President EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET...

  • Page 18: Warranty Conditions

    9. WARRANTY CONDITIONS Each equipment is delivered inspected and tested. We exclude any warranty for visible defects, not notified by the customer within 48 hours. The equipment sold is guaranteed during the manufacturer’s warranty from the date of purchase, as specified on the original proof of purchase, and under the conditions defined by the manufacturer.
  • Page 19 9. WARRANTY CONDITIONS (continued) In all cases, our liability shall be limited to the amount paid by the customer for non-compliant equipment. Any legal action of the customer against us relating to the warranty of the equipment shall be barred 1 year after the date of discovery of the defect.
  • Page 20 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 More information on www.euromair.com User manual - Minijet 80 -110 V 202007-469B-ENG...
