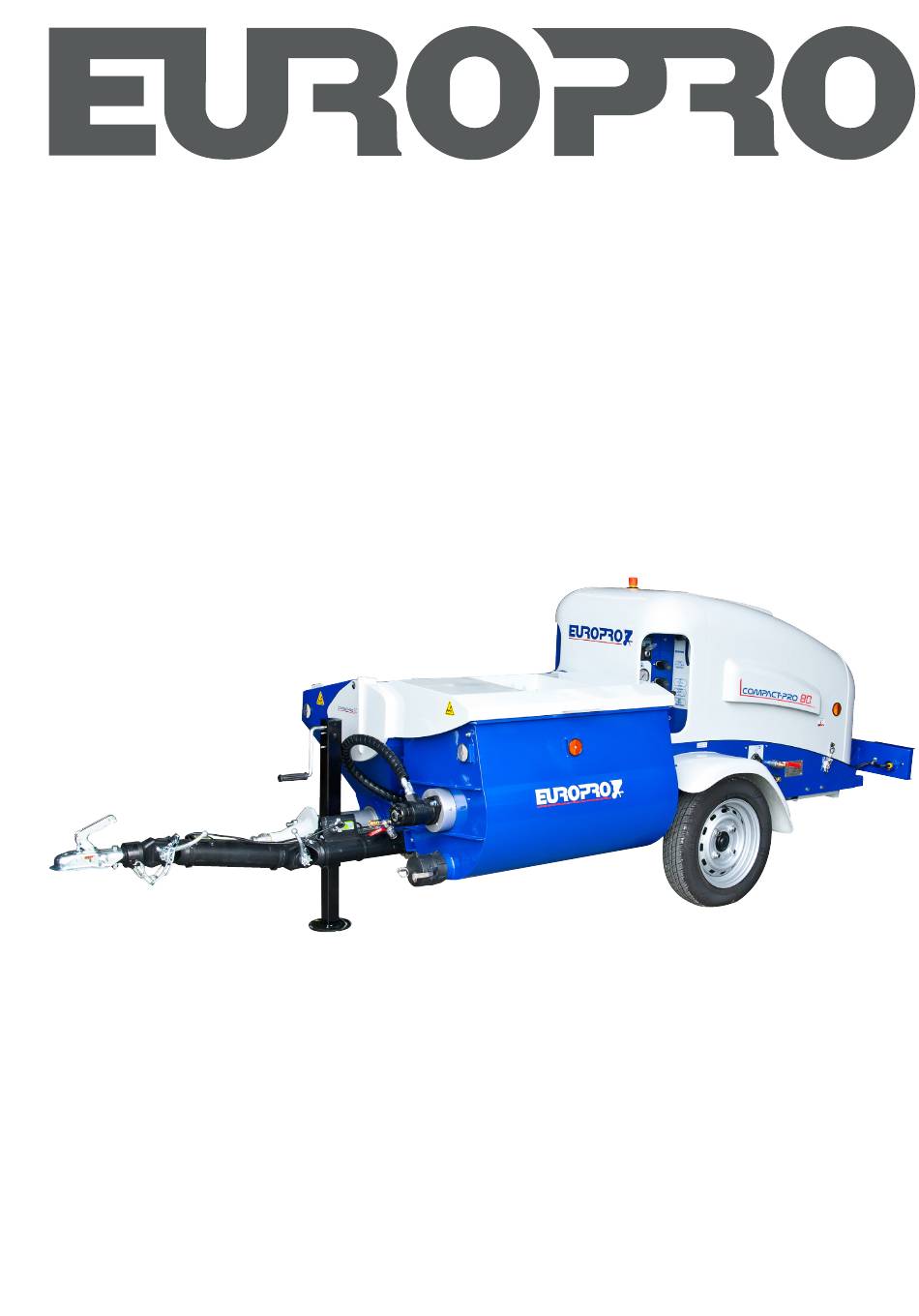

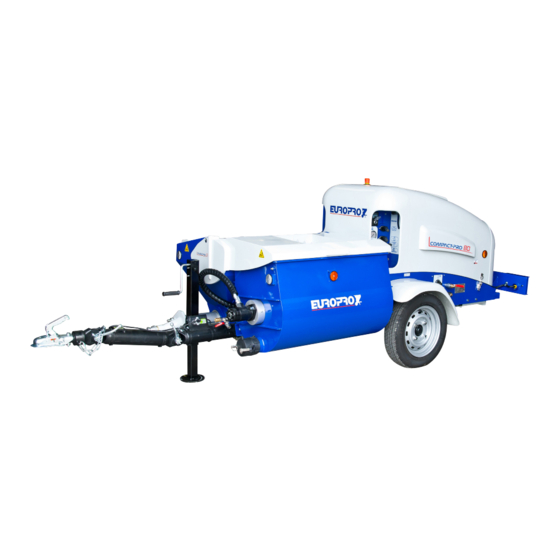

USER MANUAL
COMPACT-PRO 60 & 80
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET
Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
Edition of 05/02/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPACT-PRO 60 and is the answer not in the manual?

Questions and answers

Related Manuals for EUROPRO COMPACT-PRO 60

Summary of Contents for EUROPRO COMPACT-PRO 60

  • Page 1 USER MANUAL COMPACT-PRO 60 & 80 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z...
  • Page 2 User manual - COMPACT-PRO 60 & 80 201902-340-ENG...

  • Page 3: Table Of Contents

    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p .35 201902-340-ENG User manual - COMPACT-PRO 60 & 80...

  • Page 4: Introduction

    Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z User manual - COMPACT-PRO 60 & 80 201902-340-ENG...

  • Page 5: User Manual

    - people in charge of the use of the machine - people in charge of the cleaning and maintenance of the machine - people in charge of the final destruction of the machine 201902-340-ENG User manual - COMPACT-PRO 60 & 80...

  • Page 6: Warning

    For any replacement of parts, only use genuine parts . • Do not modify the machine . • Do not cut or dismantle the protection grids . • Do not open the electric box . User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 7 . The storage of a not greased pump can damage it seriously . IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL MODIFICATION WITHOUT ADVANCED NOTICE. 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 8 - Put the command handles in central position . - Rearm emergency stop . - Command panel lamps must be lighted-up . - Engage the starter with the contact key . - Resume projection procedure . User manual - COMPACT-PRO 60 & 80 201902-340-ENG...

  • Page 9: Transport

    . It is imperative to collide this cable on the harness of the vehicle. Compact-Pro 60 & 80 are not a trailers intended for transport. It is formally forbidden to transport people, filler...

  • Page 10: Your Machine

    4. YOUR MACHINE 4.1. DESCRIPTION Compact-Pro 60 & 80 are equipped with diesel engine with cooling liquid which pulls a double pump with gearings which supplies the hydraulic flows necessary for the equipment. The compressor of 400 L/min, 4 bar, is positioned on a deck allowing an easy regulation of the tension of the belt of training .

  • Page 11: Identification Of The Components

    11 Pressure control manometer Electrical circuit breaker 12 Pump outlet Hopper bearing lubricator 13 Hood clips Motor bearing lubricator 14 Emergency stop Mixer bearing lubricator 15 Air valve Mixer grid bearing lubricator 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 12 Lowering: right position with automatic turn-back to initial position High pressure washer Start (right) / Stop (left) handle Command handle for mixer rotation: Backward position: right position maintained Stop : central position Forward position: left position maintained User manual - COMPACT-PRO 60 & 80 201902-340-ENG...

  • Page 13: Use Of The Machine

    In some cases, it will be necessary to use a pump that gives a higher pressure to compensate this loss. Whenever possible, a dilution of the filler and a higher pump pressure will permit a better discharge in the hoses. 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 14 Caution, an excessively low speed of the petrol motor also brings a low air flow-rate. The command handle of the screw rotation has a preferable rotation direction caracterized by a maintained position . The reverse is possible by maintaining manually the handle on left position . User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 15 Under pressure outlet plug Think about cleaning very regularly your aspiration filter (at least once a week) to avoid any pump cavitation. The filter is located right behind the water inlet coupling. 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 16 For the machine transport, the mixer bin must be in low position . So, once the cleaning is over, bring back the bin on the rubber pads in low position and remove the drain plugs . User manual - COMPACT-PRO 60 & 80 201902-340-ENG...

  • Page 17: Water Doser

    One push of the button "+WATER" (B3) provokes a water flow as long as the button is kept pressed. The display (A1) will add the water quantity to the one previously shown . This function is only possible outside of the automatic water dosing seen above . 201902-340-ENG User manual - COMPACT-PRO 60 & 80...

  • Page 18: Maintenance

    To insure you a sustainable running of your machine, we invite you to consult your dealer for any maintenance intervention. He will carefully do the operations and will control the differents points we recommend. User manual - COMPACT-PRO 60 & 80 201902-340-ENG...

  • Page 19: Failures And Remedies

    The safety relay is out of order . Contact your technical service . The oil pressure probe of the Contact your technical service . motor is out of order . 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 20 . Check the good running of the safety card Electric supply problem See problem n° 1 Hydraulic problem Contact your technical service User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 21 The hose must not be pinched Check your water supply and the water valve must be open . Clean the supply filter before any Check the filter clogging Contact the nearest Hydraulic problem dealer . 201902-340-ENG User manual - COMPACT-PRO 60 & 80...

  • Page 22: Safety Card Running

    . lance . Air problem Check the flow meter state. Dismantle the flow meter to clean it The flow meter is out of order Contact your technical service . User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 23 The safety sensor of the mixer grid Contact your technical service does not work . 8.4. THE 2 RED LAMPS ARE LIGHTED-UP Failure To check Remedy See 8 .2 and 8 .3 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 24 Battery is out of order or has a lack of the battery must be changed . Pay charge attention to polarity Electric supply circuit must be cut Contact your technical service somewhere Protection fuses of the card Change the defective fuse User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 25 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 26 User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 27 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 28 User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 29 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 30 User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 31 201902-340-ENG User manual - COMPACT-PRO 60 & 80...
  • Page 32 User manual - COMPACT-PRO 60 & 80 201902-340-ENG...

  • Page 33: Declaration Of Conformity

    Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z 201902-340-ENG User manual - COMPACT-PRO 60 & 80...

  • Page 34: Warranty

    Any action of the customer against us relative to the warranty of the equipments will be prescribed to the deadline of 1 year from the day of the discovery of the cause of the action . User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
  • Page 35 The guarantee does not cover parts which, because of their specific use, are subject to wear and tear. If the identified defects could not be attributed to our liability, costs will be charged to the buyer. MODEL : COMPACT-PRO 60 or 80 spraying machine SERIAL NUMBER :...
  • Page 36 Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z User manual - COMPACT-PRO 60 & 80 201902-340-ENG...
