User manual Eurospray S & S mini Réf. 51100 / 51150 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 Edition of 30/09/2023 More information on www.euromair.com...
- people in charge of the use of the machine - people in charge of the cleaning and maintenance of the machine - people in charge of the final destruction of the machine 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
For any replacement of parts, only use genuine parts. • Do not modify the machine. • Do not cut or dismantle the protection grids. • Do not open the electric box. User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
Page 5
The storage of a not greased pump can damage it seriously. IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL MODIFICATION WITHOUT ADVANCED NOTICE. 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees and directed to the most appropriate processing channels. For any further information, please contact our hotline +33 4 42 29 08 96 or conseil@euromair.com. User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
- a 100 mL bottle of oil for piston pump Delivered with - a case containing : • a Ø3 Allen key • a 17/19 open-end spanner • a 19/22 open-end spanner 202309-668-ENG User manual - Eurospray S / Eurospray S mini...

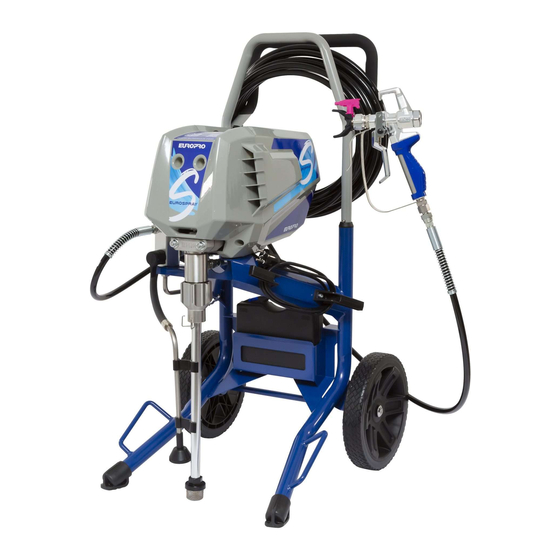

3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS On/off switch Control panel Product suction rod Return hose Power cable Product outlet connector By-pass valve Pump filter Pump lubrication slot Pump removal nuts User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
Page 9
3.3. IDENTIFICATION OF THE COMPONENTS (continued) On/off switch Control panel Product suction rod Return hose Power cable Product outlet connector By-pass valve Pump filter Pump lubrication slot Pump removal nuts Bucket support 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
Page 10
3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS (continued) Trigger Trigger locking pin Grip filter Product intlet connector Trigger protection Tip support Tip gasket Tip seat User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
Avoid using masking tape that is too strong on sensitive areas (wallpaper, painted surfaces) to avoid damaging them when the tape is removed. 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
Page 12
Carry out a pressure relief (see next page) before this operation. Depending on the product to be sprayed, it may be necessary to change the size of the tip and/or the grip filter. User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
The values given in the table above are for guidance only. Dilution must comply with the recommendations on the product packaging and can be adjusted by carrying out spray tests (see Spraying technique section). 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
12. Unlock the spray gun and press the trigger to spray the cardboard until the product comes out evenly. 13. Release the trigger and lock the gun. 14. When the red light on the control panel is on, the machine is ready to work. User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
: • Increase the pressure gradually. • Dilute the product further (in 5% increments, without ever exceeding the dilution limit recommended by the product manufacturer). • Reduce the tip size. 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
Page 16
Move your whole arm, not just your wrist, to limit irregularities. • The spray gun should be perpendicular to the surface to be painted to avoid differences in the thickness of the paint layer. User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
Place the gun in a plastic bag and seal the bag. • Use a little water to lightly dampen the surface of the paint in the bucket. This prevents a layer of dried paint forming. 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
21. Switch on the machine and run it for a few seconds so that the oil flows into the circuit and preserves it until the next time it is used (place a cloth over the connector (F) to prevent the oil dripping onto the floor). User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
In case of an unknown defect or a doubt on the good running of the machine, do not try to repair it by yourself or to dismantle it. Contact an authorized After-Sale Service or our hotline : +33 4 42 29 08 96. 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
Let the equipment cool down. Find a suitable power supply. Check that the pump is not mechanically blocked. Motor overheating. Use a suitable nozzle. Contact After-Sales Service. Contacter le Service Après-Vente. User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
We exclude all liability for indirect damages suffered by the customer, such as, but not limited to, loss of income, turnover, loss of profits, loss of image, of any kind whatever. User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
Page 23
As this principle also applies to batteries, our supplier Parts Holding Europe, or one of its sister companies, remains your contact for your requests (https://www.partsholdingeurope.com/). 202309-668-ENG User manual - Eurospray S / Eurospray S mini...
Page 24
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 More information on www.euromair.com User manual - Eurospray S / Eurospray S mini 202309-668-ENG...
